Renesas Electronics ICM7555 ICM7555IBAZ-T Timer Circuit, 1, 8-Pin SOIC

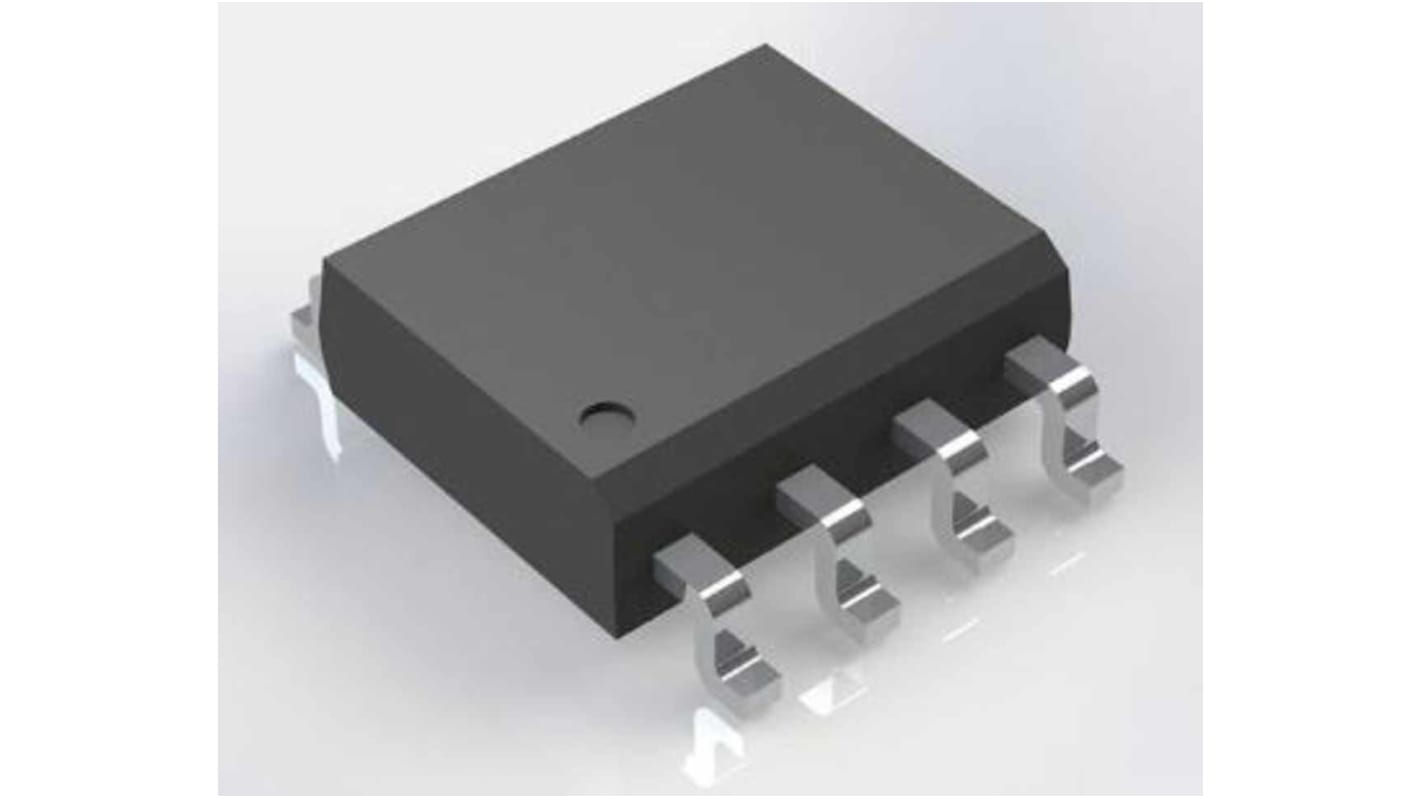

The image is for reference only, please refer to product details and specifications

View all Timer Circuits
Bulk discount available
View bulk pricing options

Subtotal 625 units (supplied on a reel)*

HK$2,380.00

Add to Basket
Select or type quantity
In Stock
  • 1,150 unit(s) ready to ship from another location
  • Plus 2,500 unit(s) shipping from 26 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
625 - 1225HK$3.808
1250 +HK$3.748

*price indicative

Packaging Options:
RS Stock No.:
196-8891P
Mfr. Part No.:
ICM7555IBAZ-T
Manufacturer:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Timer Circuit

Mount Type

Surface

Package Type

SOIC

Number of Internal Timers

1

Pin Count

8

Maximum Supply Voltage

18V

Minimum Supply Voltage

2V

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Length

5mm

Standards/Approvals

RoHS

Height

1.75mm

Automotive Standard

No

Series

ICM7555

The Renesas Electronics' ICM7555 series are CMOS RC timers providing significantly improved performance over the standard

SE/NE 555/556 and 355 timers, while at the same time being direct replacements for those devices in most applications.

Improved parameters include low supply current, wide operating supply voltage range, low Threshold, Trigger and

Reset currents, no crowbarring of the supply current during output transitions, higher frequency performance and no

requirement to decouple Control Voltage for stable operation.

Exact equivalent in most cases for SE/NE 555/556 or TLC555/556

Timing from microseconds through hours

Operates in both astable and monostable modes
