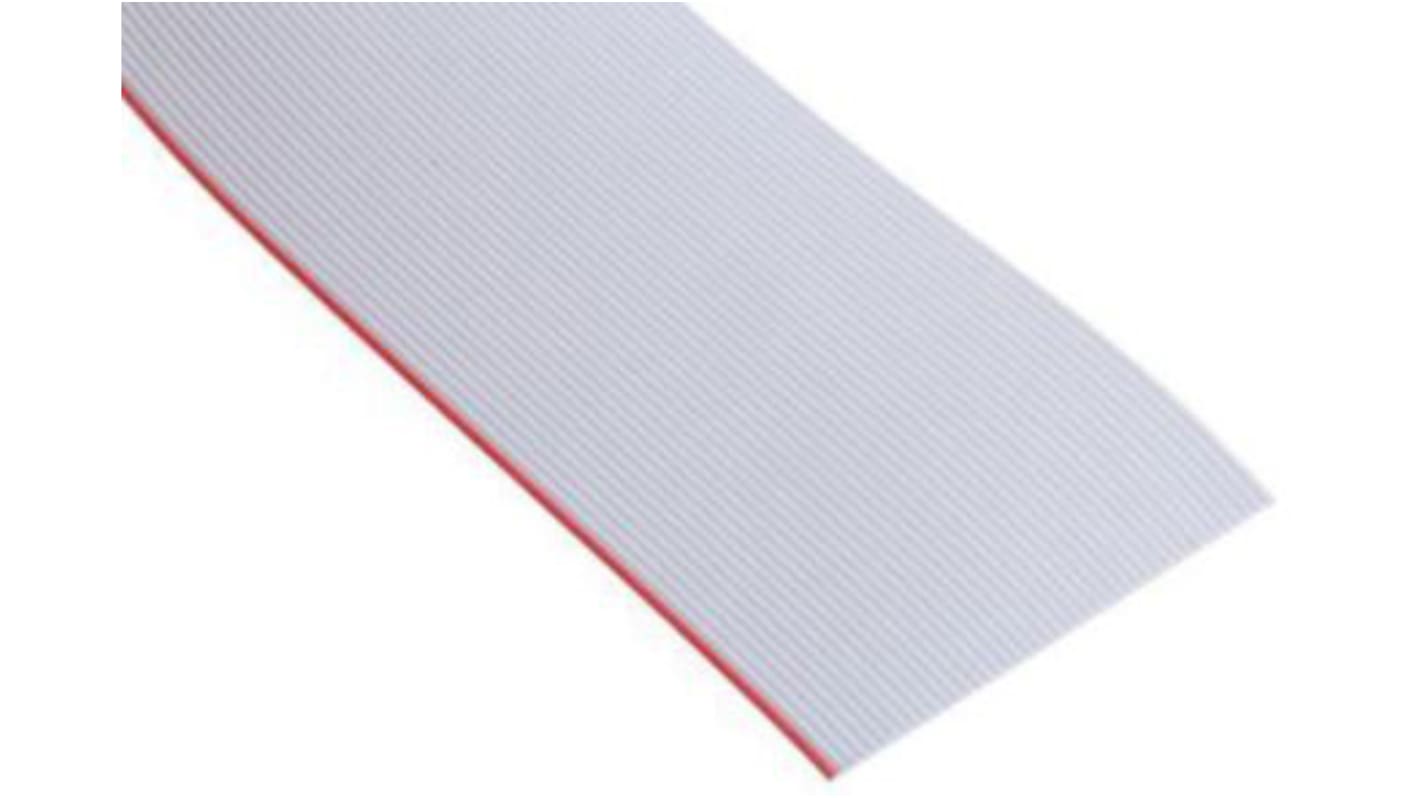

3M 3625 Series Flat Ribbon Cable, 20-Way, 1mm Pitch, 31m Length

RS Stock No.:: 815-8097
Distrelec Article No.:: 301-10-006
Mfr. Part No.:: 3625/20-30M
Manufacturer:: 3M

3M 3625 Series Flat Ribbon Cable, 20-Way, 1mm Pitch, 31m Length

View all Ribbon Cable

Subtotal (1 reel of 30 metres)**

HK$619.60

On back order for despatch 17/08/2025, delivery within 3 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over HK$250.00

Reel(s)	Per Reel	Per Metre**
1 +	HK$619.60	HK$20.653

**price indicative

RS Stock No.:: 815-8097
Distrelec Article No.:: 301-10-006
Mfr. Part No.:: 3625/20-30M
Manufacturer:: 3M

3M 1 mm pitch ribbon cables - 3625 type

From 3M, this 3625 flat ribbon cables has a stranded round conductor with 1 mm wire spacing. The stranded wire of the conductor provides flexibility and extended product life. This ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits

• Flexible
• Space saving
• Robust

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Approvals

UL and CSA

3M 3625 Series Ribbon Cable, Flat, 31m Length - 3625/20-30M

This ribbon cable offers versatile connectivity solutions for electrical applications. With a configuration of 20 ways and a 1mm pitch, it supports efficient mass termination options. The product operates within a temperature range of -20°C to +105°C, ensuring dependable performance across various environments and applications.

Features & Benefits

• 28 AWG stranded conductors enhance flexibility and lifespan
• Unsheathed design simplifies branching or discrete terminations
• Rated for 300V, suitable for high-voltage applications
• Characteristic impedance of 89Ω maintains performance consistency
• RoHS compliant, conforming to environmental regulations
• Meets UL standards for enhanced safety and quality assurance

Applications

• Utilised in electronic devices that require dependable interconnections
• Employed in robotics for precise connectivity solutions
• Effective for prototyping in electronics development

What is the maximum length available for this cable?

The cable comes in standard rolls of 31m, offering sufficient length for various installations.

How can I ensure proper termination of the cable?

It is designed for straightforward mass termination to metric connectors, ensuring secure connections.

What is the significance of the grey sheath colour?

The grey colour identifies the cable type and is standard for numerous interconnect applications, although it does not affect performance.

Is this cable compatible with all metric connectors?

While it is intended for mass termination, compatibility may vary depending on the connector type

it is advisable to consult manufacturer specifications for best results.

Ribbon Cable Information

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	3M
	Ribbon Cable Type	Flat
	Pitch	1mm
	Terminated/Unterminated	Unterminated
	Number of Ways	20
	Screened/Unscreened	Unscreened
	American Wire Gauge	28 AWG
	Series	3625
	Length	31m
	Width	20 mm
	Number of Strands	7
	Maximum Operating Temperature	+105°C
	Sheath Colour	Grey
	Minimum Operating Temperature	-20°C
	Conductor Strand Type	Stranded
	Voltage Rating	300 V
	Size of Strands	36 AWG
	Core Strands	7/36
	Standards Met	RoHS Compliant, UL
	Operating Temperature Range	-20 → +105 °C
	Capacitance	54.5pF/m
	Characteristic Impedance	89 Ω

	Select all
	Brand 3M
	Ribbon Cable Type Flat
	Pitch 1mm
	Terminated/Unterminated Unterminated
	Number of Ways 20
	Screened/Unscreened Unscreened
	American Wire Gauge 28 AWG
	Series 3625
	Length 31m
	Width 20 mm
	Number of Strands 7
	Maximum Operating Temperature +105°C
	Sheath Colour Grey
	Minimum Operating Temperature -20°C
	Conductor Strand Type Stranded
	Voltage Rating 300 V
	Size of Strands 36 AWG
	Core Strands 7/36
	Standards Met RoHS Compliant, UL
	Operating Temperature Range -20 → +105 °C
	Capacitance 54.5pF/m
	Characteristic Impedance 89 Ω
