BGA729N6E6327XTSA1 Infineon RF Amplifier Low Noise 16.3 dB, 6-Pin 1000 MHz TSNP
- RS Stock No.:
- 258-0666
- Mfr. Part No.:
- BGA729N6E6327XTSA1
- Manufacturer:
- Infineon

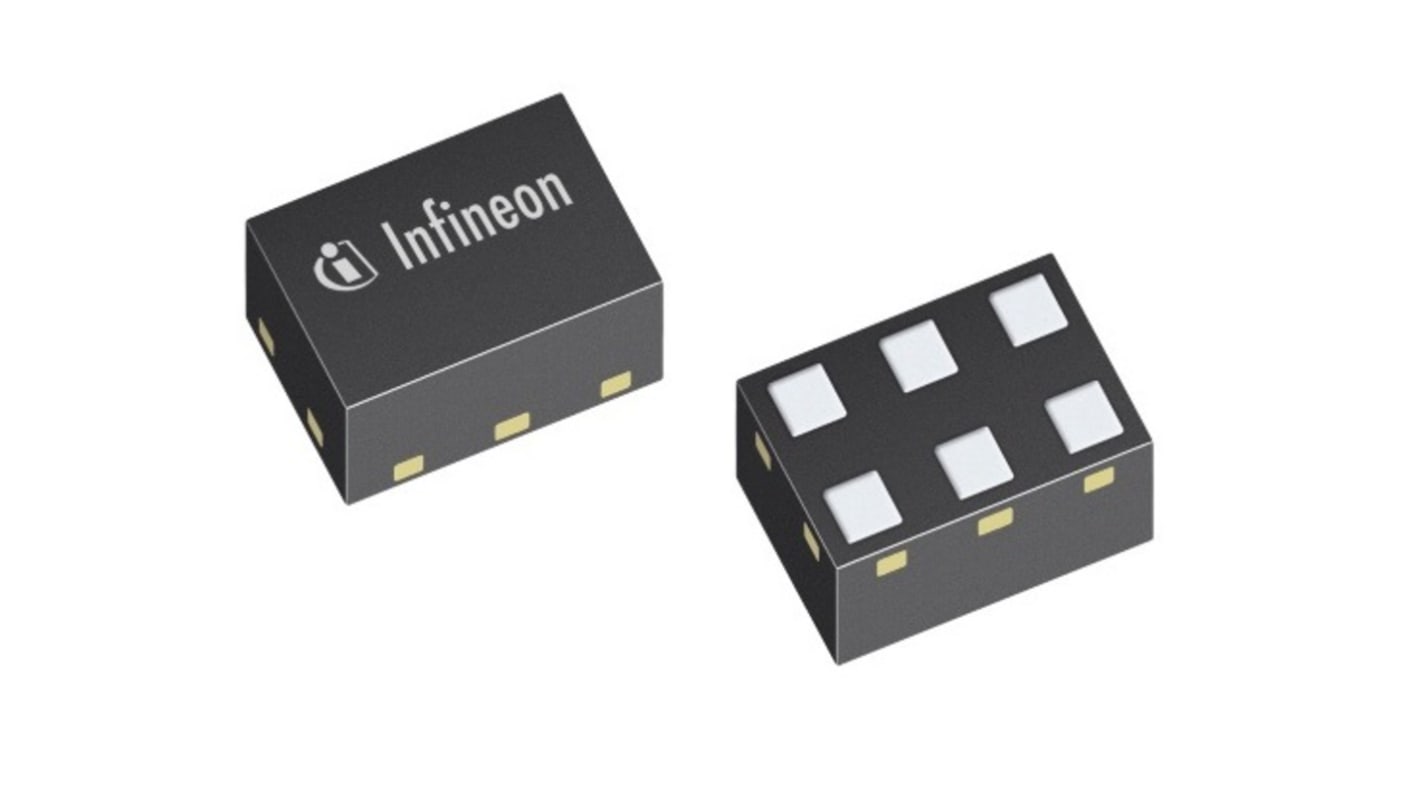

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 pack of 5 units)*
HK$34.00
FREE delivery for orders over HK$250.00
Temporarily out of stock
- Shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | HK$6.80 | HK$34.00 |
| 10 - 95 | HK$5.96 | HK$29.80 |
| 100 - 245 | HK$5.52 | HK$27.60 |
| 250 - 495 | HK$4.66 | HK$23.30 |
| 500 + | HK$4.38 | HK$21.90 |
*price indicative
- RS Stock No.:
- 258-0666
- Mfr. Part No.:
- BGA729N6E6327XTSA1
- Manufacturer:
- Infineon
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | RF Amplifier | |
| Amplifier Type | Low Noise | |
| Operating Frequency | 1000 MHz | |
| Technology | Silicon Germanium | |
| Gain | 16.3dB | |
| Package Type | TSNP | |
| Minimum Supply Voltage | 1.5V | |
| Pin Count | 6 | |
| Maximum Supply Voltage | 3.3V | |
| Noise Figure | 1.05dB | |
| P1dB - Compression Point | 60mW | |
| Third Order Intercept OIP3 | -6dBm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Series | BGA729N6 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type RF Amplifier | ||
Amplifier Type Low Noise | ||
Operating Frequency 1000 MHz | ||
Technology Silicon Germanium | ||
Gain 16.3dB | ||
Package Type TSNP | ||
Minimum Supply Voltage 1.5V | ||
Pin Count 6 | ||
Maximum Supply Voltage 3.3V | ||
Noise Figure 1.05dB | ||
P1dB - Compression Point 60mW | ||
Third Order Intercept OIP3 -6dBm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Series BGA729N6 | ||
The Infineon broadband low noise amplifier is a broadband low power low noise amplifier MMIC for portable and mobile TV applications which covers a wide frequency range from 70 MHz to 1000 MHz. The LNA provides 16.3 dB gain and 1.05 dB noise figure at a current consumption of 6.3 mA in the application configuration described in Chapter 3. In bypass mode the LNA provides an insertion loss of 4.2 dB. The bypass mode with much higher linearity enables this LNA to work with much lower current consumption than commonly used TV LNAs.
No external matching inductor required
RF input and output internally matched to 50 Ω
Only 2 external SMD component necessary
2 kV HBM ESD protection
Pb-free (RoHS compliant) package
