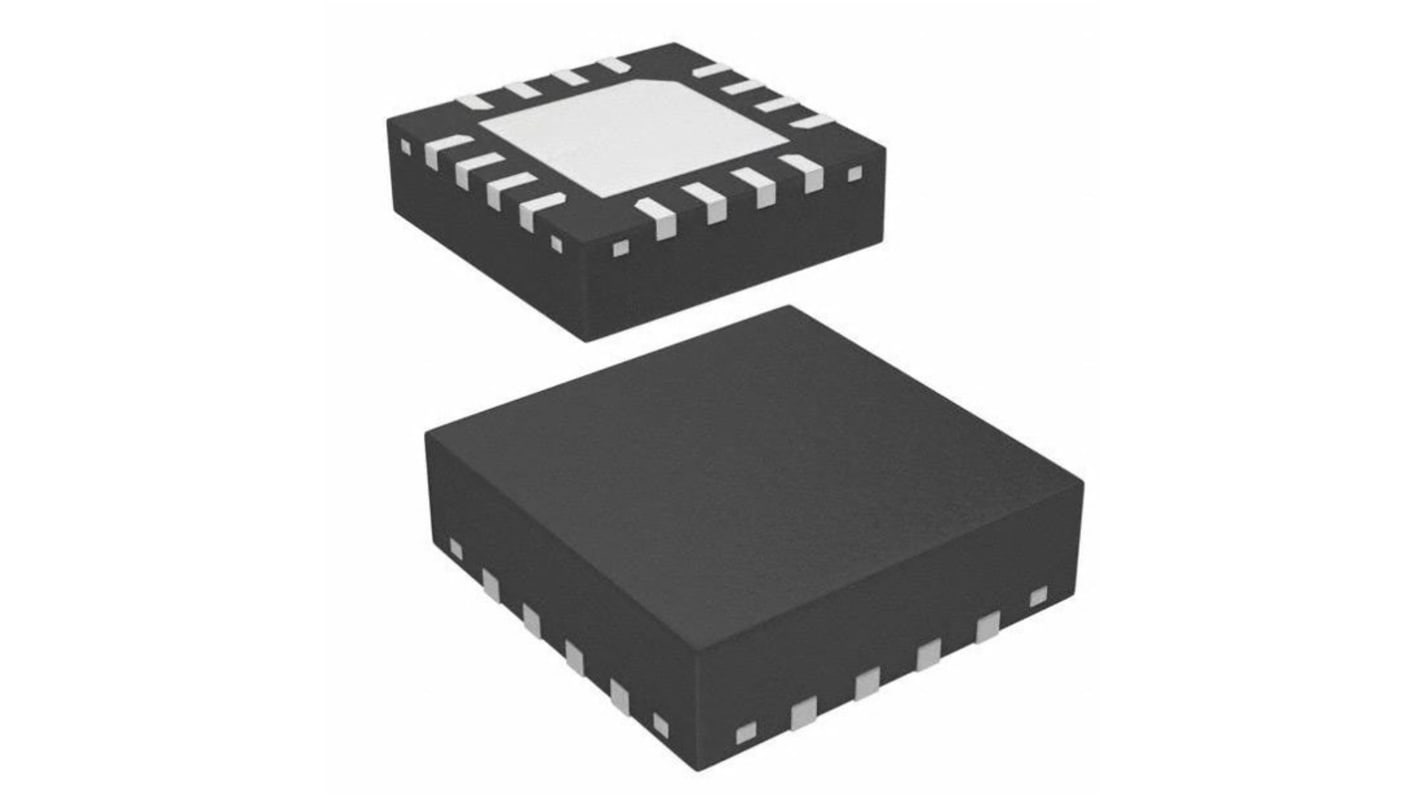

Abracon, Real Time Clock 256 bit Real Time Clock YY:MM:DD-dd, 16-Pin VFQFN-16 Surface
- RS Stock No.:
- 171-0508P
- Mfr. Part No.:
- AB0805-T3
- Manufacturer:
- Abracon
Bulk discount available
View bulk pricing optionsSubtotal 750 units (supplied on a reel)*
HK$17,370.00
FREE delivery for orders over HK$250.00
In Stock
- Plus 8,975 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 750 - 1495 | HK$23.16 |
| 1500 + | HK$22.68 |
*price indicative
- RS Stock No.:
- 171-0508P
- Mfr. Part No.:
- AB0805-T3
- Manufacturer:
- Abracon
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Real Time Clock | |
| Date Format | YY:MM:DD-dd | |
| Time Format | HH:MM:SS:hh | |
| Sub Type | Real Time Clock | |
| Mount Type | Surface | |
| Package Type | VFQFN-16 | |
| Interface Type | I2C/SPI | |
| Pin Count | 16 | |
| RTC Memory Size | 256bit | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | JEDEC J-STD-020D.1 | |
| Width | 3mm | |
| Series | AB08X5 | |
| Length | 3mm | |
| Minimum Supply Voltage | 1.5V | |
| Automotive Standard | No | |
| Maximum Supply Voltage | 3.6V | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Real Time Clock | ||
Date Format YY:MM:DD-dd | ||
Time Format HH:MM:SS:hh | ||
Sub Type Real Time Clock | ||
Mount Type Surface | ||
Package Type VFQFN-16 | ||
Interface Type I2C/SPI | ||
Pin Count 16 | ||
RTC Memory Size 256bit | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals JEDEC J-STD-020D.1 | ||
Width 3mm | ||
Series AB08X5 | ||
Length 3mm | ||
Minimum Supply Voltage 1.5V | ||
Automotive Standard No | ||
Maximum Supply Voltage 3.6V | ||
- COO (Country of Origin):
- US
AB08X5
The ABRACON AB08X5 Real-Time Clock family provides a
groundbreaking combination of ultra-low power coupled with a
highly sophisticated feature set.The AB08X5 includes on-chip
oscillators to provide minimum power consumption, full RTC
functions including battery backup and programmable counters
and alarms for timer and watchdog functions, and either an I2C or
SPI serial Interface for communication with a host controller.
Features
Ultra-low supply current (all at 3V)
Advanced timekeeping features
Baseline timekeeping features
Power management features
Applications
Smart Cards
Medical Electronics
Wireless Sensors and Tags
Utility meters
Data loggers
Appliances
Consumer electronics
Handsets
Communications equipment
Crystals 3x3mm Ultra Low Power Real Time Clock
