Vishay 535 5 kΩ Rotary Potentiometer 5-Turns 1-Gang Panel Mount, 535B1502JC

Name: Vishay 535 5 kΩ Rotary Potentiometer 5-Turns 1-Gang Panel Mount, 535B1502JC
Brand: Vishay
SKU: 460-1944P
Availability: InStock

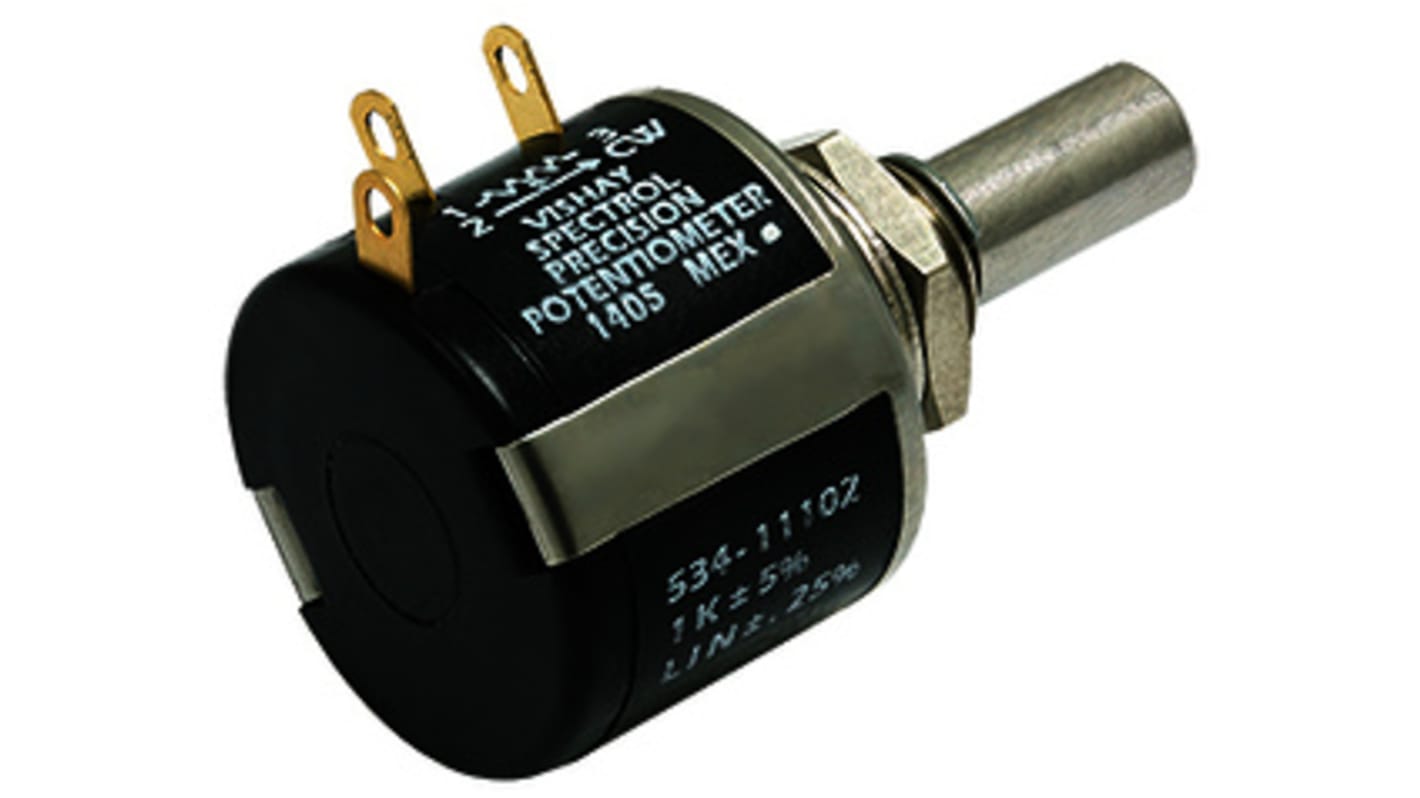

The image is for reference only, please refer to product details and specifications

Bulk discount available

View bulk pricing options

Subtotal 3 units (supplied in a box)*

HK$1,086.60

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
3 - 4	HK$362.20
5 +	HK$354.40

*price indicative

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	5kΩ
	Number of Gangs	1
	Shaft Diameter	6.35mm
	Packaging	Bulk
	Number of Turns	5
	Power Rating	1.5W
	Electrical Taper	Linear
	Element Material	Wirewound
	Mount Type	Panel Mount
	Termination Style	Solder Lug
	Shaft Length	22.2mm
	Pin Count	3
	Minimum Operating Temperature	-55°C
	Adjustment Type	Side
	Maximum Operating Temperature	125°C
	Length	19.1mm
	Standards/Approvals	RoHS
	Depth	22.22mm
	Height	26.99mm
	Actuator Type	Slotted Shaft
	Series	535
	Tolerance ±	5%

	Select all
	Brand Vishay
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 5kΩ
	Number of Gangs 1
	Shaft Diameter 6.35mm
	Packaging Bulk
	Number of Turns 5
	Power Rating 1.5W
	Electrical Taper Linear
	Element Material Wirewound
	Mount Type Panel Mount
	Termination Style Solder Lug
	Shaft Length 22.2mm
	Pin Count 3
	Minimum Operating Temperature -55°C
	Adjustment Type Side
	Maximum Operating Temperature 125°C
	Length 19.1mm
	Standards/Approvals RoHS
	Depth 22.22mm
	Height 26.99mm
	Actuator Type Slotted Shaft
	Series 535
	Tolerance ± 5%

• Bushing and servo mount designs available

• Linearity ± 0.25 %, down to 0.05 % on request

• Special resistance tolerances to 1 %

• Rear shaft extensions and support bearing

• Metric shaft available

• Dual gang configuration and concentric shafts

• High torque, center tap, slipping clutch on request

• Special markings and front shaft extensions

Metal lockwasher and nut.
