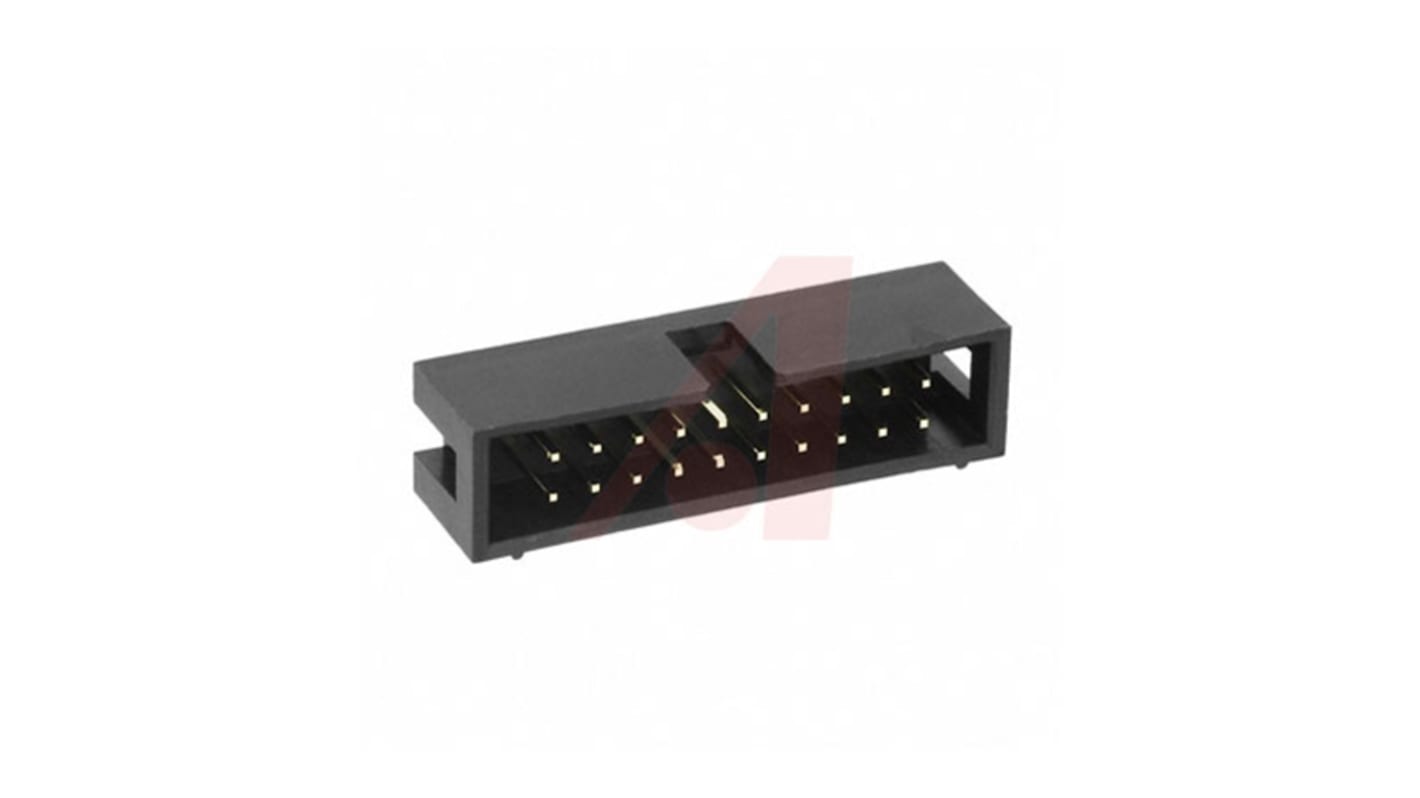

3M 303 Series Straight Through Hole PCB Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

View all PCB Headers
Unavailable
RS will no longer stock this product.
RS Stock No.:
827-3587
Mfr. Part No.:
30320-6002HB
Manufacturer:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Series

303

Pitch

2.54mm

Number of Contacts

20

Number of Rows

2

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mounting Type

Through Hole

Connector System

Board to Board, Wire to Board

Termination Method

Solder

Contact Plating

Gold

Contact Material

Brass

Current Rating

1.0A

Low Profile 303 Series Headers


The 3M 303 Series four wall box headers are a polarized space saving low profile design. These headers are available in various contact quantities.

All over gold flash
Sturdy body
End windows
