Vishay VS-GT100TS065N, Type N-Channel Half Bridge IGBT, 96 A 650 V, 7-Pin INT-A-PAK, Panel

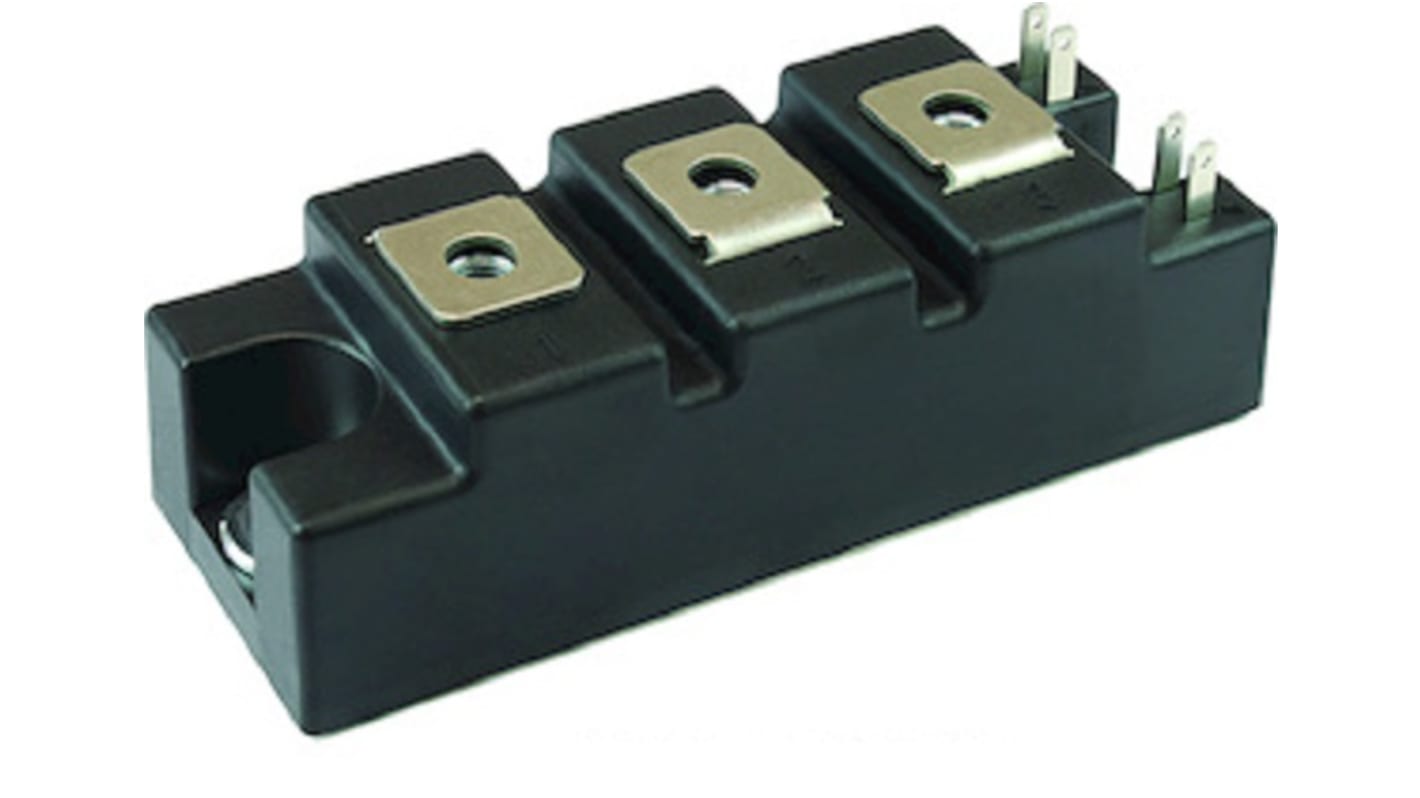

The image is for reference only, please refer to product details and specifications

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

HK$725.70

Add to Basket
Select or type quantity
In Stock
  • 31 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4HK$725.70
5 +HK$691.20

*price indicative

Packaging Options:
RS Stock No.:
276-6401
Mfr. Part No.:
VS-GT100TS065N
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

IGBT

Maximum Continuous Collector Current Ic

96A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

259W

Number of Transistors

2

Configuration

Half Bridge

Package Type

INT-A-PAK

Mount Type

Panel

Channel Type

Type N

Pin Count

7

Maximum Collector Emitter Saturation Voltage VceSAT

2.3V

Maximum Gate Emitter Voltage VGEO

±20 V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Standards/Approvals

UL E78996

Width

35.4 mm

Length

94.4mm

Height

30mm

Automotive Standard

No

COO (Country of Origin):
IT
The Vishay IGBT features Gen 4 FRED Pt technology anti parallel diodes with ultra soft reverse recovery characteristics. It is optimized for high current inverter stages (AC TIG welding machines).

UL approved

Very low conduction losses

Low EMI
