3M 20 A In-line Fuse Holder, 32 V
- RS Stock No.:
- 237-2878
- Mfr. Part No.:
- 7000006228
- Manufacturer:
- 3M
The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 box of 1000 units)*
HK$4,653.40
FREE delivery for orders over HK$250.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 - 1 | HK$4,653.40 | HK$4.653 |
| 2 - 9 | HK$4,152.30 | HK$4.152 |
| 10 + | HK$3,737.10 | HK$3.737 |
*price indicative
- RS Stock No.:
- 237-2878
- Mfr. Part No.:
- 7000006228
- Manufacturer:
- 3M
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | In-line Fuse Holder | |
| Current Rating | 20 A | |
| Voltage | 32 V | |
| Body Material | Polypropylene | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Material | Tin Plated Copper | |
| Lead Wire Length | 1.6mm | |
| Series | 972-A | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type In-line Fuse Holder | ||
Current Rating 20 A | ||
Voltage 32 V | ||
Body Material Polypropylene | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Material Tin Plated Copper | ||
Lead Wire Length 1.6mm | ||
Series 972-A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

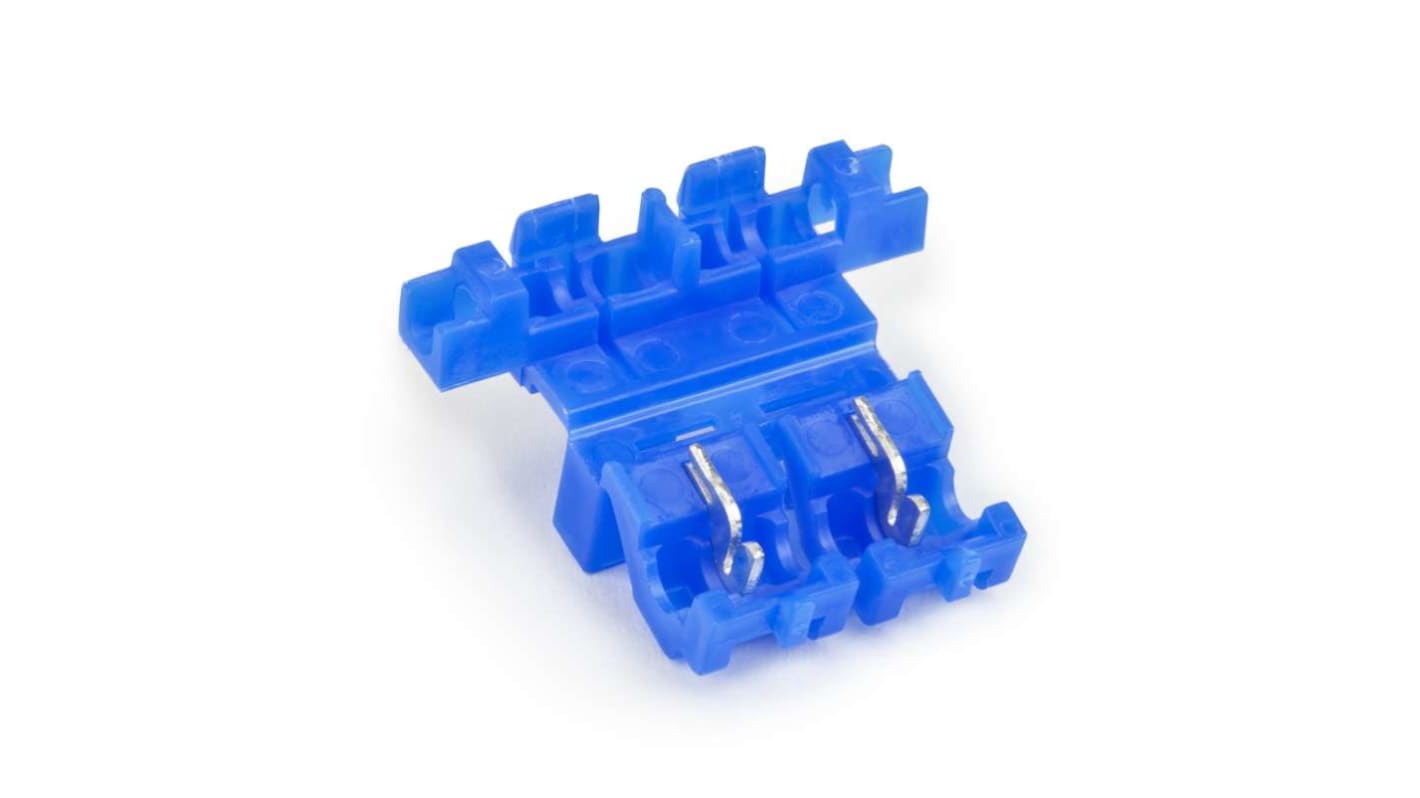

The 3M™ Scotchlok™ self stripping in line blade type fuse holder 972-A is used to install a blade type automotive fuse between power source and device.
Connection type wire Connector style insulation displacement Fastener orientation female Insulation material polypropylene Maximum operating temperature 105 degree Celsius Maximum recommended voltage rating 600 V Product colour blue RoHS 2011/65/EU Compliant RoHS EU Comments: RoHS 2011/65/EU compliant without exemption Terminal type fuse
