Lascar EL-USB-3 Voltage Data Logger, USB, 1 Input Channel(s)

View all Data Loggers

Subtotal (1 unit)*

HK$659.70

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship from another location
  • Plus 21 unit(s) shipping from 12 December 2025
  • Plus 28 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +HK$659.70

*price indicative

RS Stock No.:
490-1070
Distrelec Article No.:
176-70-792
Mfr. Part No.:
EL-USB-3
Manufacturer:
Lascar
Find similar products by selecting one or more attributes.
Select all

Brand

Lascar

Model Number

EL-USB-3

Number of Input Channels

1

Measurement Parameters

Voltage

Sensor Type

Voltage

Interface Type

USB

Data Logger Type

Voltage

Maximum Voltage Measurement

30V dc

Power Source

Battery

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

+80°C

Best Voltage Measurement Accuracy

±1 %

Dimensions

26.8 (Dia.) x 98mm

Number of Readings Per Channel

32510

Alarm

Yes

Model Number p

EL-USB-3

Includes

Battery

Battery Type

1/2 AA Lithium

Battery Life

3 yr

COO (Country of Origin):
CN

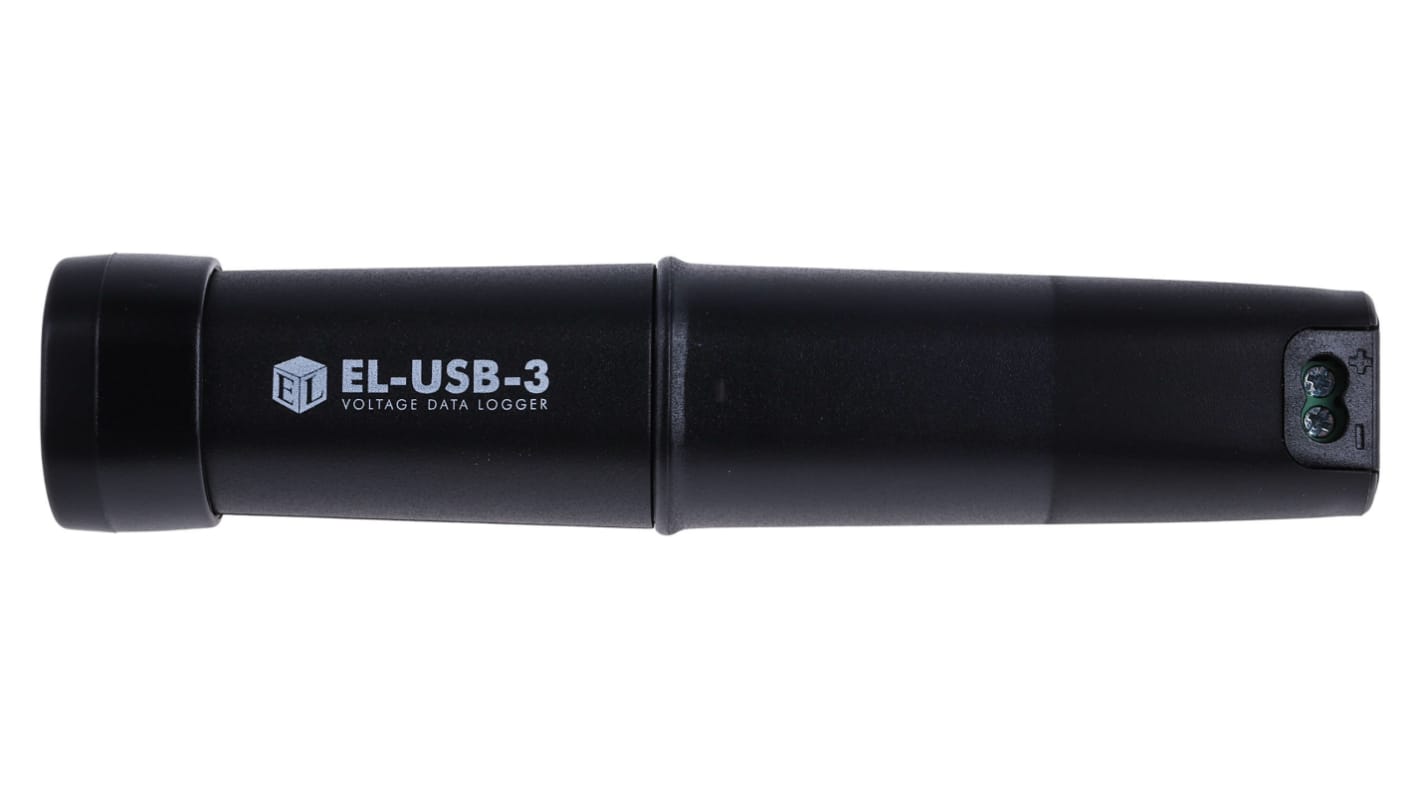

Lascar EL-USB-3 Data Logger


The standalone EL-USB-3 data logger from Lascar measures and stores more than 32,000 voltage readings from power supplies, sensors and other sources over a 0 to 30V d.c. range at a resolution of 50 mV d.c.

Users can easily set up their logger and view downloaded data by simply plugging their unit into a PC's USB port. Using the free EasyLog software available to download, data can be graphed, printed and exported to other applications for detailed analysis.

Features and Benefits


0 to 30V d.c. measurement range
Stores over 32,000 readings
Logging rates between 1 second and 12 hours
Connection via two screw terminals
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red and green LEDs
EasyLog Software available as a free download

Applications


Outside Environmental Data
Facilities Management

Note

Supplied with 1/2 AA battery and wall mount clip.
