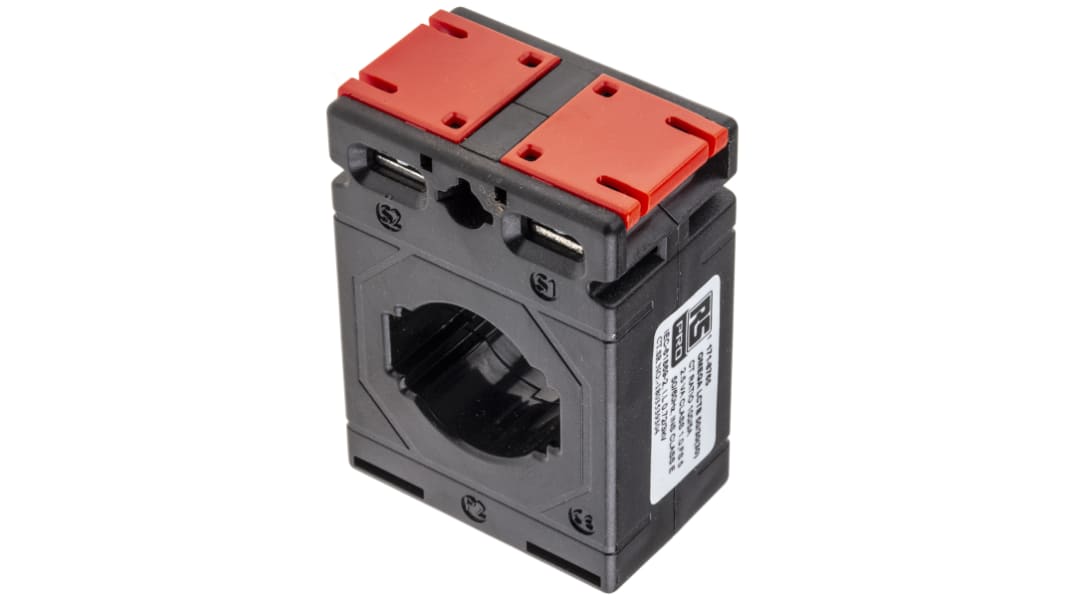

RS PRO Base Mounted Current Transformer, 100A Input, 100:5, 5 A Output, 30 x 10mm Bore
- RS Stock No.:
- 171-8765
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
HK$84.20
FREE delivery for orders over HK$250.00
In Stock
- 494 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | HK$84.20 |
| 5 + | HK$69.20 |
*price indicative
- RS Stock No.:
- 171-8765
- Manufacturer:
- RS PRO
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Current Ratio | 100:5 | |
| Bore Size | 30 x 10mm | |
| Transformer Type | Base Mounted | |
| Input Current | 100A | |
| Output Current | 5 A | |
| Overall Height | 70mm | |
| Overall Width | 50mm | |
| Overall Depth | 31mm | |
| Minimum Temperature | -5°C | |
| Maximum Temperature | +55°C | |
| Mounting Type | Surface Mount | |
| Dimensions | 50 x 31 x 70 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Current Ratio 100:5 | ||
Bore Size 30 x 10mm | ||
Transformer Type Base Mounted | ||
Input Current 100A | ||
Output Current 5 A | ||
Overall Height 70mm | ||
Overall Width 50mm | ||
Overall Depth 31mm | ||
Minimum Temperature -5°C | ||
Maximum Temperature +55°C | ||
Mounting Type Surface Mount | ||
Dimensions 50 x 31 x 70 mm | ||
- COO (Country of Origin):
- IN
RS PRO Square Current Transformer (100:5A)
A reliable and tough current transformer (CT) with a current ratio of 100:5A. Highly accurate with a class 1 rating and designed to be base mounted.
A square type transformer with sealable terminal covers and encapsulated with Polycarbonate rated to UL94V-0 dictating that in the event of a fire the flammable parts of the transformer will not burn for more than 10 secs protecting equipment and premises.
A reliable and accurate CT current transformer suitable for harsh industrial environments and applications.
A square type transformer with sealable terminal covers and encapsulated with Polycarbonate rated to UL94V-0 dictating that in the event of a fire the flammable parts of the transformer will not burn for more than 10 secs protecting equipment and premises.
A reliable and accurate CT current transformer suitable for harsh industrial environments and applications.
Current transformer (CT)
Square type
Current ratio of 100:5A
Class 1 accuracy
Base/ Surface mounted
Wire sealable terminal covers
IP20 rated
Altitude up to 2000 m
Operating temperature of -5°C to + 55°C
UL94V-0 fire rating
Dimensions of 70 x 50 x 31mm (bore size of 30 x 10mm)
Square type
Current ratio of 100:5A
Class 1 accuracy
Base/ Surface mounted
Wire sealable terminal covers
IP20 rated
Altitude up to 2000 m
Operating temperature of -5°C to + 55°C
UL94V-0 fire rating
Dimensions of 70 x 50 x 31mm (bore size of 30 x 10mm)
Standards and Approvals: IEC 60044-1, IEC 61869-1, IEC 61010 - 2
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
