Renesas Electronics RC22504A000GNK#BB0 Frequency Synthesiser 6 24-Pin 5.5 V QFN-24

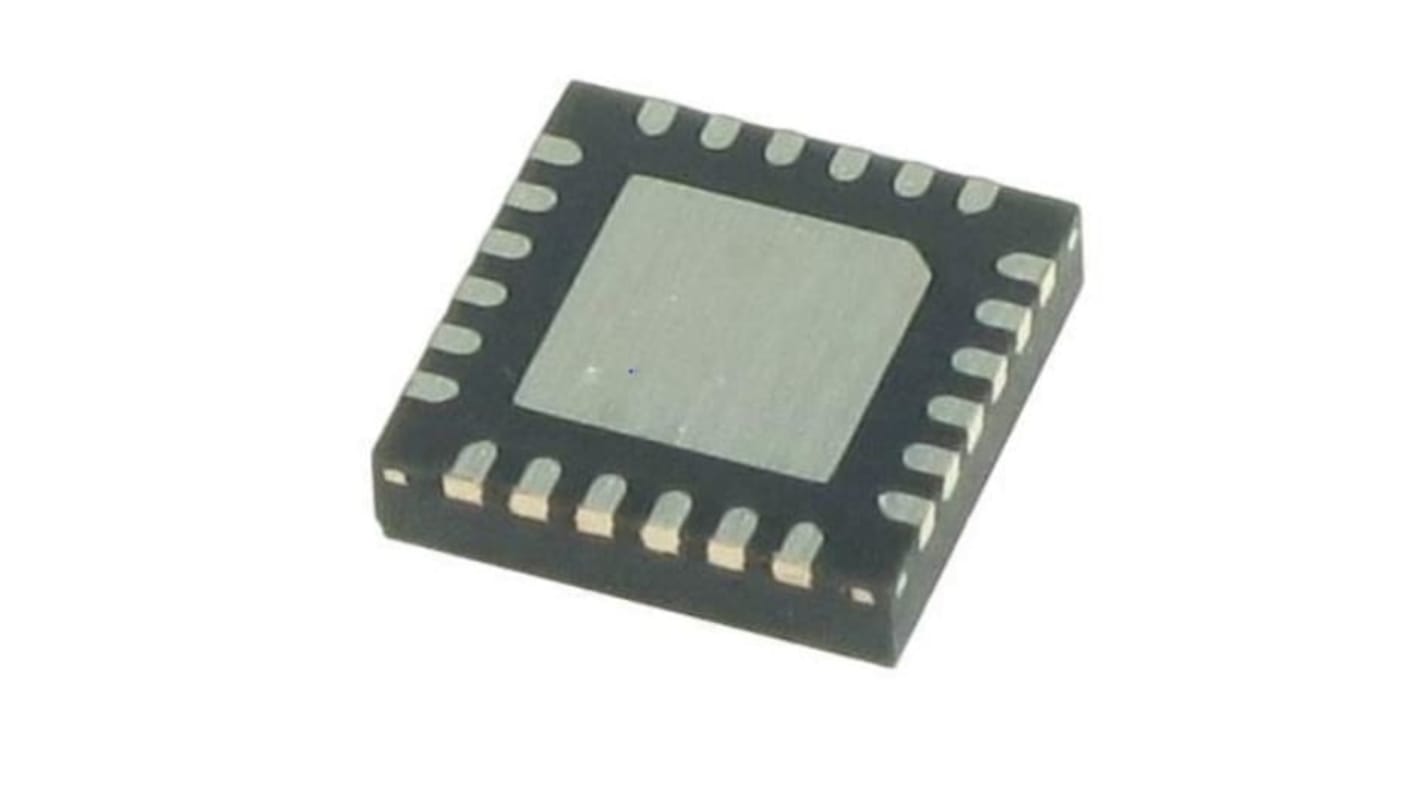

The image is for reference only, please refer to product details and specifications

View all Clock Synthesizers
Bulk discount available

Subtotal (1 unit)*

HK$105.60

Add to Basket
Select or type quantity
Last RS stock
  • Final 497 unit(s), ready to ship from another location
Units
Per unit
1 - 9HK$105.60
10 - 24HK$102.50
25 +HK$100.40

*price indicative

Packaging Options:
RS Stock No.:
230-6592
Mfr. Part No.:
RC22504A000GNK#BB0
Manufacturer:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Frequency Synthesiser

Conversion Rate

20Gsps

Maximum Output Frequency

180MHz

Mount Type

Surface

Package Type

QFN-24

Pin Count

24

Number of Outputs

6

Maximum Input Frequency

312.5MHz

Minimum Supply Voltage

2.3V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

4mm

Height

0.9mm

Standards/Approvals

RoHS

Width

4 mm

Automotive Standard

No

The Renesas Electronics RC22504A frequency synthesizer is a small, low-power timing component designed to be placed immediately adjacent to a PHY, switch, ASIC or FPGA that requires several reference clocks with jitter performance less than 100fs (max). It can act as a frequency synthesizer to locally generate the reference clock or as a DCO for frequency margining or OTN clock applications.

Jitter as low as 64 fs RMS maximum (10Hz to 20MHz)

Programmable status output

Supports up to 1MHz I2C or up to 20MHz SPI serial processor port

Can configure itself automatically after reset via internal customer-definable One-Time Programmable (OTP) memory with up to four different configurations

4 x 4 mm 24-QFN package

4 differential / 8 LVCMOS outputs

PLL core consists of fractional-feedback Analog PLL (APLL)
