Renesas Electronics 74CBTLV3244PGG8, Bus Switch, 20-Pin
- RS Stock No.:
- 249-2442
- Mfr. Part No.:
- 74CBTLV3244PGG8
- Manufacturer:
- Renesas Electronics

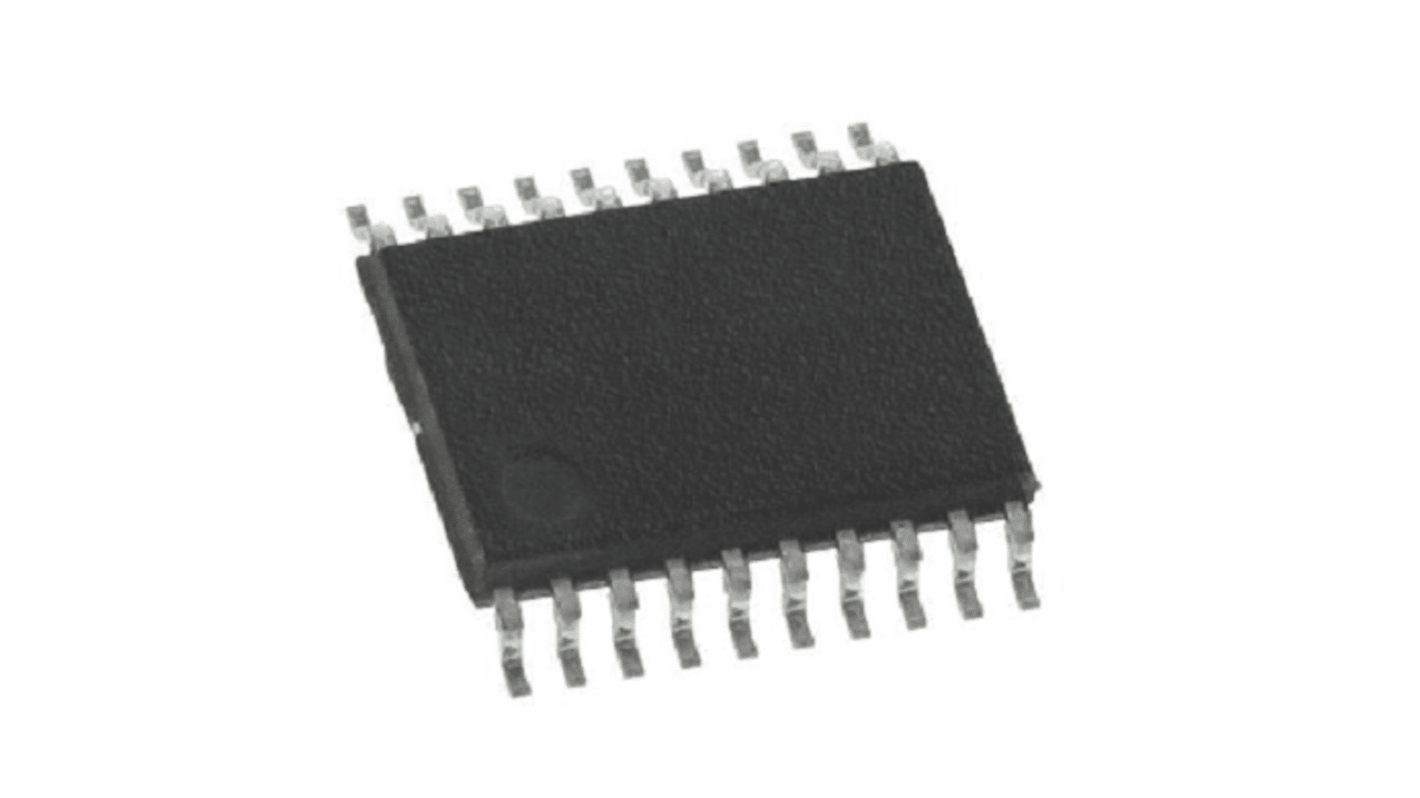

The image is for reference only, please refer to product details and specifications
Subtotal (1 reel of 3000 units)*
HK$16,353.00
FREE delivery for orders over HK$250.00
Temporarily out of stock
- Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | HK$5.451 | HK$16,353.00 |
*price indicative
- RS Stock No.:
- 249-2442
- Mfr. Part No.:
- 74CBTLV3244PGG8
- Manufacturer:
- Renesas Electronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | FCT | |
| Product Type | Bus Switch | |
| Maximum Quiescent Current | 10μA | |
| Minimum Supply Voltage | 2.3V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 3.6V | |
| Maximum On State Resistance | 40Ω | |
| Maximum Propagation Delay Time @ CL | 0.25ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | 74CBTLV3244 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family FCT | ||
Product Type Bus Switch | ||
Maximum Quiescent Current 10μA | ||
Minimum Supply Voltage 2.3V | ||
Pin Count 20 | ||
Maximum Supply Voltage 3.6V | ||
Maximum On State Resistance 40Ω | ||
Maximum Propagation Delay Time @ CL 0.25ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series 74CBTLV3244 | ||
Automotive Standard No | ||
The Renesas Electronics octal bus switch has standard 244 pinouts and is designed for asynchronous communication between data buses. Sets of four switches are controlled by one output Enable (OE). When OE is low, the set of four bus switches is on and port A is connected to port B. When OE is high, the set of four bus switches is off and a high impedance exists between port A and port B.
Pin-out compatible with standard '244 Logic products
5Ω A/B bi-directional switch
Isolation under power-off conditions and over-voltage tolerant
