TDK, MT25 Metal Oxide Varistor 1.09 nF 20 kA, Clamping 1.7 kV, Varistor 510 V, Box
- RS Stock No.:
- 202-0475
- Mfr. Part No.:
- B72225M0321M201
- Manufacturer:
- TDK

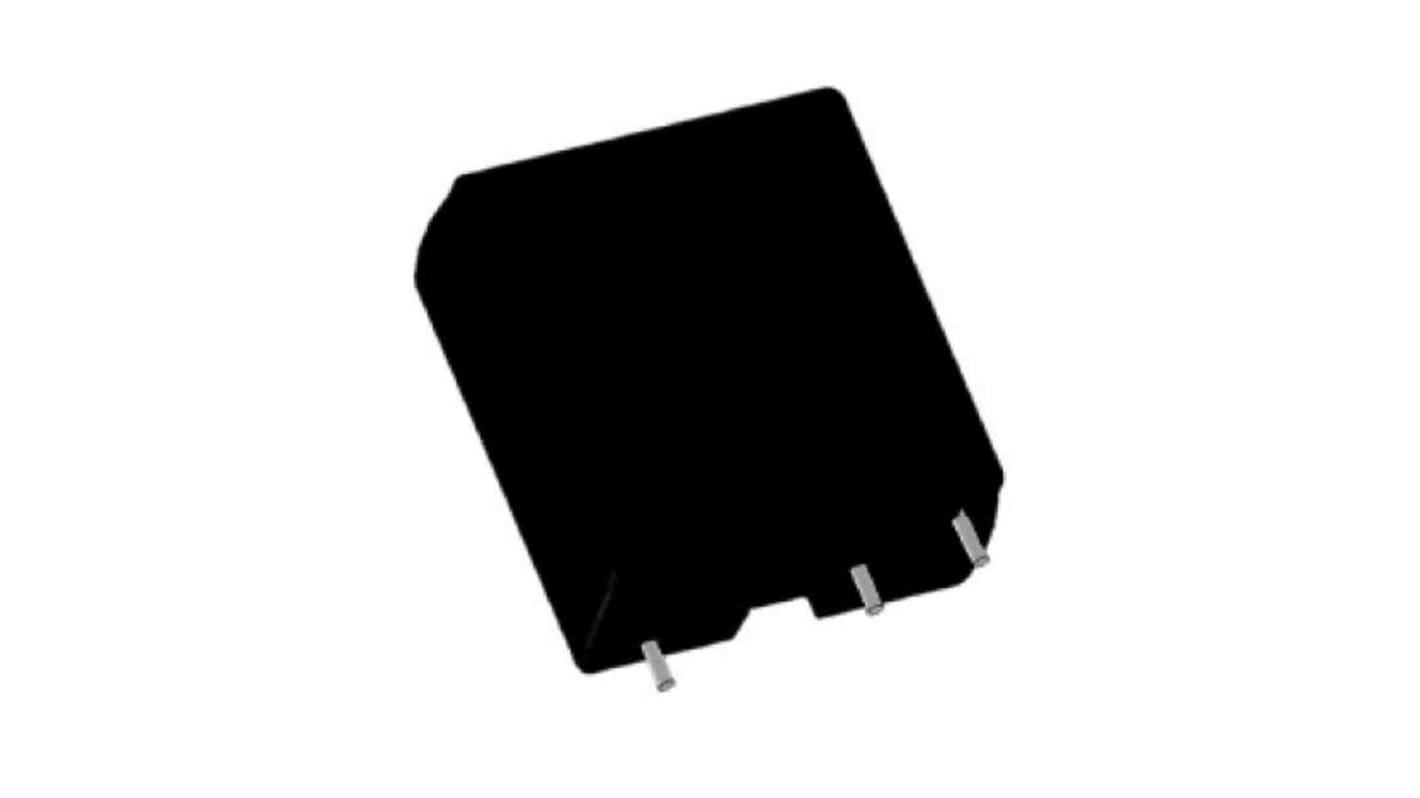

The image is for reference only, please refer to product details and specifications
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 202-0475
- Mfr. Part No.:
- B72225M0321M201
- Manufacturer:
- TDK
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 510 V | |
| Packaging | Tray | |
| Clamping Voltage VC | 1.7kV | |
| Clamping Current | 20kA | |
| Mount Type | PCB | |
| Series | MT25 | |
| Diameter | 25mm | |
| Maximum AC Voltage | 320V ac | |
| Maximum Surge Current | 20kA | |
| Maximum DC Voltage | 420V dc | |
| Capacitance | 1.09nF | |
| Length | 28mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Termination Style | Radial | |
| Standards/Approvals | RoHS | |
| Thickness | 14mm | |
| Package/Case | Box | |
| Energy Rating | 445J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 510 V | ||
Packaging Tray | ||
Clamping Voltage VC 1.7kV | ||
Clamping Current 20kA | ||
Mount Type PCB | ||
Series MT25 | ||
Diameter 25mm | ||
Maximum AC Voltage 320V ac | ||
Maximum Surge Current 20kA | ||
Maximum DC Voltage 420V dc | ||
Capacitance 1.09nF | ||
Length 28mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Termination Style Radial | ||
Standards/Approvals RoHS | ||
Thickness 14mm | ||
Package/Case Box | ||
Energy Rating 445J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The TDK Metal oxide varistors is self-protected under abnormal overvoltage conditions and offer high-energy. It has surge current up to 20kA. The operating temperature ranges between -40°C and 85 °C. The applications include power meters, telecom, TVSS, and household appliances.
UL1449 recognized, Type 4CA (file number E321126)
Remote Signal Contact
Compact size with patented over-moulding design
Compliance with UL1449-4 and IEC61643-11
