EPCOS, S25 Varistor 2.1 nF 150 A, Clamping 2000 V, Varistor 205 to 1200 V, Round Varistor Element
- RS Stock No.:
- 179-7274
- Mfr. Part No.:
- B72225S4251K101
- Manufacturer:
- EPCOS

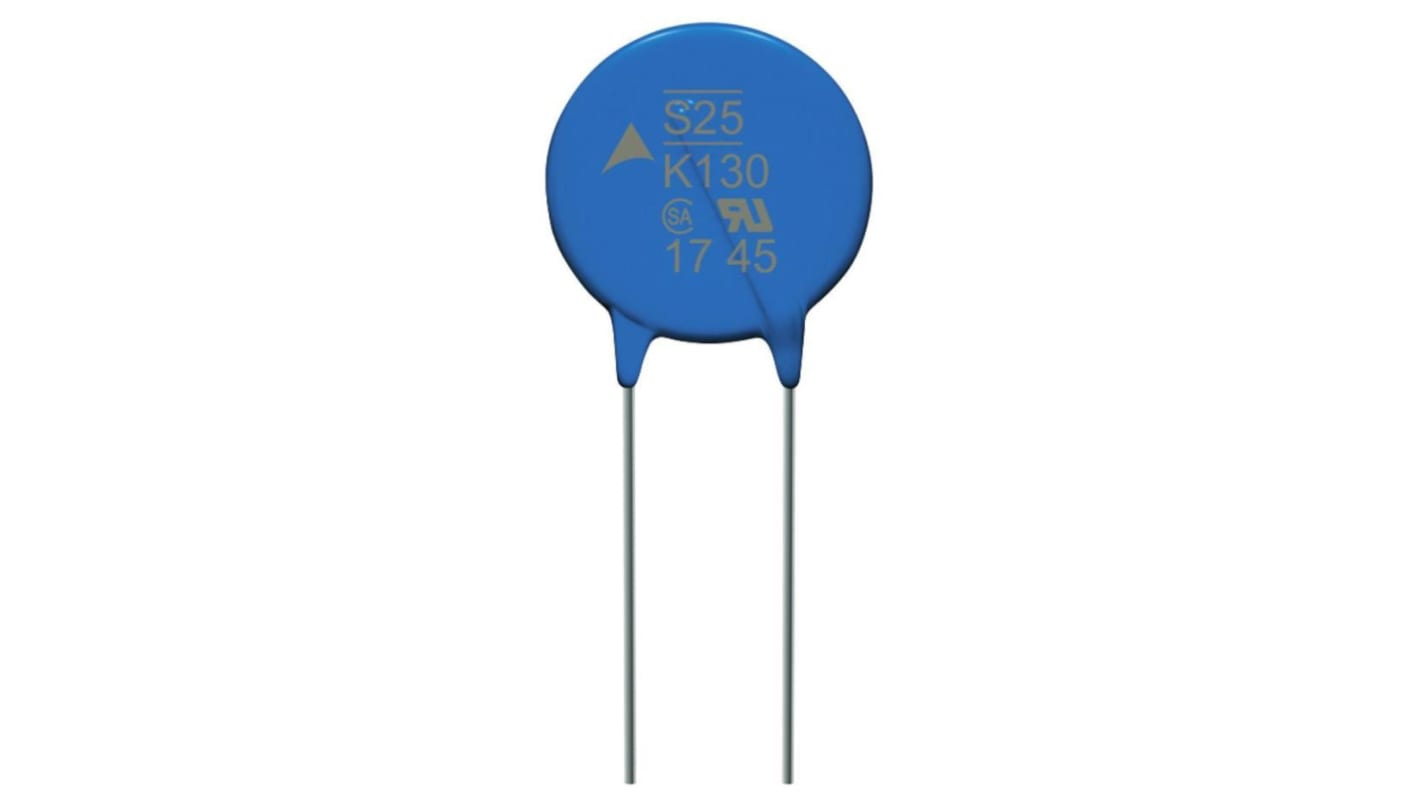

The image is for reference only, please refer to product details and specifications
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 179-7274
- Mfr. Part No.:
- B72225S4251K101
- Manufacturer:
- EPCOS
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Varistor Voltage | 205 to 1200 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 2000V | |
| Packaging | Bulk | |
| Clamping Current | 150A | |
| Mount Type | Lead | |
| Series | S25 | |
| Diameter | 27.5 mm | |
| Maximum AC Voltage | 750V ac | |
| Maximum Surge Current | 20000A | |
| Maximum DC Voltage | 1060V dc | |
| Capacitance | 2.1nF | |
| Length | 56mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Depth | 6.9mm | |
| Termination Style | Tinned wire | |
| Thickness | 6.9mm | |
| Standards/Approvals | VDE, CSA, UL, IEC | |
| Package/Case | Round Varistor Element | |
| Automotive Standard | No | |
| Energy Rating | 1025J | |
| Lead Pitch | 12.7mm | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Varistor Voltage 205 to 1200 V | ||
Product Type Varistor | ||
Clamping Voltage VC 2000V | ||
Packaging Bulk | ||
Clamping Current 150A | ||
Mount Type Lead | ||
Series S25 | ||
Diameter 27.5 mm | ||
Maximum AC Voltage 750V ac | ||
Maximum Surge Current 20000A | ||
Maximum DC Voltage 1060V dc | ||
Capacitance 2.1nF | ||
Length 56mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Depth 6.9mm | ||
Termination Style Tinned wire | ||
Thickness 6.9mm | ||
Standards/Approvals VDE, CSA, UL, IEC | ||
Package/Case Round Varistor Element | ||
Automotive Standard No | ||
Energy Rating 1025J | ||
Lead Pitch 12.7mm | ||
- COO (Country of Origin):
- CN
Construction:
Round varistor element, leaded
Coating: epoxy resin, flame-retardant
Terminals: tinned wire
Features:
High-energy SuperioR series E4
Wide operating voltage range 130 … 750 VRMS
All types duty cycle @ 6 kV/ 3 kA = >10 pulses
Very high surge current rating up to 20 kA
