Vishay, VDRS Metal Oxide Varistor 140 pF 10 A, Clamping 710 V, Varistor 430 V
- RS Stock No.:
- 179-3834
- Mfr. Part No.:
- VDRS07H275BSE
- Manufacturer:
- Vishay

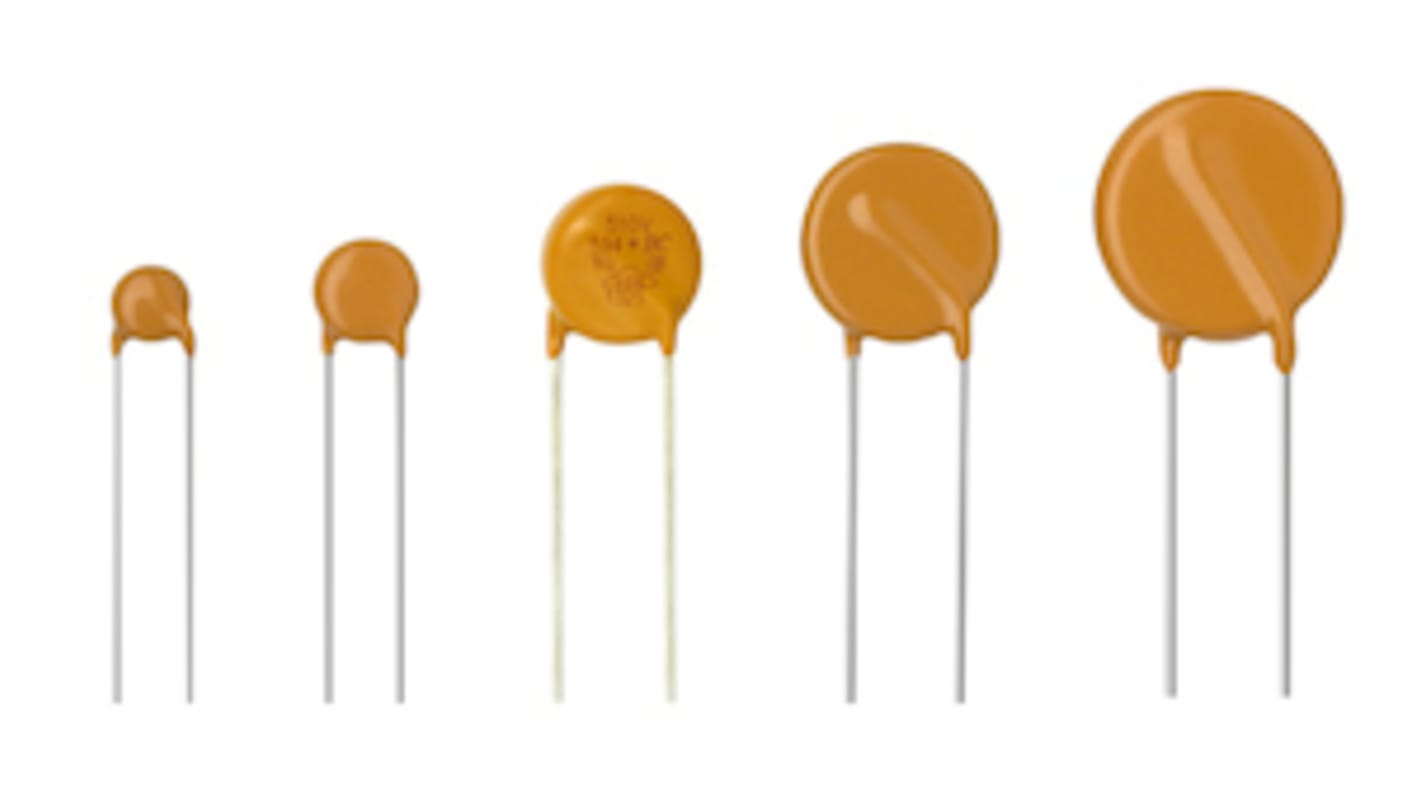

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 box of 250 units)*
HK$667.50
FREE delivery for orders over HK$250.00
Limited stock
- Plus 250 left, shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 250 | HK$2.67 | HK$667.50 |
| 500 - 750 | HK$2.603 | HK$650.75 |
| 1000 + | HK$2.563 | HK$640.75 |
*price indicative
- RS Stock No.:
- 179-3834
- Mfr. Part No.:
- VDRS07H275BSE
- Manufacturer:
- Vishay
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Varistor Voltage | 430 V | |
| Product Type | Metal Oxide Varistor | |
| Packaging | Bulk | |
| Clamping Voltage VC | 710V | |
| Clamping Current | 10A | |
| Series | VDRS | |
| Maximum AC Voltage | 275V ac | |
| Diameter | 9mm | |
| Maximum DC Voltage | 350V dc | |
| Maximum Surge Current | 1200A | |
| Capacitance | 140pF | |
| Minimum Operating Temperature | -40°C | |
| Length | 35mm | |
| Maximum Operating Temperature | 85°C | |
| Thickness | 4.9mm | |
| Depth | 35mm | |
| Standards/Approvals | UR, RoHS, DVE, CSA | |
| Energy Rating | 36J | |
| Lead Pitch | 5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Varistor Voltage 430 V | ||
Product Type Metal Oxide Varistor | ||
Packaging Bulk | ||
Clamping Voltage VC 710V | ||
Clamping Current 10A | ||
Series VDRS | ||
Maximum AC Voltage 275V ac | ||
Diameter 9mm | ||
Maximum DC Voltage 350V dc | ||
Maximum Surge Current 1200A | ||
Capacitance 140pF | ||
Minimum Operating Temperature -40°C | ||
Length 35mm | ||
Maximum Operating Temperature 85°C | ||
Thickness 4.9mm | ||
Depth 35mm | ||
Standards/Approvals UR, RoHS, DVE, CSA | ||
Energy Rating 36J | ||
Lead Pitch 5mm | ||
Automotive Standard No | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
VDR Metal Oxide Varistors Standard
FEATURES
Low β high purity zinc oxide disc
Halogen free insulating epoxy coating
Zinc oxide disc, HF epoxy coated
