Panasonic, E Varistor 700 pF 100 A, Clamping 930 V, Varistor 560 V
- RS Stock No.:
- 287-448
- Mfr. Part No.:
- ERZE14A561
- Manufacturer:
- Panasonic

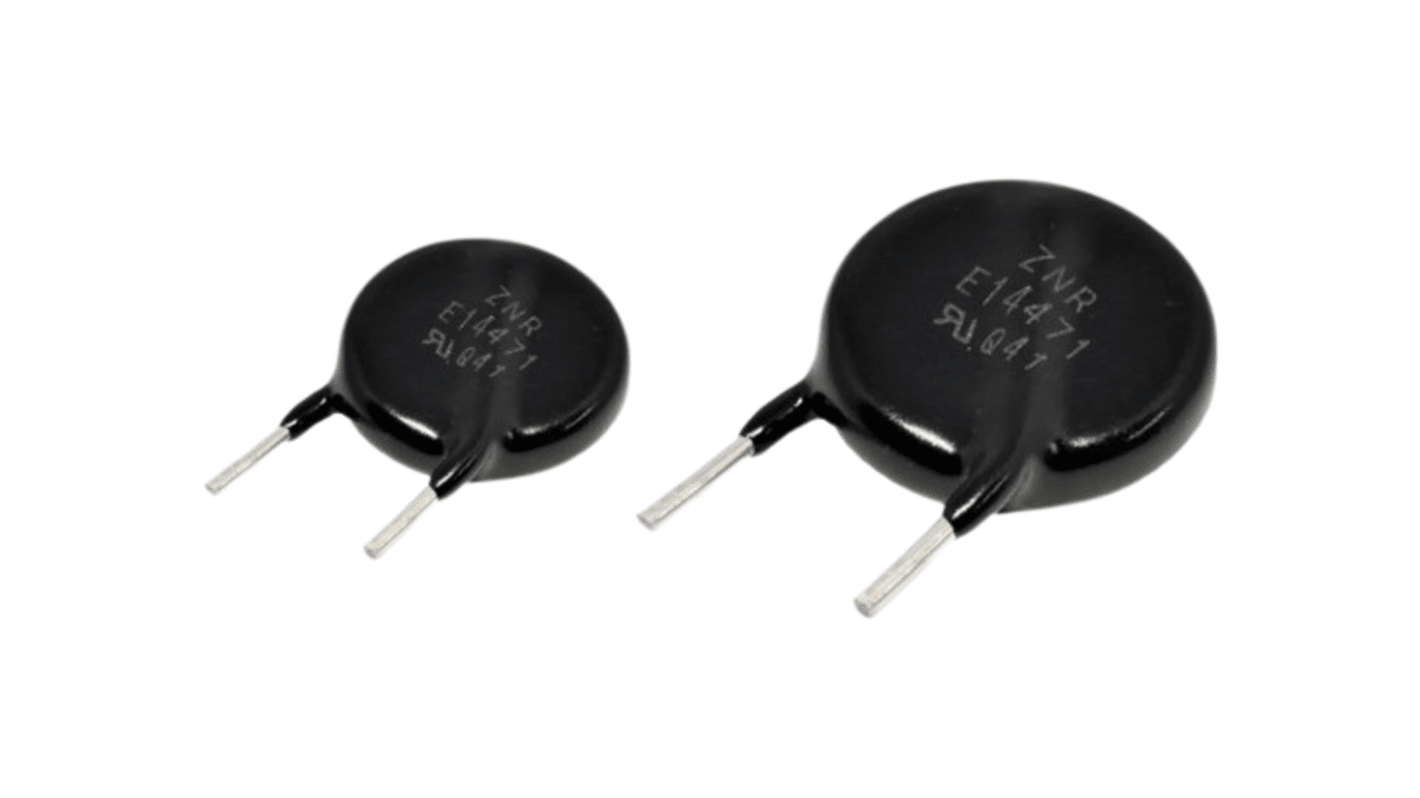

The image is for reference only, please refer to product details and specifications
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
HK$68.90
FREE delivery for orders over HK$250.00
In Stock
- 940 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | HK$6.89 | HK$68.90 |
| 100 - 240 | HK$6.55 | HK$65.50 |
| 250 + | HK$6.42 | HK$64.20 |
*price indicative
- RS Stock No.:
- 287-448
- Mfr. Part No.:
- ERZE14A561
- Manufacturer:
- Panasonic
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Varistor | |
| Varistor Voltage | 560 V | |
| Packaging | Bulk | |
| Clamping Voltage VC | 930V | |
| Clamping Current | 100A | |
| Mount Type | Surface | |
| Series | E | |
| Maximum AC Voltage | 300V ac | |
| Diameter | 16.5mm | |
| Maximum Surge Current | 40A | |
| Maximum DC Voltage | 390V dc | |
| Capacitance | 700pF | |
| Length | 20mm | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Thickness | 7.2mm | |
| Standards/Approvals | T10194, T10193, RoHS, GB, CQCGB | |
| Lead Pitch | 4mm | |
| Energy Rating | 0.02J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Varistor | ||
Varistor Voltage 560 V | ||
Packaging Bulk | ||
Clamping Voltage VC 930V | ||
Clamping Current 100A | ||
Mount Type Surface | ||
Series E | ||
Maximum AC Voltage 300V ac | ||
Diameter 16.5mm | ||
Maximum Surge Current 40A | ||
Maximum DC Voltage 390V dc | ||
Capacitance 700pF | ||
Length 20mm | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Thickness 7.2mm | ||
Standards/Approvals T10194, T10193, RoHS, GB, CQCGB | ||
Lead Pitch 4mm | ||
Energy Rating 0.02J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- ID
The Panasonic Varistors (ZNR Surge Absorbers) are designed to provide excellent protection against voltage surges with a large withstanding surge current capability, all within compact sizes. They efficiently absorb and suppress transient voltage spikes, ensuring the protection of sensitive electronic components. Suitable for both flow and reflow soldering processes, these varistors are ideal for integration into high-performance circuits where surge protection is crucial.
Low clamping voltage
RoHS compliant
