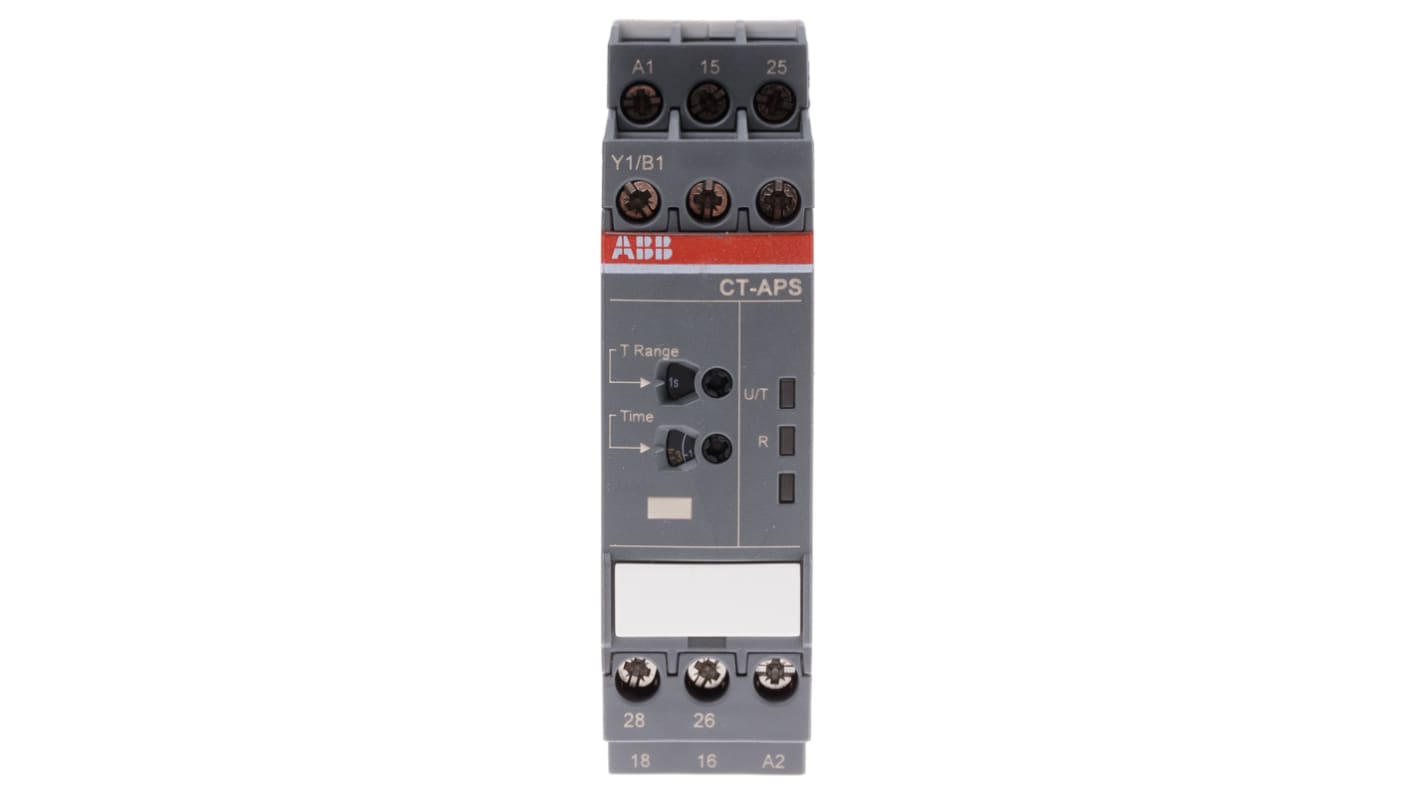

ABB DIN Rail Single Function Timer Relay, 24 → 240V ac/dc, DPDT, 0.05 s → 300h
- RS Stock No.:
- 746-7028
- Mfr. Part No.:
- 1SVR730180R0300 CT-APS.21S
- Manufacturer:
- ABB
View all Timer Relays
On back order for despatch 23/06/2023, delivery within 3 working days
Price Each
Was HK$1,232.05
You pay
HK$1,104.33
| units | Per unit |
| 1 - 24 | HK$1,104.33 |
| 25 - 49 | HK$1,049.13 |
| 50 + | HK$1,016.01 |
- RS Stock No.:
- 746-7028
- Mfr. Part No.:
- 1SVR730180R0300 CT-APS.21S
- Manufacturer:
- ABB
- COO (Country of Origin):
- DE
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
CT-APS Series Off Delay Timers
The CT-APS series is an electronic timer series from the CT-S range with true OFF-delay including 10 selectable time
ranges. All electronic timers from the CT-S range are available with two different terminal versions.
ranges. All electronic timers from the CT-S range are available with two different terminal versions.
Rated control supply voltage 24 → 48 Vdc, 24 → 240 Vac
OFF - Delay timer with auxiliary voltage
10 time ranges selectable between 0.05 s → 300 h
Control input with voltage - related triggering to start timing
Precise adjustment by front - face operating elements
Screw connection technology
Enclosure material for highest fire protection classification
Tool - free mounting and demounting on DIN - rail
1 C/O (SPDT) contact
Width of 22.5 mm
2 LEDs for status indication
OFF - Delay timer with auxiliary voltage
10 time ranges selectable between 0.05 s → 300 h
Control input with voltage - related triggering to start timing
Precise adjustment by front - face operating elements
Screw connection technology
Enclosure material for highest fire protection classification
Tool - free mounting and demounting on DIN - rail
1 C/O (SPDT) contact
Width of 22.5 mm
2 LEDs for status indication
Approvals
UL 508, CAN/CSA C22.2 No.14, GL, GOST, CB scheme, CCC, CE & C-Tick
Specifications
| Attribute | Value |
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Time Range | 0.05 s → 300h |
| Mode of Operation | OFF Delay |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Hours, Seconds |
| Maximum Voltage | 300V ac |
| Maximum Current | 4A |
| Power Supply | External |
| Terminal Type | Screw |
| Minimum Voltage | 12V |
| Switch Configuration | SPDT |
| Length | 85.6mm |
| Depth | 113.4mm |
| Width | 22.5mm |
| Minimum Current | 10mA |
| Contact Material | Cadmium Free |
| Time Delay | (Recovery) <50ms |
