- RS Stock No.:
- 238-4076
- Mfr. Part No.:
- PSA2703USC
- Manufacturer:
- Aim-TTi
On back order for despatch 24/05/2024, delivery within 3 working days
Added
Price Each
HK$18,451.41
Units | Per unit |
1 + | HK$18,451.41 |
- RS Stock No.:
- 238-4076
- Mfr. Part No.:
- PSA2703USC
- Manufacturer:
- Aim-TTi
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

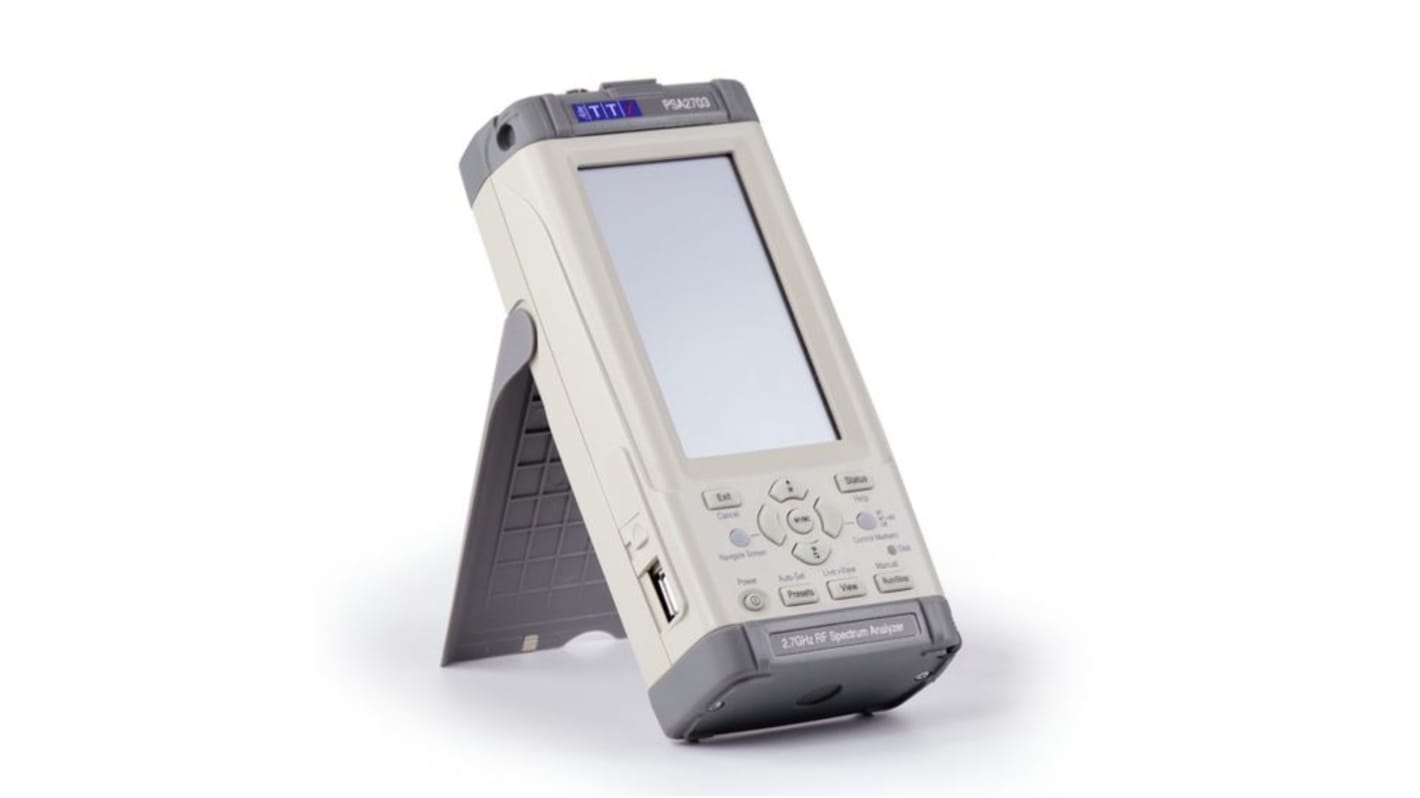

Aim-TTi PSA Series 3 Series Spectrum Analyser, 2.7 GHz Bandwidth, 3 h Battery Life - PSA2703USC
This portable spectrum analyser by Aim-TTi, with 2.7 GHz bandwidth from the PSA Series 3, is a powerful and versatile tool. It is designed to provide accurate RF analysis in a compact handheld device. The spectrum analyser offers efficient and precise frequency measurements, making it ideal for various applications in radio communication fields.
Features & Benefits
• Handheld spectrum analyser with a 2.7 GHz bandwidth for on-the-go analysis
• RF input through N connector for seamless connectivity
• Portable design with a 4.3 inch TFT display for clear visualisation of data
• Dual markers for precise frequency tracking
• USB interface for easy connectivity to external devices
• RF input through N connector for seamless connectivity
• Portable design with a 4.3 inch TFT display for clear visualisation of data
• Dual markers for precise frequency tracking
• USB interface for easy connectivity to external devices
Applications
• Interference Analysis
• Antenna Alignment
• Signal Strength Mapping
• Covert Transmitter Detection
• Spurious Emissions
• EMC Frequency Evaluations
• Antenna Alignment
• Signal Strength Mapping
• Covert Transmitter Detection
• Spurious Emissions
• EMC Frequency Evaluations
Can it provide accurate RF frequency measurements?
Yes, the spectrum analyser offers accurate frequency measurements up to 2.7 GHz.
Will it help in detecting interference in radio communications?
Yes, it is a valuable tool for interference analysis in various applications.
Is the device portable and lightweight for ease of use?
Yes, the handheld spectrum analyser is designed to be lightweight and portable.
Can it be connected to a PC for data transfer?
Yes, the spectrum analyser features a USB interface for seamless connectivity to a PC.
Does it come with dual markers for precise frequency tracking?
Yes, the device is equipped with dual markers for accurate frequency tracking.
Specifications
Attribute | Value |
---|---|
Bandwidth | 2.7GHz |
Number of Channels | 1 |
Wave Traces | Live, Reference |
Sweep Modes | Continuous, Single |
Setting Modes | Zero Span |
Series | PSA Series 3 |
Maximum Frequency | 2.7GHz |
Minimum Frequency | 1 MHz |
Frequency Stability | 1PPM |
Display Type | TFT |
Screen Size | 4.3in |
Markers | Dual |
RF Input | N Connector |
Interface Type | USB |
Desktop/Handheld | Handheld |
Plug Type | Universal |
Battery Life | 6 h |
Model Number p | PSA2703USC |
Height | 192mm |
Minimum Operating Temperature | +5°C |
Maximum Operating Temperature | +40°C |
Battery Type | Li-ion |
Weight | 580g |
Length | 92mm |
Width | 49mm |
Dimensions | 192 x 92 x 49 (HxLxW)mm |
