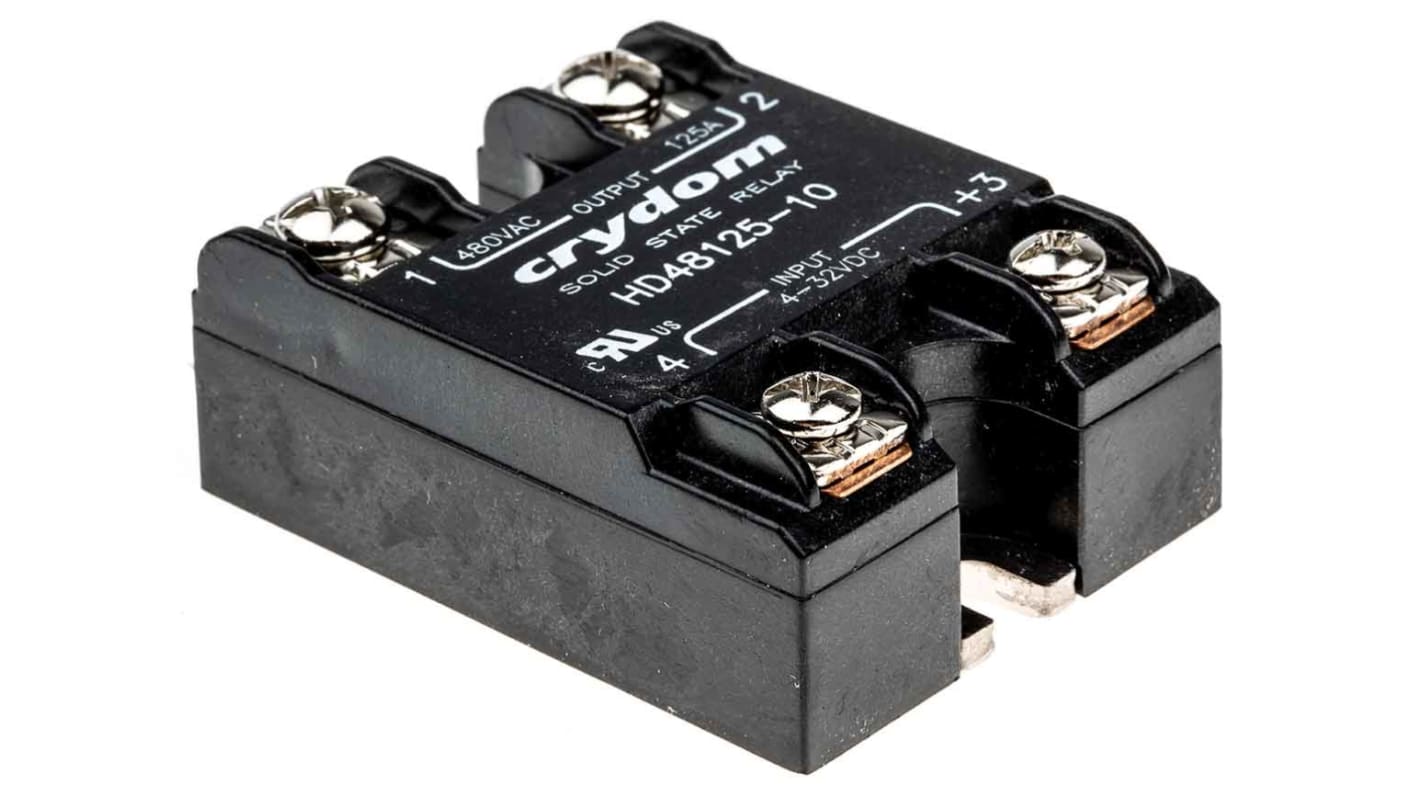

    Sensata / Crydom HD Series Solid State Relay, 125 A Load, Panel Mount, 530 V ac Load, 32 V Control

    Sensata / Crydom
    RS Stock No.:
    244-9110
    Mfr. Part No.:
    HD48125-10
    Manufacturer:
    Sensata / Crydom
    View all Solid State Relays
    11 In stock for delivery within 3 working days
    Add to Basket
    units

    Added

    Price Each

    HK$1,395.90

    unitsPer unit
    1 +HK$1,395.90
    RS Stock No.:
    244-9110
    Mfr. Part No.:
    HD48125-10
    Manufacturer:
    Sensata / Crydom

    Legislation and Compliance

    COO (Country of Origin):
    MX

    Product Details

    Sensata | Crydom Solid-State Relay, 125A Rated Load Current, Screw Terminals - HD48 Series - HD48125-10


    Take charge of your electrical loads using this solid-state relay from Sensata | Crydom. It switches on or off when energised, giving you close control over your equipment. Isolation between its input and output means there's minimal chance of power surges causing damage to your machinery. As it has no moving parts, there's minimal risk of wear for a long lifespan. You can put this device to work with heavy-duty loads, thanks to its rated load current of 125A. It's just the thing for controlling industrial lighting systems and motors on medical equipment.

    Features & Benefits


    • Flame-retardant housing for safety in the event of a fire
    • Screw terminals for quick and secure wiring
    • Wide operating temperature range between -40°C and +80°C means it holds its own in extreme environments
    • MTBF of over 11 million hours at +40°C for long-lasting performance

    Does this SSR come with a baseplate?


    Yes, you get a baseplate with the unit. It's made of aluminium for resistance to wear and corrosion, so it stands up to use in harsh environments.


    Instantaneous Switching

    Note

    Temperature can affect current rating; please consult the data sheet for potential derating.

    Specifications

    AttributeValue
    Maximum Load Current125 A
    Mounting TypePanel Mount
    Maximum Load Voltage530 V ac
    Minimum Load Voltage48 V ac
    Maximum Control Voltage32 V
    Minimum Control Voltage4 V dc
    Switching TypeInstantaneous
    Control Voltage Range4 → 32 V dc
    Minimum Load Current150 mA
    Terminal TypeScrew
    Output DeviceSCR
    Relay TypeSolid State Relay
    Maximum Turn On Time1/2 Cycle
    SeriesHD
    Dimensions45.7 x 58.4 x 23mm
    Standards MetCE, CSA, TUV, UL Listed
    Minimum Operating Temperature-40°C
    Height23mm
    Off State Leakage Current1 mArms
    Length45.7mm
    Operating Temperature Range-40 → +80°C
    Capacitance8pF
    Maximum Operating Temperature+80°C
    Depth58.4mm
