RS PRO RM1D Series Solid State Relay, 8 A Load, Surface Mount, 60 V ac/dc Load, 32V Control

View all Solid State Relays

Subtotal (1 unit)*

HK$584.00

Add to Basket
Select or type quantity
In Stock
  • 297 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +HK$584.00

*price indicative

RS Stock No.:
230-3313
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

8A

Product Type

Solid State Relay

Mount Type

Surface

Maximum Load Voltage

60V ac/dc

Minimum Load Voltage

1V ac/dc

Maximum Control Voltage

32V

Minimum Control Voltage

4.25V

Series

RM1D

Terminal Type

Screw

IP Rating

IP20

Switching Function

DC Switching

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Width

10.5 mm

Length

43mm

Standards/Approvals

CE, CSA, cUR, EMCD, LVD, RoHS, UL, UR

Height

25.4mm

Output Type

Thyristor

COO (Country of Origin):
CN

RS PRO DC Switching Solid State Relay - 8A

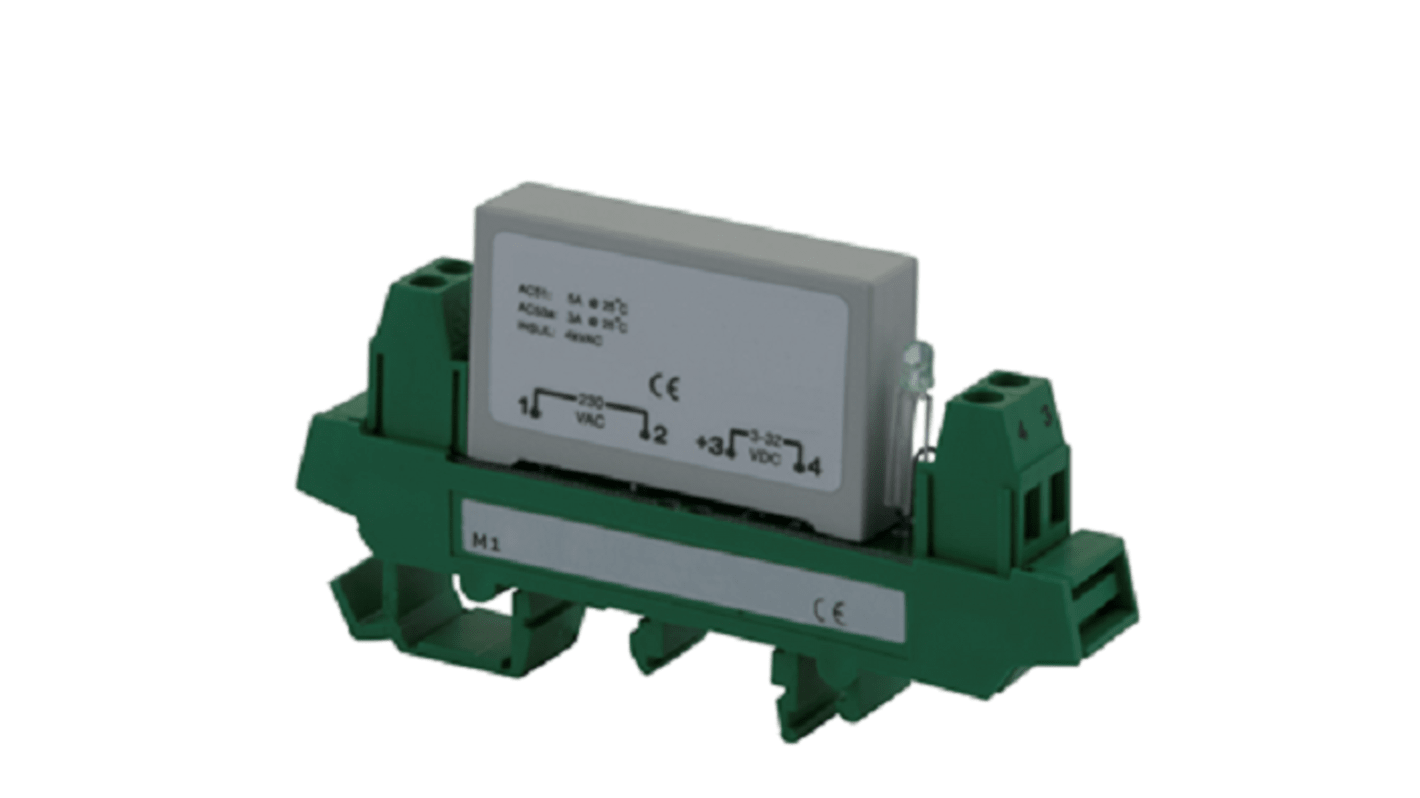

Introducing the RS PRO miniature DC solid state relay mounted on a DIN EN adapter. This solid-state relay is commonly used in applications where there's a need for fast switching of small DC loads with a high input/output insulation of more than 4000 VAC RMS. This SSR switches on and off in accordance with the applied control voltage and offers control visualisation by LED.

Features and Benefits


  • Miniature DC SSR mounted on DIN EN adapter

  • Transfer signals with electronic circuits

  • Control visualisation by LED

  • Surface mount technology

  • Potting compound flame retardant silicone rubber

  • Extended life, flexible encapsulation

    • General Specification


  • 8 A, 60 VDC

  • Control voltage: 4.25 VDC – 32 VDC

  • Isolation input / output: 4000 VAC rms

  • Operating Temperature: -20°C to 80°C

  • Blocking Voltage: 60V DC

  • Dropout Voltage: 1 VDC

  • Minimal Operational Load: 1mA

  • Switching Frequency: <100Hz

  • Off state leakage current: <0.01mADC

    • Dimensions


  • 43 mm x 25.4 mm x 10.5 mm

    • Applications


  • Heaters

  • Motors

  • Valves

  • Solenoids
