    Molex 1.27mm 6 Way Female Picoflex IDC to Female Picoflex IDC Flat Ribbon Cable, Grey Sheath, 150mm Length

    RS Stock No.:
    904-8203
    Mfr. Part No.:
    92315-0615
    Manufacturer:
    Molex
    Molex

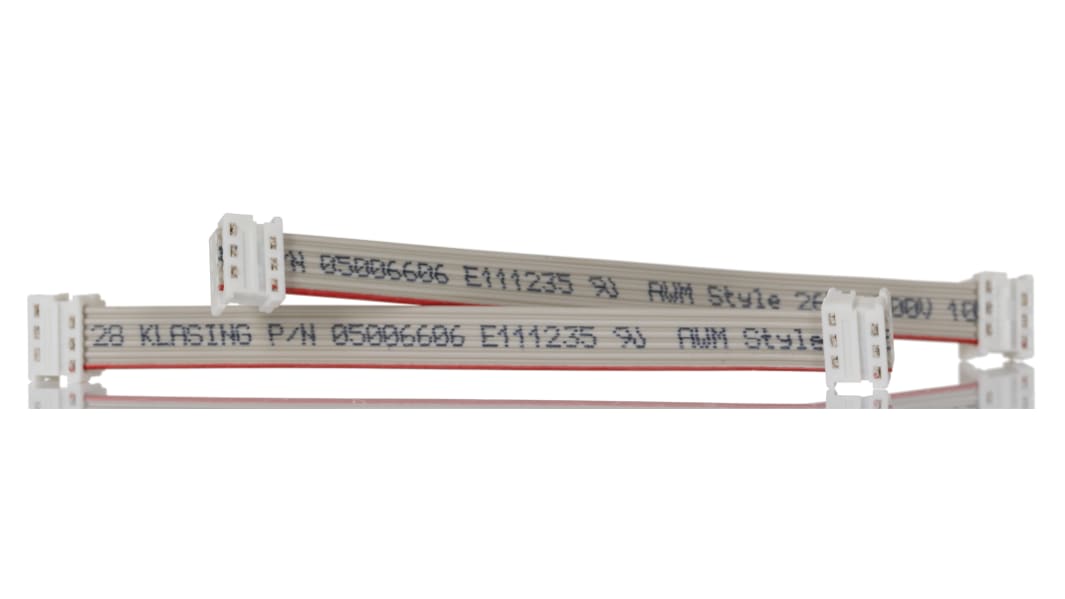

    The image is for reference only, please refer to product details and specifications

    View all Ribbon Cable
    50 In stock for delivery within 3 working days
    Add to Basket
    units

    Added

    Price Each (In a Pack of 5)

    Was HK$14.904

    You pay

    HK$13.168

    unitsPer unitPer Pack*
    5 - 120HK$13.168HK$65.84
    125 - 245HK$12.88HK$64.40
    250 +HK$12.602HK$63.01
    *price indicative
    RS Stock No.:
    904-8203
    Mfr. Part No.:
    92315-0615
    Manufacturer:
    Molex

    Product overview and Technical data sheets


    Legislation and Compliance


    Product Details

    Molex 1.27 mm Pitch Picoflex PF-50 Cable Assemblies, 92315 Series


    Molex 1.27mm pitch Picoflex PF-50 cable assemblies that provide savings in time and investment in tooling. Each cable assembly consists of two 90327 Series Picoflec IDT connectors, C-style on UL 2651, 28 AWG (7 strand) ribbon cable. These 1.27mm PF-50 cable assemblies are available with a various number of circuit numbers and cable lengths and mate with series 90325, 90800, 90779, 90715 and 90814 Picoflex PF-50 headers.

    Contact Material: Phosphor Bronze alloy, tin plated
    Cable Insulation: Gray PVC
    IDT housing Material: Nylon 6/6, UL 94V-0


    1.27mm Wire to Board IDT - Molex Picoflex PF-50 Series


    The Picoflex Series from Molex is a reliable range of Wire to Board connectors offering designers more options for high-density applications where standard discrete wire and flat flexible connectors are not appropriate. Picoflex IDT connectors are ideal for automotive and consumer electronics industries.


    50% space saving compared with traditional pitch
    Pre-terminated cable assemblies available
    Lower profile (mated height only 6.4mm)
    Excellent polarisation features and integral strain relief
    High resistance to vibration/shock

    Specifications

    AttributeValue
    Connector 1Picoflex IDC
    Ribbon Cable TypeFlat
    Connector 2Picoflex IDC
    Pitch1.27mm
    Terminated/UnterminatedTerminated
    Connector 1 GenderFemale
    Connector 2 GenderFemale
    Number of Ways6
    Screened/UnscreenedUnscreened
    American Wire Gauge28 AWG
    SeriesPicoflex
    Length150mm
    Sheath ColourGrey
    Voltage Rating250 V
    Connector B GenderFemale
    Connector BPicoflex IDC
    Standards MetRoHS Compliant, UL
    Size of Strands7
    Connector APicoflex IDC
    Current Rating1.2 A
    Connector A GenderFemale
