    Molex 1mm 4 Way Flat Ribbon Cable, Grey Sheath, 152mm Length

    RS Stock No.:
    684-2308
    Mfr. Part No.:
    98267-0711
    Manufacturer:
    Molex
    Molex

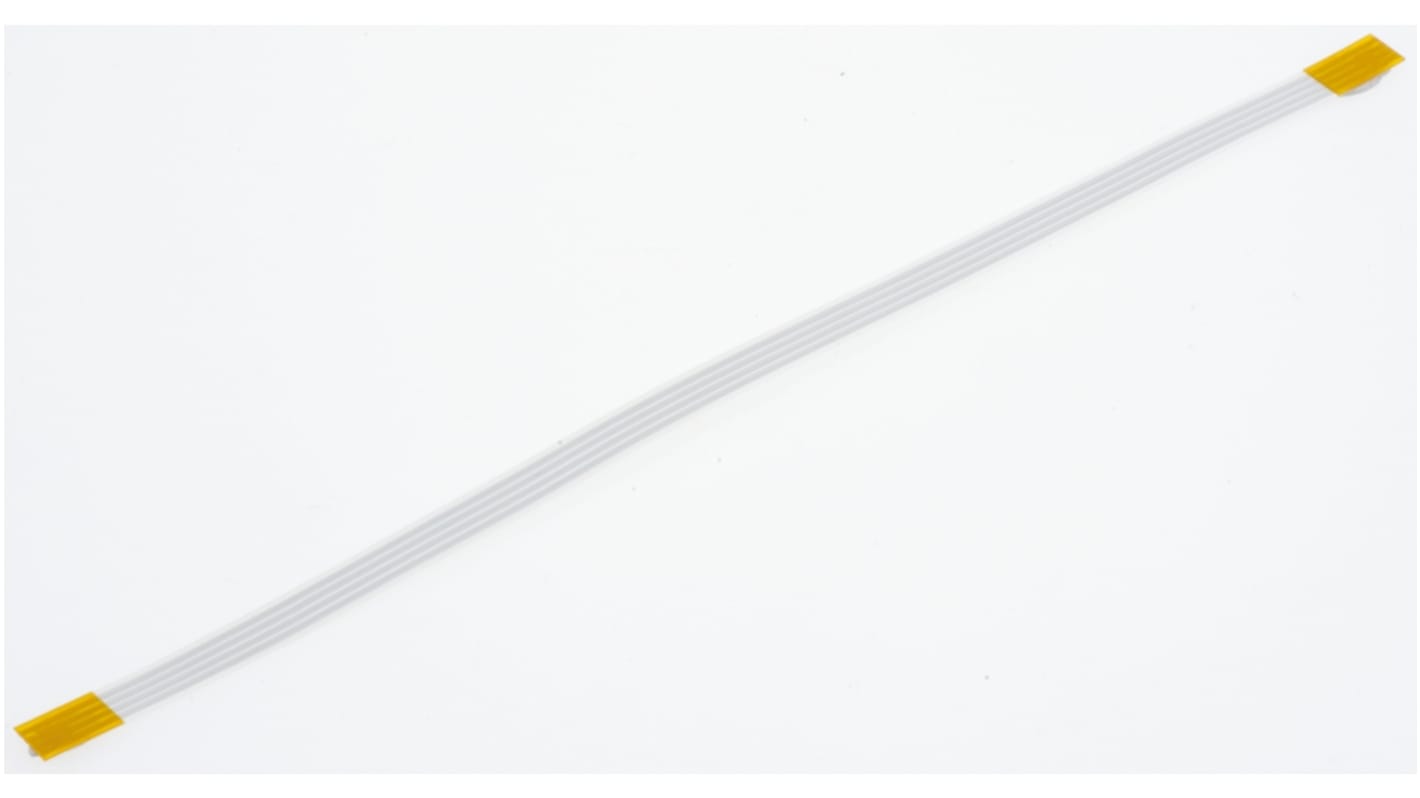

    The image is for reference only, please refer to product details and specifications

    View all Ribbon Cable
    580 In stock for delivery within 3 working days
    Add to Basket
    units

    Added

    Price Each (In a Pack of 5)

    Was HK$18.278

    You pay

    HK$14.716

    unitsPer unitPer Pack*
    5 - 245HK$14.716HK$73.58
    250 - 495HK$14.394HK$71.97
    500 +HK$14.084HK$70.42
    *price indicative
    RS Stock No.:
    684-2308
    Mfr. Part No.:
    98267-0711
    Manufacturer:
    Molex
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    1.00 mm Pitch Premo-Flex FFC Jumpers (152 mm long x 0.22 mm thick)


    From Molex, this rang of Premo-Flex FFC ribbon cable jumpers feature Type A connectors, and are ideal for when cable management and flexibility is a must. Available in 4-way to 30-way, these light-weight and low-profile ribbon cables are suitable for various electronic applications and are found in many devices, such as PCs and printers.

    Features


    • Voltage - 60 V ac

    • 1 mm pitch

    • 0.22mm Cable thickness

    • Max operating temperature of 105°C

    • Meets industry-standard ZIF (zero insertion force) connector requirements

    • Great for connections between PCB's

    • Easy assembly in hard to reach applications

    Variations


    Molex offers variations of the number of circuits (loaded) in these range of cables,
    4589169 - 6
    4589175 - 8
    4589181 - 10
    4589197 - 12
    4589204 - 14
    4589210 - 16
    4589226 - 18
    4589232 - 20
    4589248 - 22
    4589254 - 24
    4589276 - 26
    4589282 - 28
    4589298 - 30
    6842308 - 4

    What is Pitch?


    The pitch of a cable is the distance from the central part of one conductor to the central part of another conductor

    Molex 4-Way Unscreened Flat Ribbon Cable, 152mm Length, Grey - PREMO-FLEX FFC JUMPER Series - 98267-0711


    Use this flat ribbon cable from Molex to connect internal peripheral devices in computers. The FFC (flexible flat cable) is composed of four individual wires placed parallel to each other and taped at their contact ends so they don't disintegrate. Its contacts are made of highly conductive copper material that ensures a reliable connection. They're also tin-plated for corrosion resistance, so they won't rust. With a narrow pitch of 1mm, this cable is a practical choice for use in applications with limited space.

    • Reel length of 152mm for versatile use without excess cable
    • High flexibility for use in awkward setups
    • Wide operating temperature range of -40°C to +105°C for use in harsh environments
    • Low weight of 0.464g means it's easy to handle and won't put a strain on your PCB (printed circuit board)
    • Meets industry-standard ZIF (zero insertion force) connector requirements so it's very easy to insert

    Applications


    • IT equipment
    • Consumer electronics
    • Car accessories

    What is meant by 'cable pitch'?


    The pitch of a cable is the distance between the centres of each of its conductors.

    Note

    4x6

    Approvals

    UL (E60389); CSA (LR20812)


    1.0mm FFC/FPC Connectors – Molex

    Specifications

    AttributeValue
    Ribbon Cable TypeFlat
    Pitch1mm
    Terminated/UnterminatedUnterminated
    Number of Ways4
    Screened/UnscreenedUnscreened
    SeriesPREMO-FLEX FFC JUMPER
    Length152mm
    Hi-FlexYes
    Sheath ColourGrey
    Maximum Operating Temperature+105°C
    Voltage Rating60 V ac
    Minimum Operating Temperature-40°C
    JacketedYes
    High DensityYes
    Operating Temperature Range-40 → +105 °C
    Current Rating1.2 A
