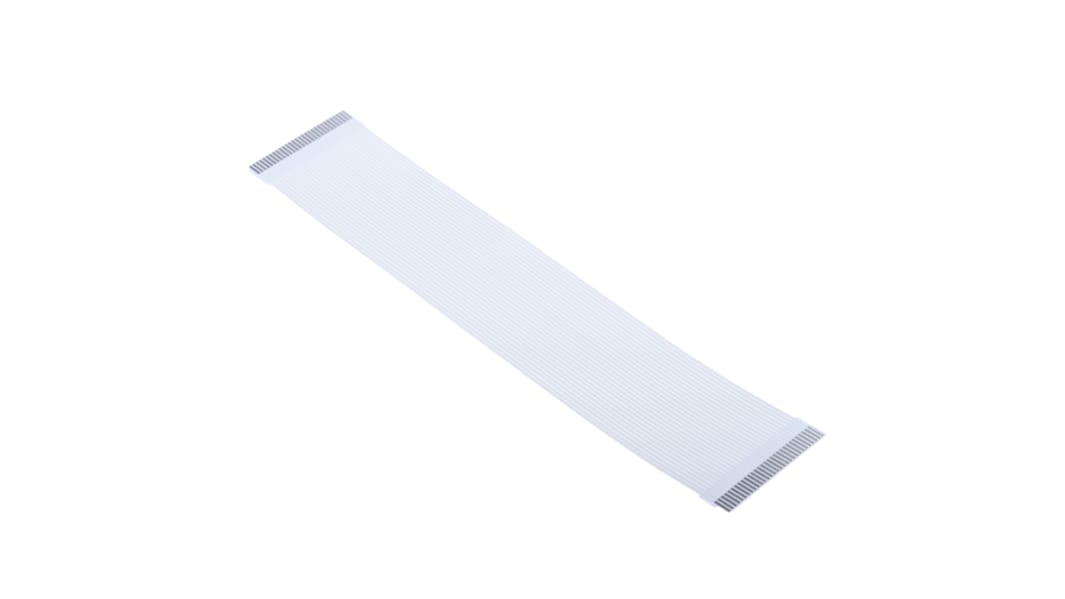

Molex 1mm 30 Way FFC Ribbon Cable, Grey Sheath, 152mm Length

RS Stock No.:: 458-9298
Mfr. Part No.:: 98267-0475
Manufacturer:: Molex

Molex 1mm 30 Way FFC Ribbon Cable, Grey Sheath, 152mm Length

745 In stock for delivery within 3 working days

Added

Price Each (In a Pack of 5)

Was HK$33.724

You pay

HK$27.152

units	Per unit	Per Pack*
5 - 245	HK$27.152	HK$135.76
250 - 495	HK$26.556	HK$132.78
500 +	HK$25.986	HK$129.93
*price indicative

RS Stock No.:: 458-9298
Mfr. Part No.:: 98267-0475
Manufacturer:: Molex

Product overview and Technical data sheets

Legislation and Compliance

Product Details

1.00 mm Pitch Premo-Flex FFC Jumpers (152 mm long x 0.22 mm thick)

From Molex, this rang of Premo-Flex FFC ribbon cable jumpers feature Type A connectors, and are ideal for when cable management and flexibility is a must. Available in 4-way to 30-way, these light-weight and low-profile ribbon cables are suitable for various electronic applications and are found in many devices, such as PCs and printers.

Features

Voltage - 60 V ac

1 mm pitch

0.22mm Cable thickness

Max operating temperature of 105°C

Meets industry-standard ZIF (zero insertion force) connector requirements

Great for connections between PCB's

Easy assembly in hard to reach applications

Variations

Molex offers variations of the number of circuits (loaded) in these range of cables,
4589169 - 6
4589175 - 8
4589181 - 10
4589197 - 12
4589204 - 14
4589210 - 16
4589226 - 18
4589232 - 20
4589248 - 22
4589254 - 24
4589276 - 26
4589282 - 28
4589298 - 30
6842308 - 4

What is Pitch?

The pitch of a cable is the distance from the central part of one conductor to the central part of another conductor

1.0mm FFC/FPC Connectors – Molex

Specifications

Attribute	Value
Ribbon Cable Type	FFC
Pitch	1mm
Terminated/Unterminated	Unterminated
Number of Ways	30
Series	Premo-Flex
Length	152mm
Hi-Flex	Yes
Sheath Colour	Grey
Voltage Rating	60 V ac
Standards Met	RoHS Compliant
Operating Temperature Range	-40 → +105 °C
High Density	Yes
Current Rating	1.2 A
