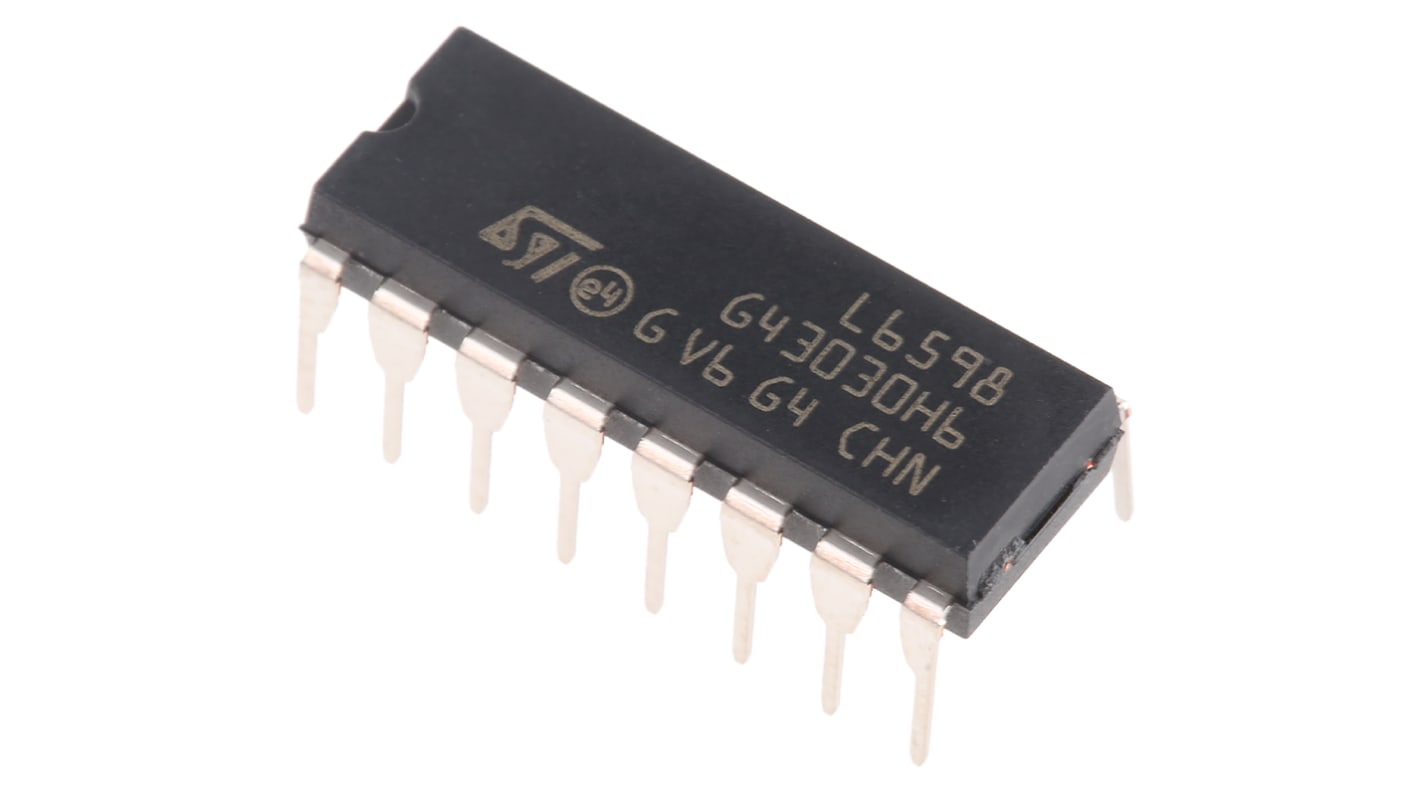

STMicroelectronics PWM Controller, 400 kHz 16.6V 16-Pin, PDIP
- RS Stock No.:
- 686-8433
- Mfr. Part No.:
- L6598
- Manufacturer:
- STMicroelectronics
The image is for reference only, please refer to product details and specifications
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 686-8433
- Mfr. Part No.:
- L6598
- Manufacturer:
- STMicroelectronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Switching Frequency | 400kHz | |
| Product Type | PWM Controller | |
| Start-up Supply Current | 0.25mA | |
| Supply Current | 25mA | |
| Output Current | 450mA | |
| Zero Power Detection | No | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Minimum Supply Voltage | 10V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 16.6V | |
| Topology | Half Bridge Resonant | |
| Minimum Operating Temperature | -40°C | |
| Maximum Duty Cycle | 52% | |
| PWM Controller Type | Resonant | |
| Maximum Operating Temperature | 150°C | |
| Series | L6598 | |
| Length | 20mm | |
| Standards/Approvals | RoHS | |
| Height | 5.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Switching Frequency 400kHz | ||
Product Type PWM Controller | ||
Start-up Supply Current 0.25mA | ||
Supply Current 25mA | ||
Output Current 450mA | ||
Zero Power Detection No | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Minimum Supply Voltage 10V | ||
Pin Count 16 | ||
Maximum Supply Voltage 16.6V | ||
Topology Half Bridge Resonant | ||
Minimum Operating Temperature -40°C | ||
Maximum Duty Cycle 52% | ||
PWM Controller Type Resonant | ||
Maximum Operating Temperature 150°C | ||
Series L6598 | ||
Length 20mm | ||
Standards/Approvals RoHS | ||
Height 5.1mm | ||
Automotive Standard No | ||
Resonant Controllers, STMicroelectronics
Resonant controllers include primary controllers for half-bridge topologies, designed to provide high efficiency under any load conditions, as well as high noise immunity. They implement a high voltage half-bridge driver that directly drives two power MOSFETs. The resonant controllers have a dedicated timing section to set soft start duration and minimum operating frequency.
