Texas Instruments 8-Pin, CDIP 5-Channel PWM Controller, 500 kHz, 2.5V, Through Hole
- RS Stock No.:
- 178-5493
- Mfr. Part No.:
- UC1845J
- Manufacturer:
- Texas Instruments

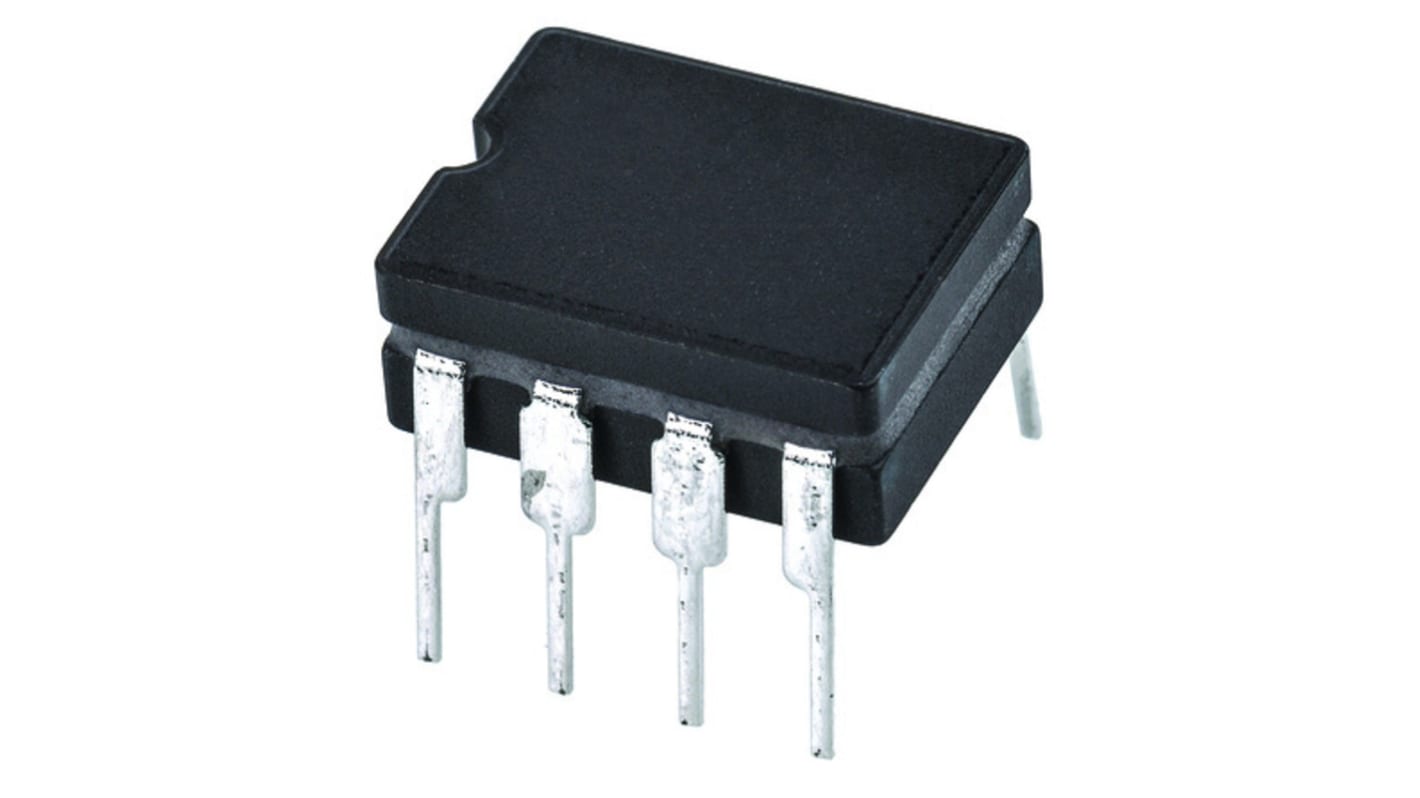

The image is for reference only, please refer to product details and specifications
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 178-5493
- Mfr. Part No.:
- UC1845J
- Manufacturer:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Switching Frequency | 500kHz | |
| Product Type | PWM Controller | |
| Output Voltage | 5.05V | |
| Supply Current | 4mA | |
| Zero Power Detection | No | |
| Output Current | 1A | |
| Number of Outputs | 5 | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | -55V | |
| Package Type | CDIP | |
| Maximum Supply Voltage | 2.5V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Duty Cycle | 50% | |
| PWM Controller Type | Current Mode | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Width | 7.11mm | |
| Height | 4.57mm | |
| Length | 10.16mm | |
| Series | UC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Switching Frequency 500kHz | ||
Product Type PWM Controller | ||
Output Voltage 5.05V | ||
Supply Current 4mA | ||
Zero Power Detection No | ||
Output Current 1A | ||
Number of Outputs 5 | ||
Mount Type Through Hole | ||
Minimum Supply Voltage -55V | ||
Package Type CDIP | ||
Maximum Supply Voltage 2.5V | ||
Pin Count 8 | ||
Minimum Operating Temperature -55°C | ||
Maximum Duty Cycle 50% | ||
PWM Controller Type Current Mode | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Width 7.11mm | ||
Height 4.57mm | ||
Length 10.16mm | ||
Series UC | ||
Automotive Standard No | ||
PWM Controllers 500kHz, Texas Instruments
From Texas Instruments, a range of Pulse Width Modulation controllers and associated devices to suit a variety of applications and specifications.
PWM (Pulse Width Modulation) Controllers, Texas Instruments
