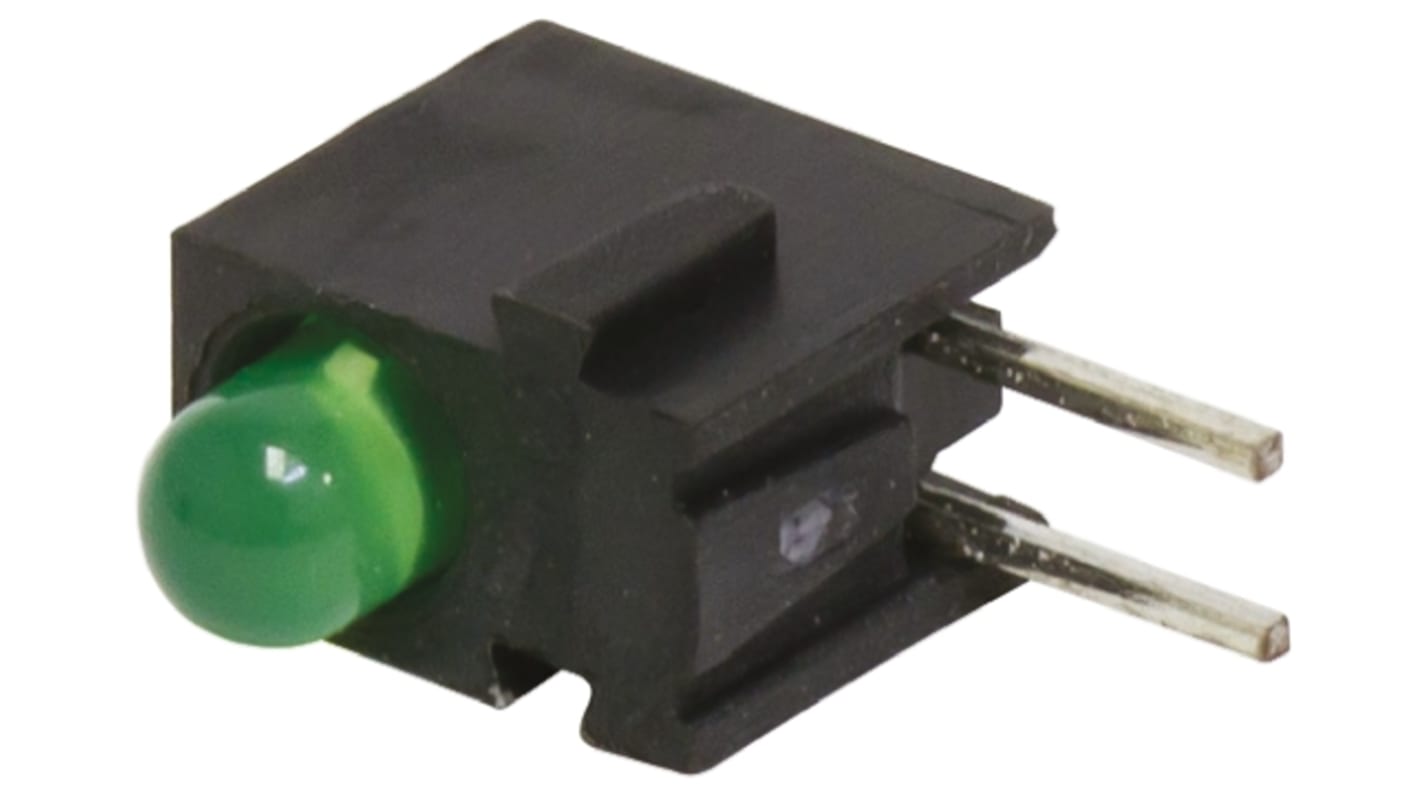

Bivar H100CGD Green Right Angle PCB LED Indicator 3 mm (T-1), 1 LEDs 2.6 V
- RS Stock No.:
- 752-9072
- Mfr. Part No.:
- H100CGD
- Manufacturer:
- Bivar
The image is for reference only, please refer to product details and specifications
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 752-9072
- Mfr. Part No.:
- H100CGD
- Manufacturer:
- Bivar
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bivar | |
| Product Type | PCB LED Indicator | |
| LED Colour | Green | |
| Number of LEDs | 1 | |
| Mount Type | Through Hole | |
| Maximum Forward Current | 20mA | |
| Number of Pins | 2 | |
| Viewing Angle | 45 ° | |
| Minimum Supply Voltage | 2.6V | |
| LED Orientation | Right Angle | |
| Multicolour/Single Colour | Single Colour | |
| Luminous Intensity | 30mcd | |
| Standards/Approvals | RoHS | |
| Length | 8.7mm | |
| Lens Colour | Green | |
| Lens Finish | Diffused | |
| LED Size | 3 mm (T-1) | |
| Select all | ||
|---|---|---|
Brand Bivar | ||
Product Type PCB LED Indicator | ||
LED Colour Green | ||
Number of LEDs 1 | ||
Mount Type Through Hole | ||
Maximum Forward Current 20mA | ||
Number of Pins 2 | ||
Viewing Angle 45 ° | ||
Minimum Supply Voltage 2.6V | ||
LED Orientation Right Angle | ||
Multicolour/Single Colour Single Colour | ||
Luminous Intensity 30mcd | ||
Standards/Approvals RoHS | ||
Length 8.7mm | ||
Lens Colour Green | ||
Lens Finish Diffused | ||
LED Size 3 mm (T-1) | ||
- COO (Country of Origin):
- CN
Bivar H100Cxx Series T-1 (3mm) PCB LED Indicators
The H100Cxx series, from Bivar, are interlocking right-angle PCB indicator LED assemblies. Precision moulded, with interlocking housings, these single level PCB indicators improve uniformity and simplify assembly.
PCB LED Indicators, Bivar
