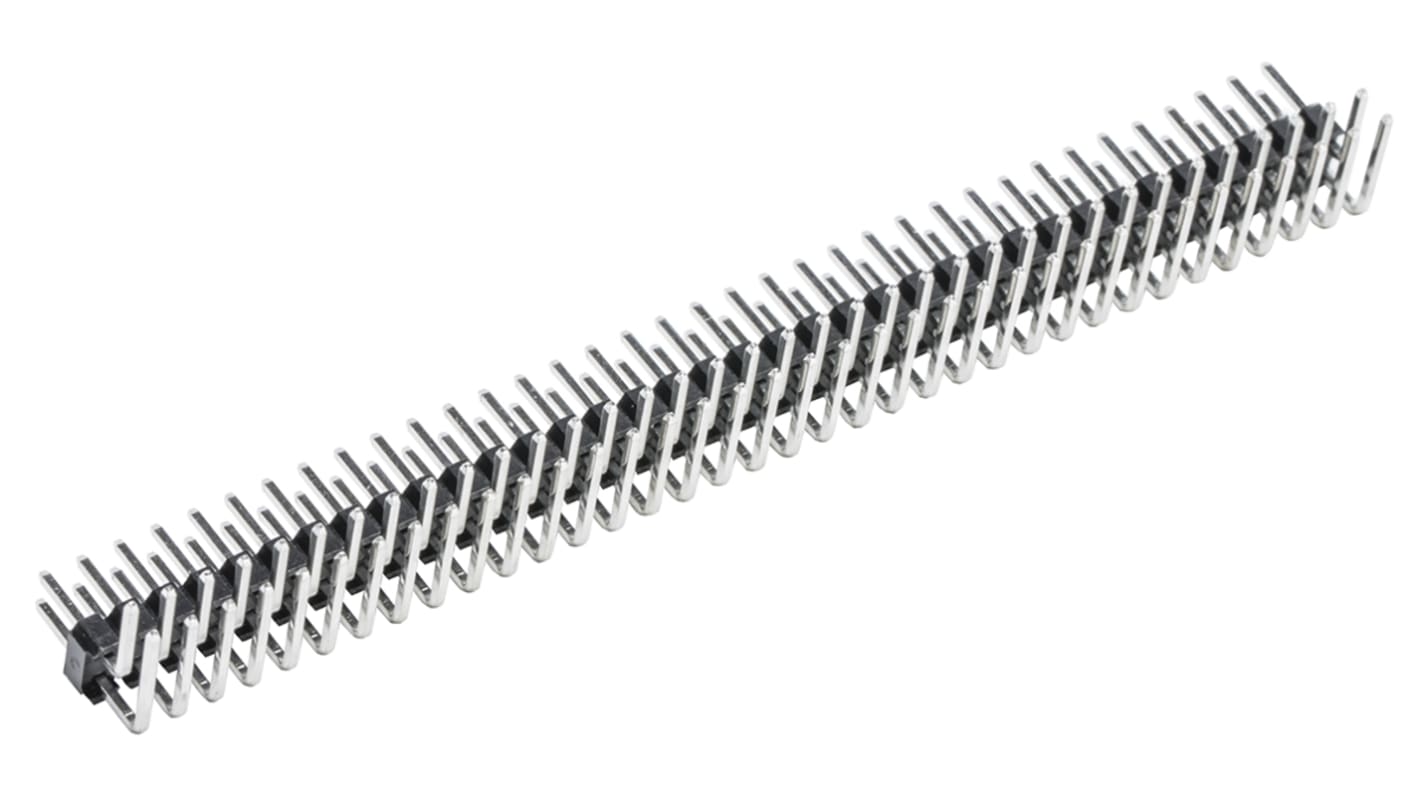

RS PRO Right Angle Through Hole Pin Header, 72 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
- RS Stock No.:
- 251-8468
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 pack of 10 units)*
HK$173.20
FREE delivery for orders over HK$250.00
In Stock
- 290 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 140 | HK$17.32 | HK$173.20 |
| 150 - 490 | HK$16.80 | HK$168.00 |
| 500 - 990 | HK$16.28 | HK$162.80 |
| 1000 - 4990 | HK$15.94 | HK$159.40 |
| 5000 + | HK$13.12 | HK$131.20 |
*price indicative
- RS Stock No.:
- 251-8468
- Manufacturer:
- RS PRO
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pin Header | |
| Pitch | 2.54mm | |
| Current | 4A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 72 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -65°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 5.1mm | |
| Mating Pin Length | 4.8mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pin Header | ||
Pitch 2.54mm | ||
Current 4A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 72 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature -65°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 5.1mm | ||
Mating Pin Length 4.8mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TW
90° Headers
Various pin heights and PCB tail lengths
Can be snapped to desired length
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
