Molex Mini-Fit Sr Series Straight Through Hole PCB Header, 6 Contact(s), 10 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 178-9657
- Mfr. Part No.:
- 43915-1201
- Manufacturer:
- Molex

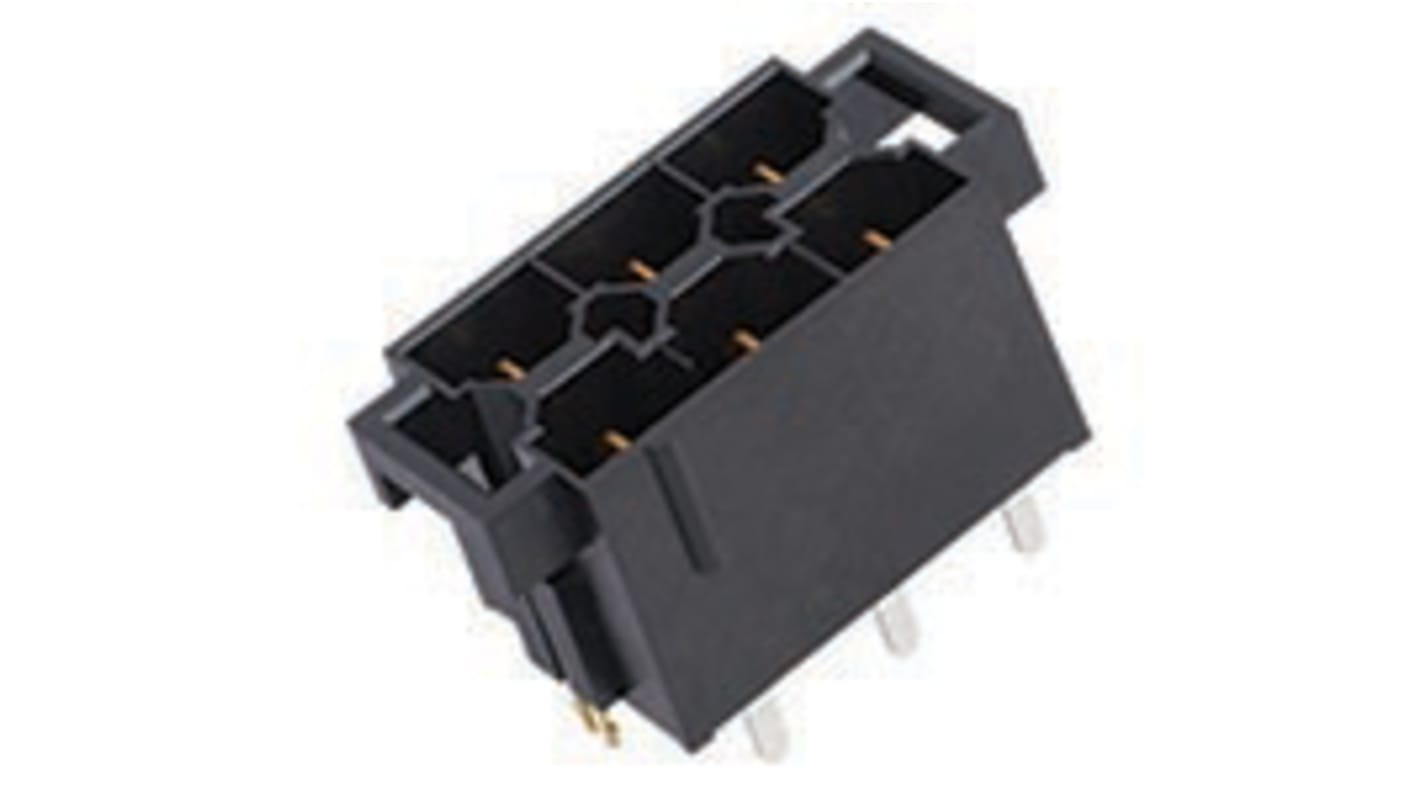

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 tray of 196 units)*
HK$35,353.892
FREE delivery for orders over HK$250.00
Temporarily out of stock
- Shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 196 - 196 | HK$180.377 | HK$35,353.89 |
| 392 - 588 | HK$176.769 | HK$34,646.72 |
| 784 + | HK$173.234 | HK$33,953.86 |
*price indicative
- RS Stock No.:
- 178-9657
- Mfr. Part No.:
- 43915-1201
- Manufacturer:
- Molex
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | Mini-Fit Sr | |
| Product Type | PCB Header | |
| Pitch | 10mm | |
| Current | 50A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 10mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.5mm | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 600 V | |
| Distrelec Product Id | 304-57-235 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series Mini-Fit Sr | ||
Product Type PCB Header | ||
Pitch 10mm | ||
Current 50A | ||
Housing Material Thermoplastic | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 10mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.5mm | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 600 V | ||
Distrelec Product Id 304-57-235 | ||
- COO (Country of Origin):
- MX
10.00mm Pitch Mini-Fit Sr. Header, Dual Row, Vertical, 1.57mm PCB Thickness, 0.76μm Gold (Au) Selective Plating, 6 Circuits
