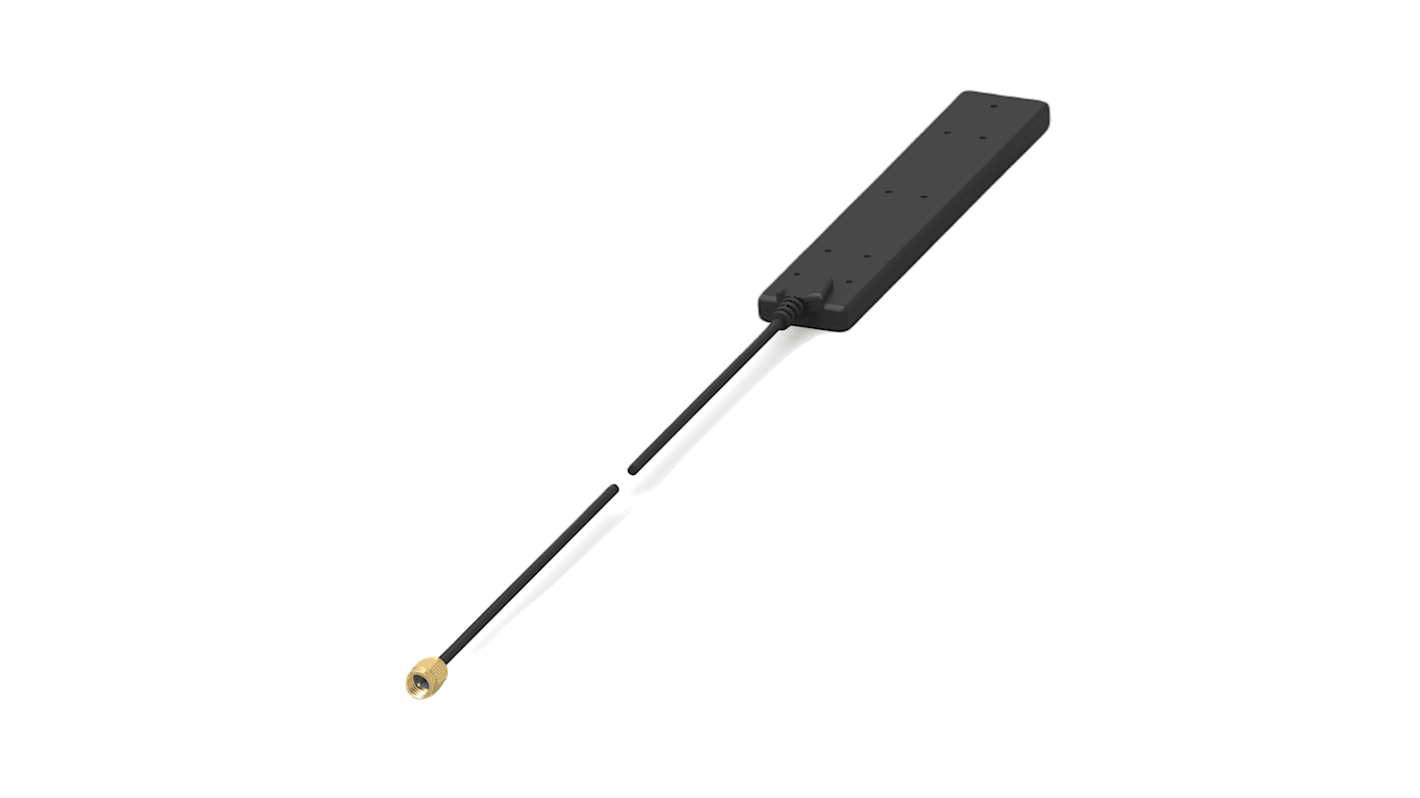

TE Connectivity L000618-03 Terminal Multiband Antenna with SMA Male Connector, 4G (LTE)

The Laird External Antennas VDP Industrial antennas are durable, low profile, IP67 rated, and UV protected. They mount permanently to non conductive surfaces using the integrated adhesive patch and connect using RG-174/U low loss cable terminated in an SMA male pin or FAKRA-C connector. The VDP Industrial series offers rugged remote mount dipole antennas having excellent performance for all common 5G and LTE bands, cellular IoT applications, GNSS/GPS and Wi-Fi/ISM.

Low loss coaxial cable improve performance at higher frequencies
High efficiency across all bands
Low profile of 115.0 mm x 22.0 mm x 6.3 mm
Durable UL 2556 SECTION 4.2.8.5 UV protected radome
IP67 rated for heavy duty outdoor use
Low loss RG-174/U coaxial cable for improved performance at higher frequencies
SMA male plug or FAKRA-C connector

• Worldwide 5G, LTE, UMTS and GSM
• Cellular IoT: LTE-M (Cat-M1) and NB-IoT
• Frequency bands
– T-Mobile: band 71
– AT&T: bands 12, 14, 17
– Verizon: band 13
– Europe: bands 8, 20
– Latin America: bands 5, 28
– Asia Pacific: bands 5, 8, 20, 28
• Wi-Fi/ISM
• Global Navigation (GNSS)
• Internet of Things devices
