Honeywell Technologies Through Hole Hall Effect Sensor 3 V 26V, IC, TO-92, 3-Pin
- RS Stock No.:
- 236-2751
- Mfr. Part No.:
- SS460S
- Manufacturer:
- Honeywell

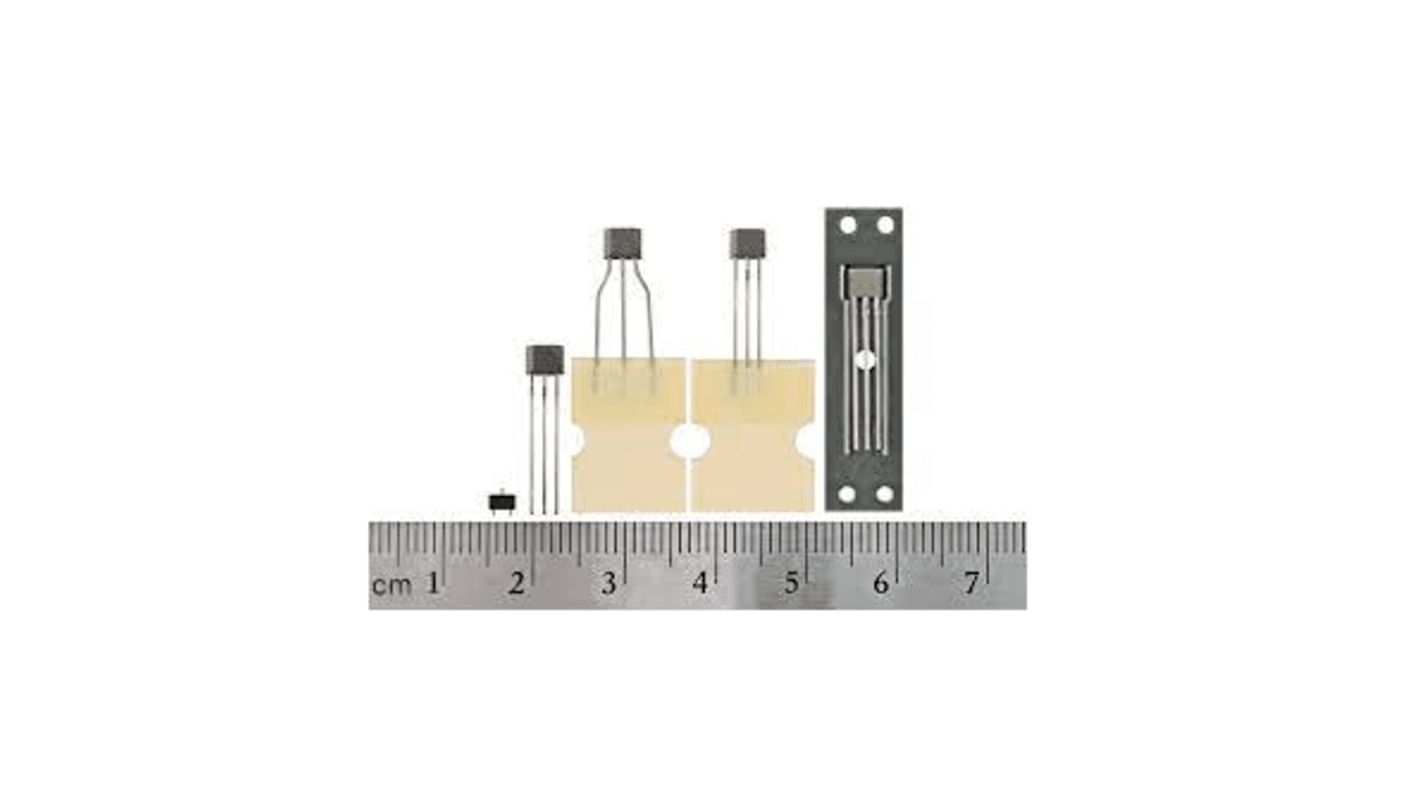

The image is for reference only, please refer to product details and specifications
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
HK$54.30
FREE delivery for orders over HK$250.00
In Stock
- 2,005 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | HK$10.86 | HK$54.30 |
| 50 - 95 | HK$10.66 | HK$53.30 |
| 100 - 245 | HK$10.46 | HK$52.30 |
| 250 - 995 | HK$10.24 | HK$51.20 |
| 1000 + | HK$10.02 | HK$50.10 |
*price indicative
- RS Stock No.:
- 236-2751
- Mfr. Part No.:
- SS460S
- Manufacturer:
- Honeywell
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Minute | |
| Product Type | Hall Effect Sensor | |
| Technology | Digital | |
| Mount Type | Through Hole | |
| Interface Type | IC | |
| Magnetic Type | Bipolar | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 26V | |
| Package Type | TO-92 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Width | 1.57mm | |
| Standards/Approvals | RoHS | |
| Length | 4.06mm | |
| Height | 3mm | |
| Supply Current | 20mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Minute | ||
Product Type Hall Effect Sensor | ||
Technology Digital | ||
Mount Type Through Hole | ||
Interface Type IC | ||
Magnetic Type Bipolar | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 26V | ||
Package Type TO-92 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Width 1.57mm | ||
Standards/Approvals RoHS | ||
Length 4.06mm | ||
Height 3mm | ||
Supply Current 20mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Honeywell Hall Effect Sensor, 20mA Supply Current, 3V Minimum Supply Voltage - SS460S
This hall-effect sensor is a Compact digital magnetic switch designed for through-hole mounting in small-footprint electronics. It operates from low-voltage to mid-voltage supplies and functions as a bipolar magnetic detector. The device is intended for environments requiring a miniature sensor with standard leaded packaging and RoHS conformity.
Features and Benefits:
• 20 mA supply current enabling predictable power budgeting
• 3 V to 26 V supply range allowing low-voltage operation
• Bipolar magnetic detection supporting north and south pole switching
• Operating range -40 °C to 150 °C permitting high-temperature deployment
• TO-92 through-hole package simplifying prototype and repair work
• 3 V to 26 V supply range allowing low-voltage operation
• Bipolar magnetic detection supporting north and south pole switching
• Operating range -40 °C to 150 °C permitting high-temperature deployment
• TO-92 through-hole package simplifying prototype and repair work
Applications
• Suitable for position sensing in Compact assemblies
• Ideal for magnetic polarity detection in control circuits
• Used with low-voltage systems requiring digital switching
• Can be used for thermally stable installations in hostile environments
• Suitable for hobbyist and production through-hole prototypes
• Ideal for magnetic polarity detection in control circuits
• Used with low-voltage systems requiring digital switching
• Can be used for thermally stable installations in hostile environments
• Suitable for hobbyist and production through-hole prototypes
What mounting method does it require?
It is supplied in a TO-92 style package intended for through-hole insertion on boards.
How many electrical connections are needed for integration?
The device uses a three-pin Interface for power, ground and digital output.
Is the device compliant with hazardous substance regulations?
It meets RoHS standards for restricted substances.
Does it support automotive-grade certification?
It does not carry automotive-standard approval and is not specified as automotive-grade.
