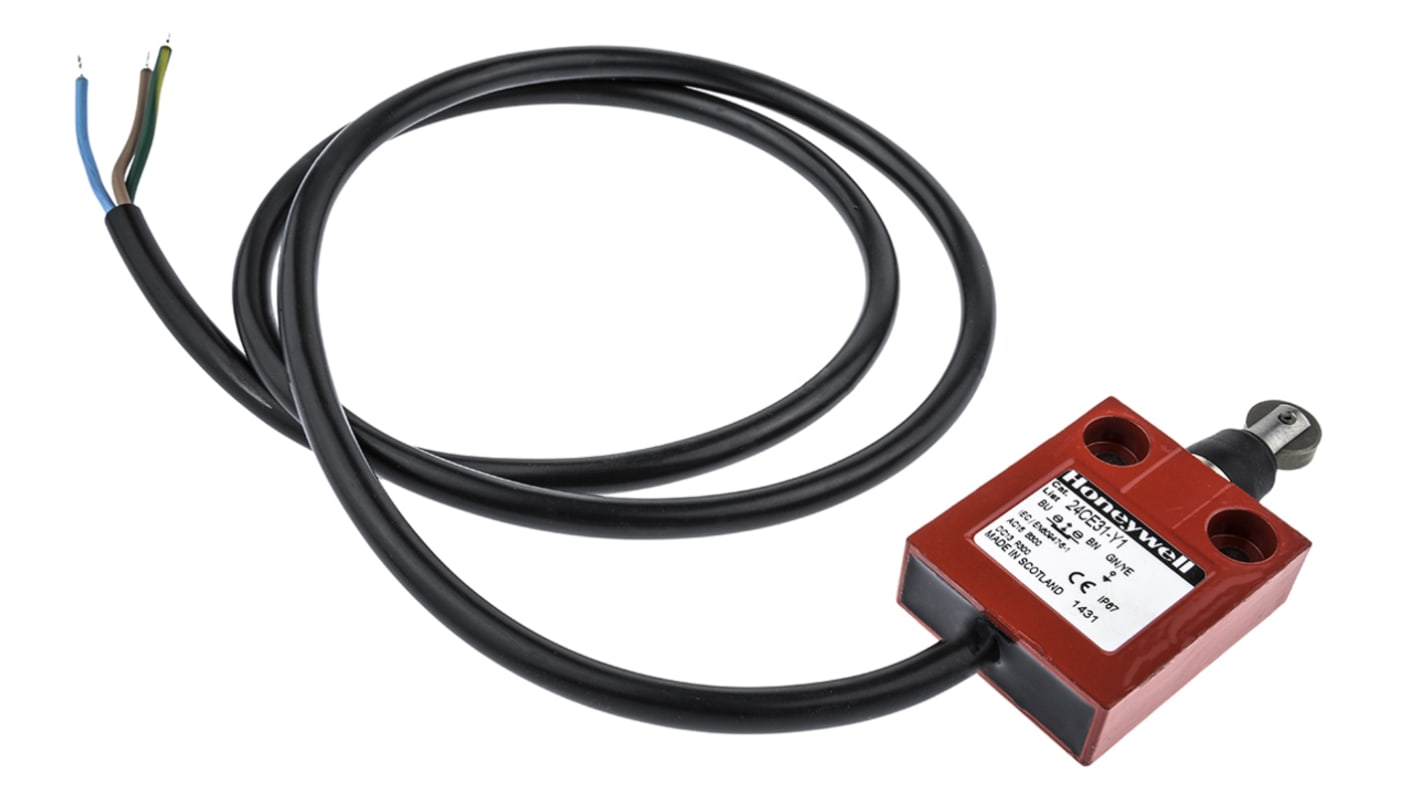

Honeywell 24CE Series Roller Plunger Limit Switch, SPST, IP66, Die Cast Zinc Housing, 240V ac, 3A

RS Stock No.:: 334-993
Mfr. Part No.:: 24CE31-Y1
Manufacturer:: Honeywell

Honeywell 24CE Series Roller Plunger Limit Switch, SPST, IP66, Die Cast Zinc Housing, 240V ac, 3A

Subtotal (1 unit)*

HK$1,669.80

FREE delivery for orders over HK$250.00

In Stock

96 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	HK$1,669.80

*price indicative

RS Stock No.:: 334-993
Mfr. Part No.:: 24CE31-Y1
Manufacturer:: Honeywell

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Actuator Type	Roller Plunger
	Product Type	Limit Switch
	Contact Configuration	SPST
	IP Rating	IP66
	Housing Material	Die Cast Zinc
	Contact Type	Slow Action
	Terminal Type	Cable
	Switching Current	3A
	Series	24CE
	Minimum Operating Temperature	0°C
	Switching DC Voltage	250V dc
	Switching AC Voltage	240V ac
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60947-5-1, EN 60947-5-1, CE Certified
	Length	49mm
	Width	40mm
	Depth	16mm
	Hazardous Area Certification	NO
	Mechanical Life	10000000Cycles
	Operating Force	25.5N
	Mounting Orientation	Panel

	Select all
	Brand Honeywell
	Actuator Type Roller Plunger
	Product Type Limit Switch
	Contact Configuration SPST
	IP Rating IP66
	Housing Material Die Cast Zinc
	Contact Type Slow Action
	Terminal Type Cable
	Switching Current 3A
	Series 24CE
	Minimum Operating Temperature 0°C
	Switching DC Voltage 250V dc
	Switching AC Voltage 240V ac
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60947-5-1, EN 60947-5-1, CE Certified
	Length 49mm
	Width 40mm
	Depth 16mm
	Hazardous Area Certification NO
	Mechanical Life 10000000Cycles
	Operating Force 25.5N
	Mounting Orientation Panel

COO (Country of Origin):: GB

Honeywell 24CE Series Limit Switch, Roller Plunger Actuator, 1 NC Contact Configuration - 24CE31-Y1

This limit switch is a Compact electromechanical device designed to detect and control positional changes in industrial systems. It uses a roller plunger actuator to translate mechanical movement into an electrical change suitable for control panels and machinery environments. The unit is intended for panel mounting and connects via a cable termination for straightforward integration into existing wiring layouts.

Features and Benefits:

• 25.5N operating force provides consistent actuation feel and repeatability
• 1NC slow-action contact offers deliberate switching for control logic
• Rated for 240V AC and 3A enabling direct control of common loads
• IP66 enclosure allows washdown and protection against dust ingress
• Mechanical endurance of 10,000,000 cycles supports long service intervals

Applications

• Suitable for position detection on industrial conveyors
• Ideal for safety interlocks on access panels
• Used with automated assembly jigs for end-of-travel signalling
• Can be used for limit detection in packaging machinery
• Suitable for integration into pneumatic actuator feedback systems

What material is the exterior casing MADE from?

The housing is formed from die-cast zinc to provide structural rigidity and impact resistance.

Which temperature range can the device operate within?

It is specified to function between 0°C and 70°C for normal use conditions.

How is the switch mounted to equipment?

The design is intended for panel mounting to secure it directly to control enclosures or machine frames.

What standards does this device conform to for control switching?

It complies with IEC 60947-5-1 and EN 60947-5-1 requirements for low-voltage control switching.

What type of electrical termination is provided?

The unit uses a cable-style Terminal for direct wiring to control circuits.

Approvals

UL, CSA.
