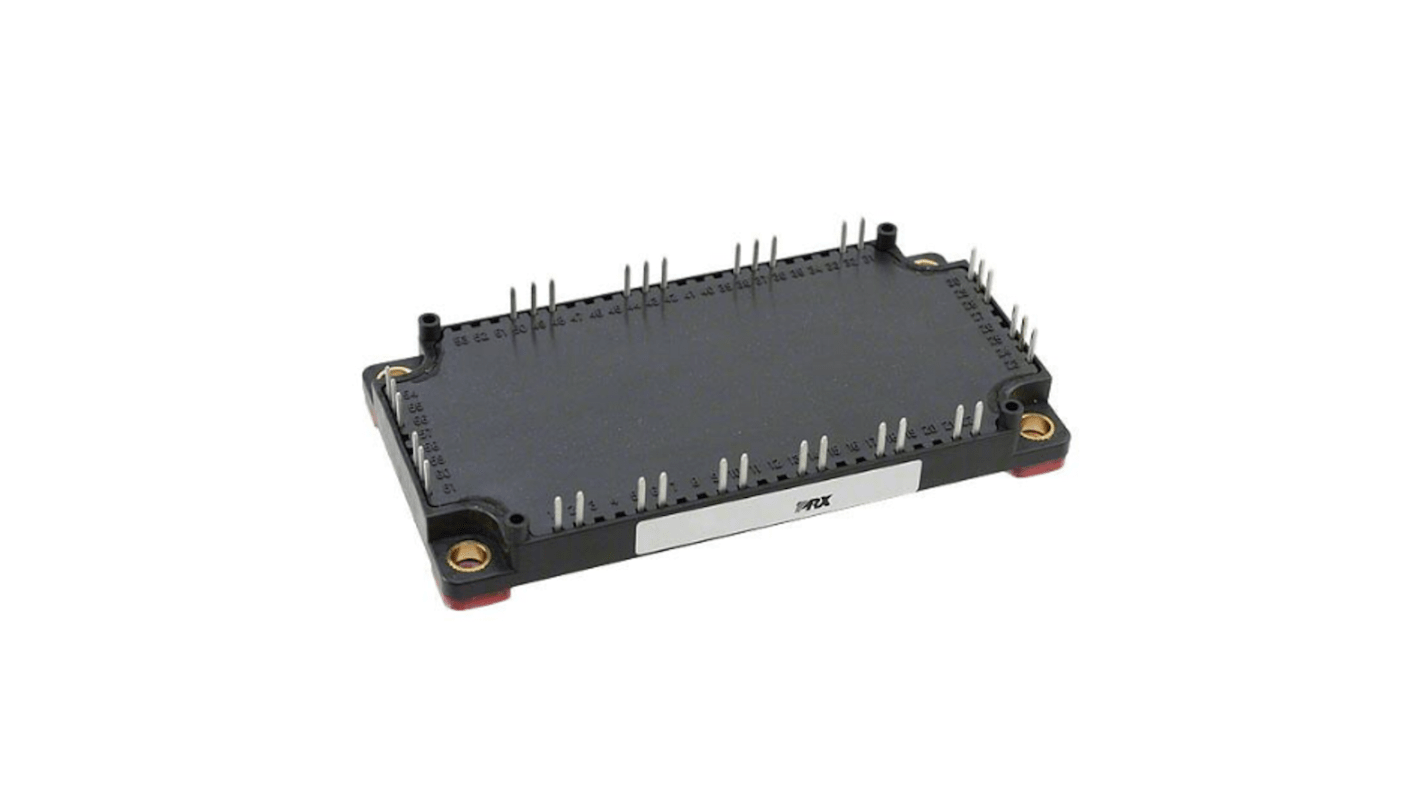

Mitsubishi Electric, Type N-Channel IGBT Module, 150 A 1200 V Module, PCB

The image is for reference only, please refer to product details and specifications

View all IGBTs
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
207-4960
Mfr. Part No.:
CM150TX -24T #300G
Manufacturer:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Product Type

IGBT Module

Maximum Continuous Collector Current Ic

150A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

850W

Package Type

Module

Mount Type

PCB

Channel Type

Type N

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.95V

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Series

CM150TX -24T

Width

62 mm

Length

122mm

Automotive Standard

No

The Mitsubishi Electric 1200V IGBT module has flat base and six driver per module with break IGBT. It has 100A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.

Tin plating pin terminal

Used copper base plate

Maximum junction temperature 175°C
