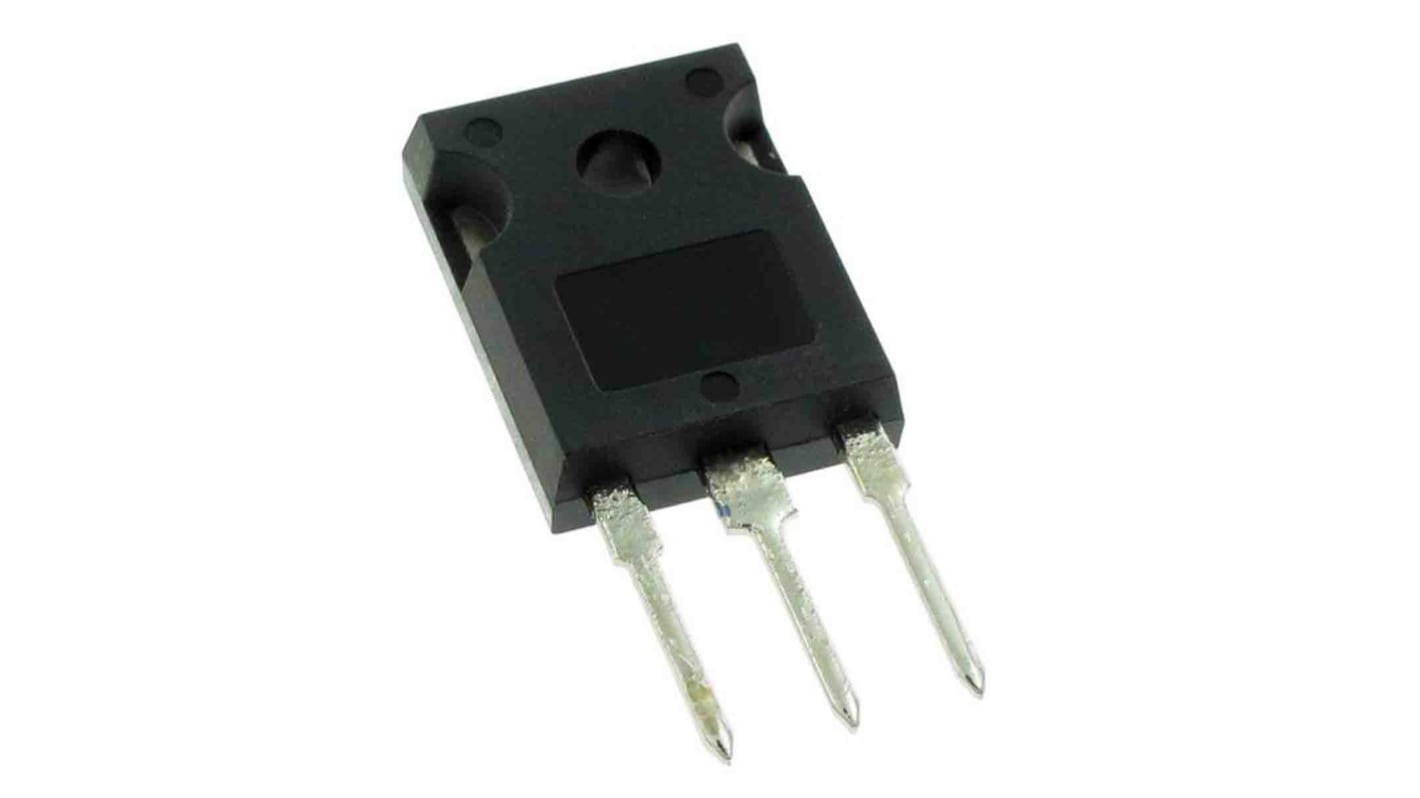

STMicroelectronics STGWA30HP65FB2 IGBT 650 V, 3-Pin TO-247 long leads
- RS Stock No.:
- 201-4418
- Mfr. Part No.:
- STGWA30HP65FB2
- Manufacturer:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 5 units)*
HK$132.20
FREE delivery for orders over HK$250.00
Temporarily out of stock
- 420 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | HK$26.44 | HK$132.20 |
| 10 - 10 | HK$25.78 | HK$128.90 |
| 15 + | HK$25.38 | HK$126.90 |
*price indicative
- RS Stock No.:
- 201-4418
- Mfr. Part No.:
- STGWA30HP65FB2
- Manufacturer:
- STMicroelectronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | ±30V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation | 167 W | |
| Package Type | TO-247 long leads | |
| Channel Type | N | |
| Pin Count | 3 | |
| Transistor Configuration | Series | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±30V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 167 W | ||
Package Type TO-247 long leads | ||
Channel Type N | ||
Pin Count 3 | ||
Transistor Configuration Series | ||
The STMicroelectronics trench gate field-stop, 650 V, 30 A, high-speed HB2 series IGBT in a TO-247 long leads package, has a positive VCE(sat) temperature coefficient.
Minimized tail current
Tight parameter distribution
Low thermal resistance
Tight parameter distribution
Low thermal resistance
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
