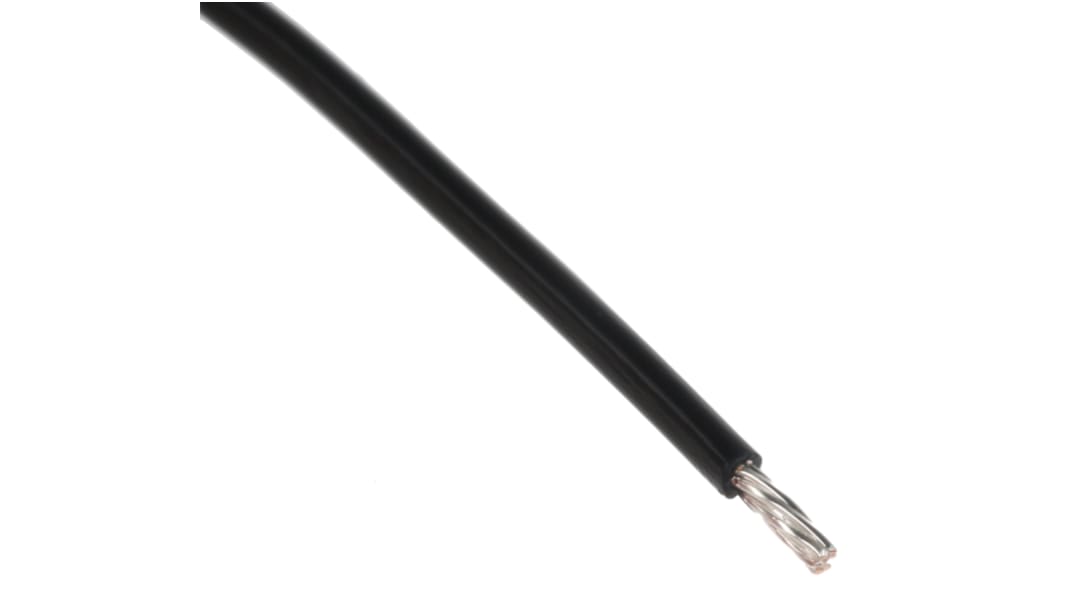

    Alpha Wire Premium Series Black 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30m, PTFE Insulation

    Alpha Wire
    RS Stock No.:
    177-1078
    Mfr. Part No.:
    5855/7 BK005
    Manufacturer:
    Alpha Wire
    View all Hook Up Wire
    50 In stock for delivery within 3 working days
    Add to Basket
    Reel(s)

    Added

    Price 1 Reel of 30 Metre(s)

    HK$1,481.90

    Reel(s)Per ReelPer Metre*
    1 - 24HK$1,481.90HK$49.397
    25 - 49HK$1,444.85HK$48.162
    50 +HK$1,422.62HK$47.421
    *price indicative
    RS Stock No.:
    177-1078
    Mfr. Part No.:
    5855/7 BK005
    Manufacturer:
    Alpha Wire

    Product overview and Technical data sheets


    Legislation and Compliance


    Product Details

    Belden Alpha Wire Teflon Insulated Hook-Up Wire, 0.35mm² Cross-Sectional Area, 30m Length - Premium Series - 5855/7 BK005


    Use this hook-up wire from Belden's Alpha Wire range to connect internal circuits in your electronic devices. The PTFE (polytetrafluoroethylene) cable jacket is resistant to abrasion and resists the wear and tear expected in industrial applications. An insulation wall thickness of 0.3mm allows the wire to withstand chemical contact and solvents, making it ideal for harsh environments. It's easy to strip and terminate as it has a simple unshielded design. The copper conductor is silver-plated, which makes it resistant to corrosion and highly conductive up to 600V.

    Features & Benefits


    • Bend radius 10 times the cable diameter means it's flexible and easy to use
    • Length of 30m for convenient cut-and-fix connections
    • 5.5lbs pull force means it won't tear under pressure
    • Broad operating temperature range between -60°C and +200°C for use in demanding environments

    Applications


    • Construction
    • Domestic appliances
    • Switchboards
    • Food manufacturing

    Is a hook-up wire the same as a lead wire?


    Yes – the terms hook-up wire and lead wire are used interchangeably. Both refer to single-core cables housed in an insulated jacket. You can use them in enclosed electronic equipment.


    Specifications

    AttributeValue
    Cross Sectional Area0.35 mm²
    Sheath ColourBlack
    American Wire Gauge22 AWG
    Core Strands7/0.25 mm
    Length30m
    Insulation MaterialPTFE
    Voltage Rating600 V
    Outer Diameter1.27mm
    Minimum Operating Temperature-60°C
    Maximum Operating Temperature+200°C
    Conductor MaterialSilver Plated Copper
    Wire StyleUL1213
    Standards MetMIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
    SeriesPremium
    Insulation Wall Thickness0.3mm
    Shield TypeUnshielded
    Number of Strands7
    Size of Strands0.25 mm
