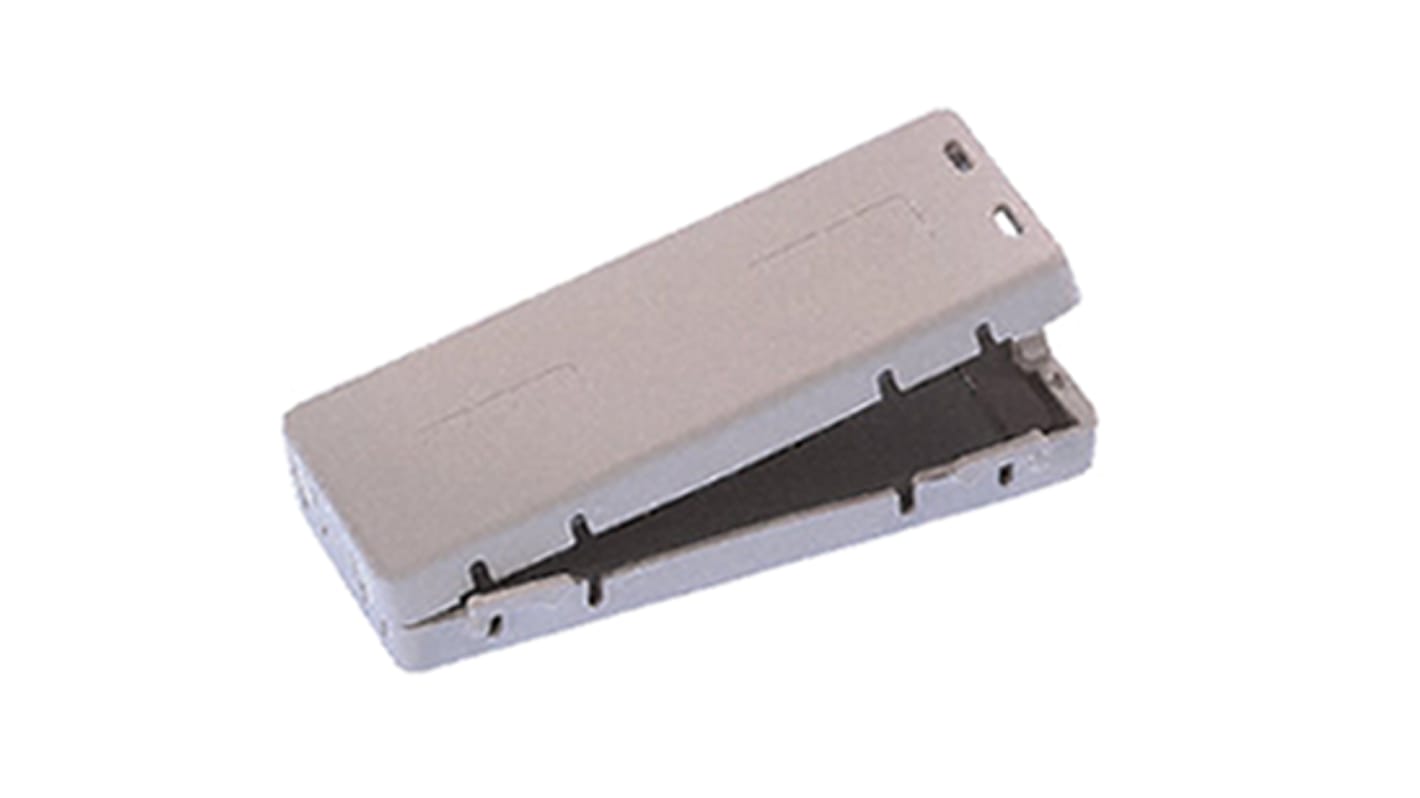

Wurth Elektronik Polyamide 66, 4W620 Openable Flat Cable Ferrite, 50 max. wires, Flat Cable Core 1.27 mm 64.5 mm
- RS Stock No.:
- 367-4913
- Distrelec Article No.:
- 301-87-541
- Mfr. Part No.:
- 7427247
- Manufacturer:
- Wurth Elektronik
The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 unit)*
HK$98.10
FREE delivery for orders over HK$250.00
In Stock
- 53 unit(s) ready to ship from another location
- Plus 76 unit(s) shipping from 28 January 2026
- Plus 12 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | HK$98.10 |
| 2 - 3 | HK$95.90 |
| 4 + | HK$94.00 |
*price indicative
- RS Stock No.:
- 367-4913
- Distrelec Article No.:
- 301-87-541
- Mfr. Part No.:
- 7427247
- Manufacturer:
- Wurth Elektronik
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Maximum Number of Wires | 50 | |
| Product Type | Flat Cable Ferrite | |
| Sub Type | Flat Cable Core | |
| Internal Width | 64.5mm | |
| Application | RFI Suppression | |
| Internal Height | 1.27mm | |
| Material | Polyamide 66, 4W620 | |
| Impedance at 100 MHz | 102Ω | |
| Openable | Yes | |
| External Depth | 33.1mm | |
| External Width | 84.5mm | |
| External Height | 16mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Maximum Number of Wires 50 | ||
Product Type Flat Cable Ferrite | ||
Sub Type Flat Cable Core | ||
Internal Width 64.5mm | ||
Application RFI Suppression | ||
Internal Height 1.27mm | ||
Material Polyamide 66, 4W620 | ||
Impedance at 100 MHz 102Ω | ||
Openable Yes | ||
External Depth 33.1mm | ||
External Width 84.5mm | ||
External Height 16mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Split Sleeve for Ribbon Cable Ferrites
STAR-FLAT snap ferrite sleeves from Wurth Elektronik prevent cable crimping while integral cable fixing ensures that ribbon cables do not slide. STAR-FLAT snap ferrites guarantee electromagnetic compatibility as they can only be opened with the STAR-TEC key. Note, the safety key (74271) is sold separately. Refer to 8150021 to order the key.
Features
The use of key technology prevents the ferrites being opened by any unauthorised persons.
Patented technology
Operating temperature range of -25°C to +105°C
UL94-V0 plastic casing protects the ferrite from breakage
Product Application Information
Suitable applications include ribbon cables, internal and external computer data cables, medical technology and power cables.
