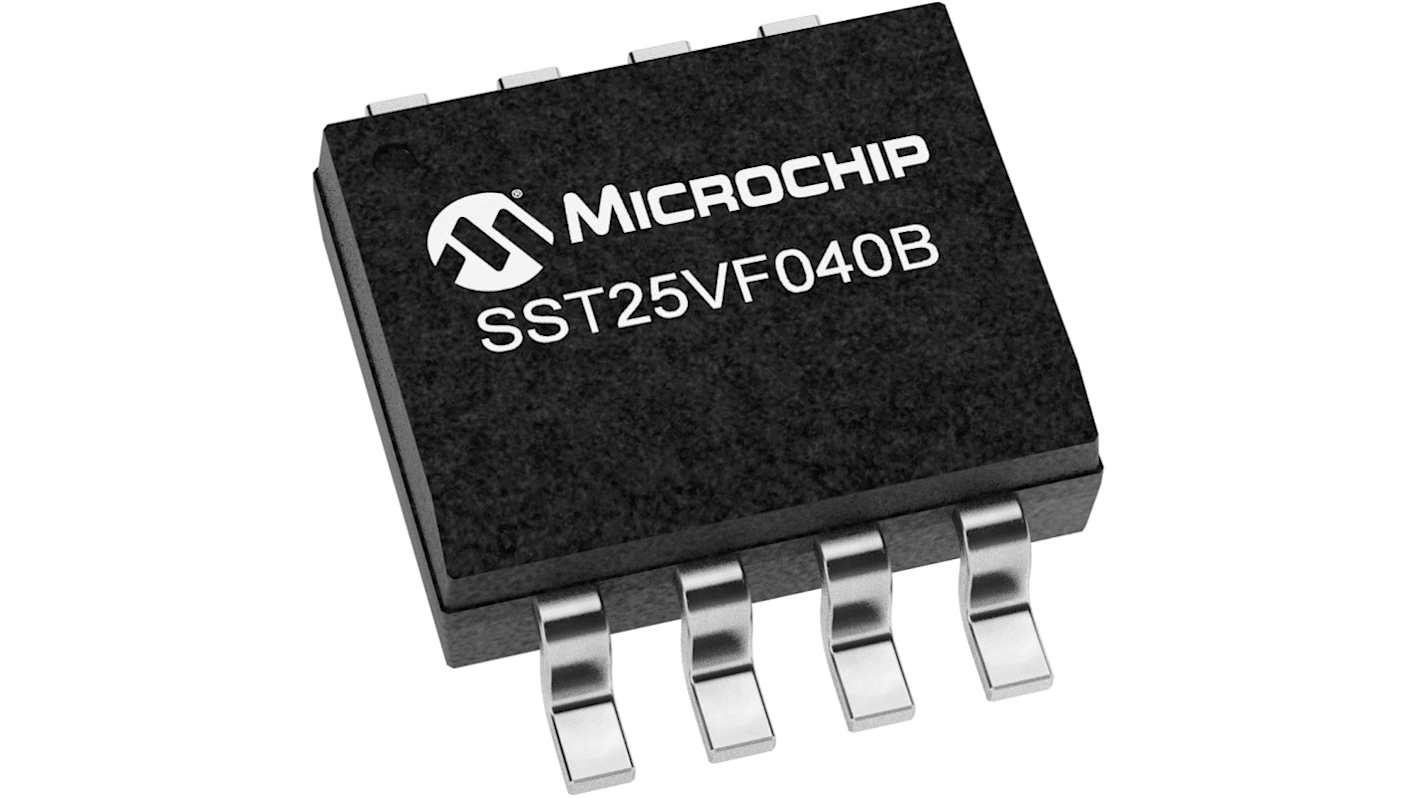

Microchip Split Gate 4 MB SPI Flash Memory 8-Pin SOIC
- RS Stock No.:
- 264-8830
- Mfr. Part No.:
- SST25VF040B-50-4I-SAF-T
- Manufacturer:
- Microchip
The image is for reference only, please refer to product details and specifications
Subtotal (1 reel of 3300 units)*
HK$32,287.20
FREE delivery for orders over HK$250.00
Temporarily out of stock
- Shipping from 14 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 + | HK$9.784 | HK$32,287.20 |
*price indicative
- RS Stock No.:
- 264-8830
- Mfr. Part No.:
- SST25VF040B-50-4I-SAF-T
- Manufacturer:
- Microchip
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 4MB | |
| Product Type | Flash Memory | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 512k x 8 | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 50MHz | |
| Cell Type | Split Gate | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2.3V | |
| Timing Type | Synchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 5 mm | |
| Standards/Approvals | RoHS, JEDEC | |
| Length | 6mm | |
| Supply Current | 15mA | |
| Series | SST25VF | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Memory Size 4MB | ||
Product Type Flash Memory | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 512k x 8 | ||
Mount Type Surface | ||
Maximum Clock Frequency 50MHz | ||
Cell Type Split Gate | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2.3V | ||
Timing Type Synchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 5 mm | ||
Standards/Approvals RoHS, JEDEC | ||
Length 6mm | ||
Supply Current 15mA | ||
Series SST25VF | ||
Automotive Standard No | ||
The Microchip serial flash memory features a four-wire, SPI compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF040B device is enhanced with improved operating frequency for lower power consumption. This SPI serial flash memory is manufactured with SST proprietary, high-performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. This device significantly improve performance and reliability, while lowering power consumption.
SPI Compatible: Mode 0 and Mode 3
Supports 50 MHz SPI clock
Active Read Current: 10 mA (typical)
Program & Erase Current: 30mA (max)
Standby Current: 5 μA (typical)
Chip-Erase Time: 35 ms (typical)
Sector-/Block-Erase Time: 18 ms (typical)
Byte-Program Time: 7 μs (typical)
RoHS compliant
