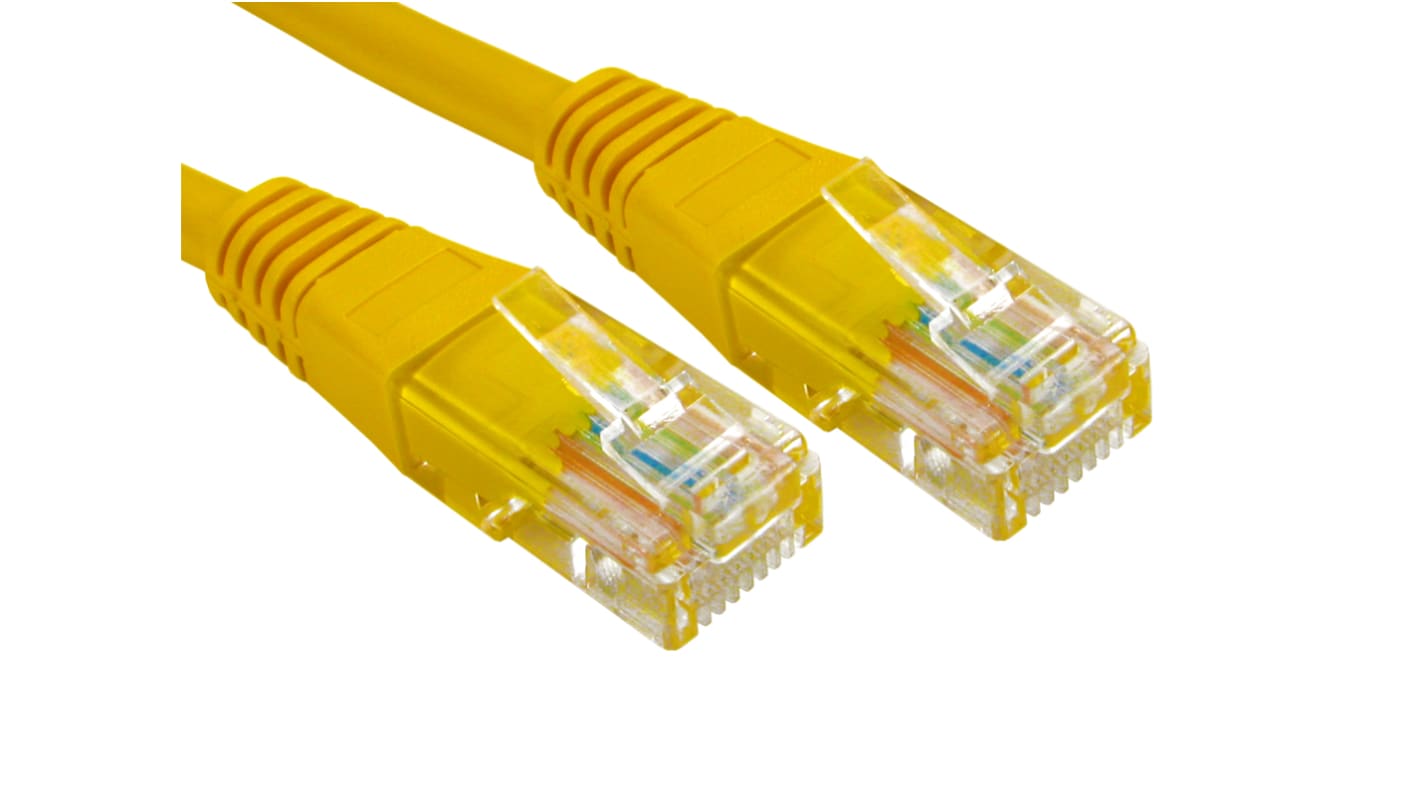

RS PRO, 1m Cat6, Yellow RJ45 to Male RJ45 Male, U/UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 240-6306
Manufacturer:: RS PRO

RS PRO, 1m Cat6, Yellow RJ45 to Male RJ45 Male, U/UTP Unshielded, Terminated PVC Sheath

Bulk discount available

Subtotal (1 unit)**

HK$26.80

71 In stock for delivery within 3 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over HK$250.00

Real time qty checker

Units	Per unit
1 - 4	HK$26.80
5 - 24	HK$24.10
25 +	HK$19.90

**price indicative

RS Stock No.:: 240-6306
Manufacturer:: RS PRO

RS PRO Cat6 UTP Ethernet Cable – 1m

Introducing a range of Ethernet cables from RS PRO manufactured using Category 6 cables, commonly referred to as Cat6 Cable. They are electrical cables often used in office environments to link computers to a network hub, router or Ethernet switch. These RS PRO Cat6 patch cables are designed for both mechanical and electrical reliability, using quality materials. They deliver a patch cord solution offering high performance, with a design feature ’one style fits all’ cord application.

Key Features

They are unshielded twisted pairs (U/UTP), a popular type of cable consisting of two unshielded wires twisted around each other. Due to the cables being twisted together both cross-talk and system noise levels are reduced. These RS PRO Cat 6 patch leads are available in different lengths and colours, which makes the identification of the cable easy.

Construction

Our U/UTP ethernet cable is made up of 24 AWG copper internal conductors, Insulation (PE), and a PVC jacket which offers both kink protection and flexibility. The RJ45 connectors have gold plated pins that prevent corrosion all of which make the CAT6 cable compatible for speeds up to 10/100/1000 which is commonly referred to as Gigabit networking speeds.

Features and Benefits

Dual RJ-45 plug connectors with click lock

High speed of data transmission

Cable length: 1m

PVC protective jacket

Available Cable Outer Sheath Colours: Grey, Orange, Blue, Green, Black, Purple, White and Yellow

Specifications

RJ45 Connector: 8P8C, 2 fork gold plated contacts

24 AWG

U/UTP

Gender: Male to Male

Cable Sheath: PVC

Applications

Home computing

Office computer networks

Telecommunication

IT Servers

Why would you choose RS PRO for Cat6 cables?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

FAQs

Why would you need an RJ45 cable?

RJ45 cables are high-performance essential accessories used when linking computers to a network hub, router, or telecommunication. They are also known as Ethernet Cables.
How can I identify a Cat6 cable?

A Cat6 cable can be identified through markings printed on the cable sheath displayed as ’Cat6’ or ’Category 6’ markings.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	1m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	U/UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Yellow
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Core Strands	7/0.183
	American Wire Gauge	24AWG
	Outer Diameter	5.5mm
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.201-0.253mm²
	Current Rating	≤960mA
	Standards Met	UL ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.
	Cable Shape	Round
	Number of Strands	8
	Voltage Rating	≤80

	Select all
	Brand RS PRO
	Length 1m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type U/UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Yellow
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Core Strands 7/0.183
	American Wire Gauge 24AWG
	Outer Diameter 5.5mm
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.201-0.253mm²
	Current Rating ≤960mA
	Standards Met UL ROHS REACH UKCA CE ISO/IEC 11801 ANSII/TIA-568-C.
	Cable Shape Round
	Number of Strands 8
	Voltage Rating ≤80
