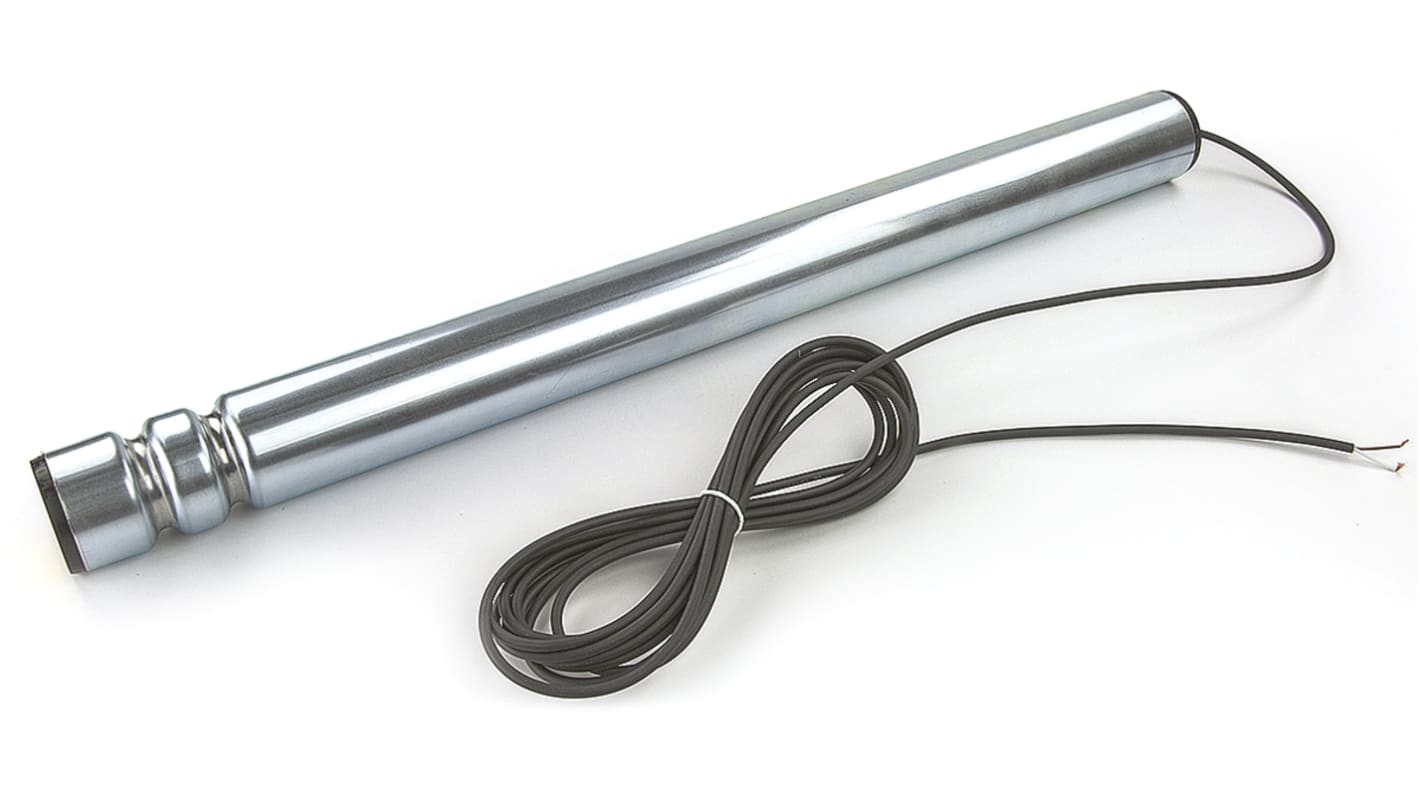

Interroll M8 Motorised Drive Roller, 50mm x 600mm

View all Drive Rollers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Interroll M8 Female, M12 Male Roller Drive, 50mm x 604mm
RS Stock No.
215-4796

Each

HK$3,129.56

RS Stock No.:
437-2810
Mfr. Part No.:
8AFKJAE6FT/H50T
Manufacturer:
Interroll
Find similar products by selecting one or more attributes.
Select all

Brand

Interroll

Roller Diameter

50mm

Roller Length

600mm

Component Type

Motorised Drive Roller

Load Capacity

100kg

Ratio

21

Spindle Thread Size

M8

Maximum Conveying Speed

24m/min

Maximim Motor Voltage

30V

Minimum Motor Voltage

18V

RoHS Status: Exempt

COO (Country of Origin):
DE

Interroll Motorised Drive Roller


The Interroll BT100 series motorised driver roller has a length of 450mm and a diameter of 50mm. This electrically driven roller has a gear ratio of 21:1 and spindle thread size is M8. It replaces external components such as motors and gears that require frequent maintenance. This device can be used in dusty and/or moist environments. Additionally, the roller is powered by a brushed, mechanically commutated 24VDC motor.
Note:
Should not be used with Thyristor controlled power supply units.

Features and Benefits


Grooved to provide the drive to 9 slave rollers
Bush type motor
Quiet running with a noise level of approximate 47dB(A)
Service life of approximate 6000 operating hours (effective running time)
15 starts/stops per minute

Certifications


IP54 rated
