Renesas Electronics 841S104EGILF Crystal Oscillator 5 16-Pin 3.3V TSSOP
- RS Stock No.:
- 263-7975
- Mfr. Part No.:
- 841S104EGILF
- Manufacturer:
- Renesas Electronics

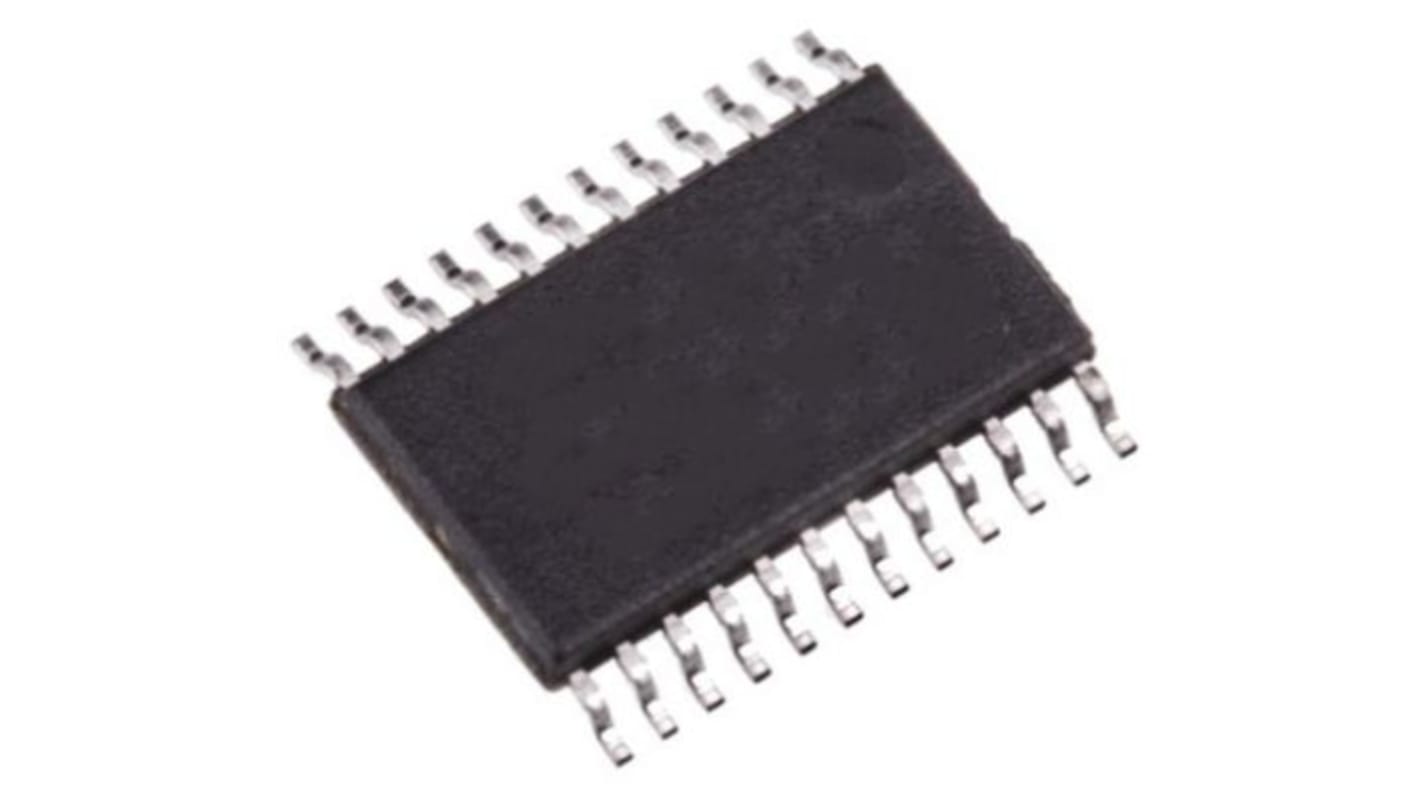

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 tube of 62 units)*
HK$7,610.872
FREE delivery for orders over HK$250.00
Temporarily out of stock
- Shipping from 21 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 62 - 62 | HK$122.756 | HK$7,610.87 |
| 124 - 186 | HK$120.302 | HK$7,458.72 |
| 248 - 496 | HK$117.895 | HK$7,309.49 |
| 558 + | HK$115.539 | HK$7,163.42 |
*price indicative
- RS Stock No.:
- 263-7975
- Mfr. Part No.:
- 841S104EGILF
- Manufacturer:
- Renesas Electronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Crystal Oscillator | |
| Maximum Output Frequency | 100MHz | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Maximum Input Frequency | 25MHz | |
| Minimum Supply Voltage | 3.14V | |
| Maximum Supply Voltage | 3.3V | |
| Input Logic Level | LVCMOS/LVTTL | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 1.2mm | |
| Length | 7.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Crystal Oscillator | ||
Maximum Output Frequency 100MHz | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Maximum Input Frequency 25MHz | ||
Minimum Supply Voltage 3.14V | ||
Maximum Supply Voltage 3.3V | ||
Input Logic Level LVCMOS/LVTTL | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 1.2mm | ||
Length 7.9mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Renesas Electronics PLL-based clock synthesizer specifically designed for PCI express clock applications. This device generates a 100MHz differential HCSL clock from an input reference of 25MHz. The input reference may be derived from an external source or by the addition of a 25MHz crystal to the on-chip crystal oscillator. The device offers spread spectrum clock output for reduced EMI applications.
I2C support with read back capabilities up to 400kHz
-40°C to 85°C ambient operating temperature
Available lead-free (RoHS 6) package
PCI Express Gen 1, 2, 3 jitter compliant
