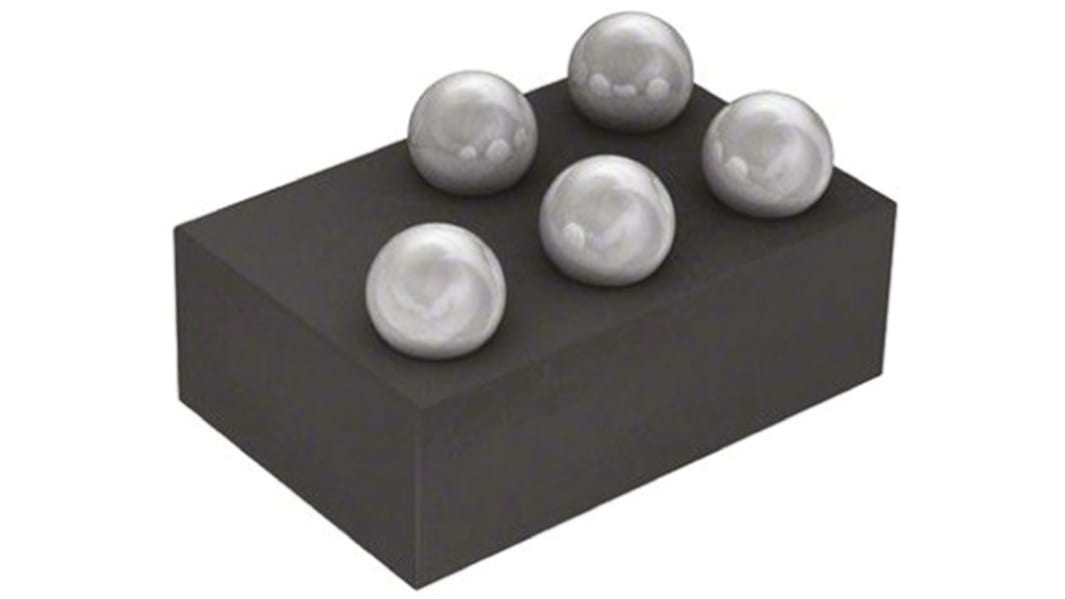

    50Ω (Ohm) Balun Transformer, STMicroelectronics


    STMicroelectronics offer a Balun Transformer BAL-NRF01D3. The ultra-miniature balun is customised for the Nordic Semiconductor circuits such as nRF51422, nRF51822, nRF24AP2-1CH, nRF24AP2-8CH and nRF24LE1 (QFN-32 pins). The balun integrates a matching network and harmonics filter. IPD technology to get the most out of RF performance.

    · 50 Ω (Ohm) Input
    · 2.45GHz ISM matched Nordic Semiconductor chips with ultralow power transceivers
    · Low profile: 595μm after reflow

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    AttributeValue
    Unbalance Impedance50Ω
    Balance Impedance50Ω
    Maximum Insertion Loss2.25dB
    Mounting TypeSurface Mount
    Pin Count5
    Maximum Frequency2.54GHz
    Minimum Frequency2400MHz
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-40°C
