100 Ω Wurth Elektronik Surface Chip Balun
- RS Stock No.:
- 427-211
- Mfr. Part No.:
- 7484212300
- Manufacturer:
- Wurth Elektronik

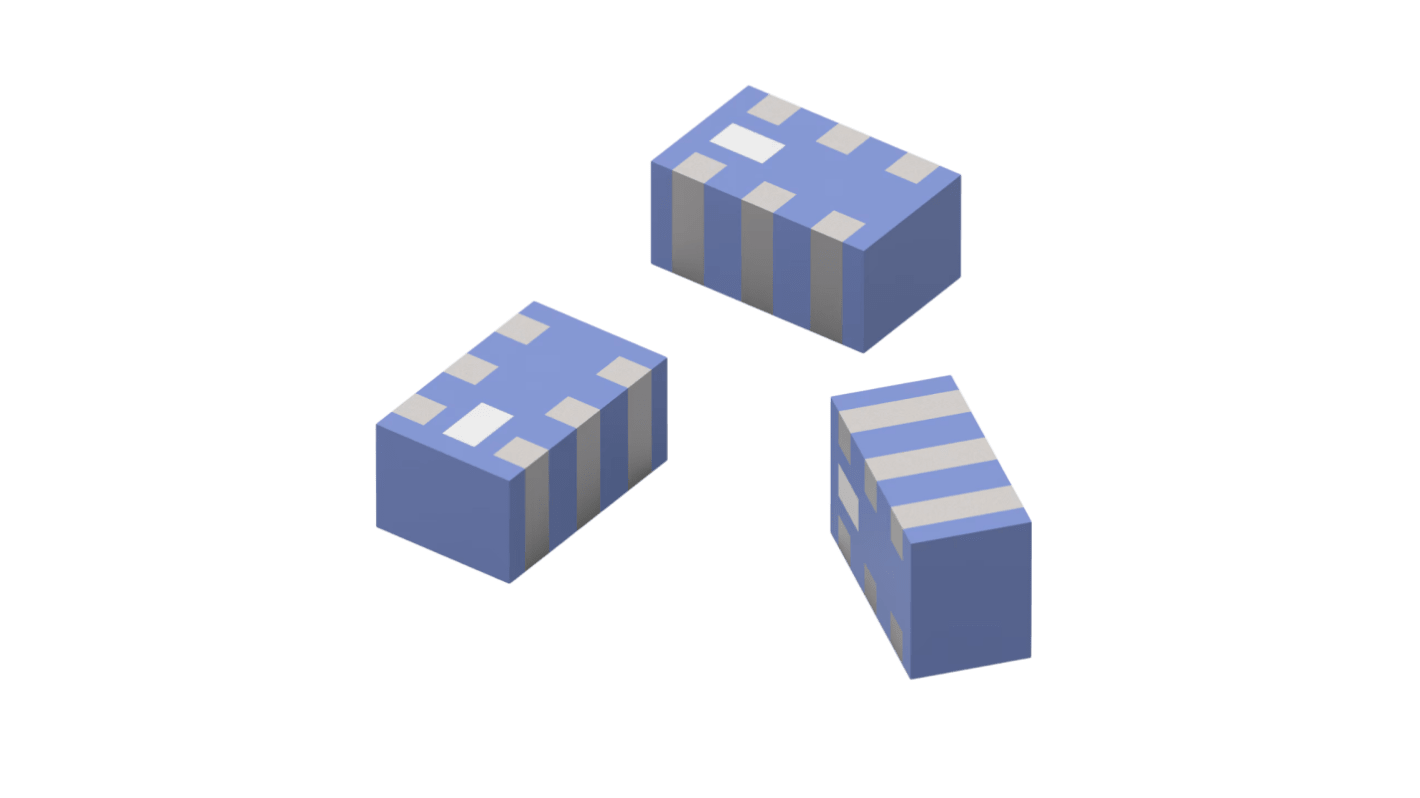

The image is for reference only, please refer to product details and specifications
Subtotal (1 reel of 2000 units)*
HK$11,306.00
FREE delivery for orders over HK$250.00
In Stock
- 2,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | HK$5.653 | HK$11,306.00 |
*price indicative
- RS Stock No.:
- 427-211
- Mfr. Part No.:
- 7484212300
- Manufacturer:
- Wurth Elektronik
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Unbalance Impedance | 50Ω | |
| Product Type | Chip Balun | |
| Balance Impedance | 100Ω | |
| Maximum Insertion Loss | 1dB | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Frequency | 3100MHz | |
| Minimum Operating Temperature | -40°C | |
| Minimum Frequency | 1500MHz | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS | |
| Width | 0.9mm | |
| Height | 1.25mm | |
| Length | 2mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Unbalance Impedance 50Ω | ||
Product Type Chip Balun | ||
Balance Impedance 100Ω | ||
Maximum Insertion Loss 1dB | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Frequency 3100MHz | ||
Minimum Operating Temperature -40°C | ||
Minimum Frequency 1500MHz | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS | ||
Width 0.9mm | ||
Height 1.25mm | ||
Length 2mm | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik Multilayer Chip Balun is a high-frequency RF component designed for wireless communication systems. It offers low insertion loss, stable impedance matching, and Compact form factor, making it Ideal for applications such as Home RF, DECT, WLAN, Bluetooth, and ZigBee. Its broad frequency range and optimized signal balance ensure efficient RF performance across various communication protocols.
RoHS and REACH Compliant
Halogen Free
Moisture Sensitivity Level 1
