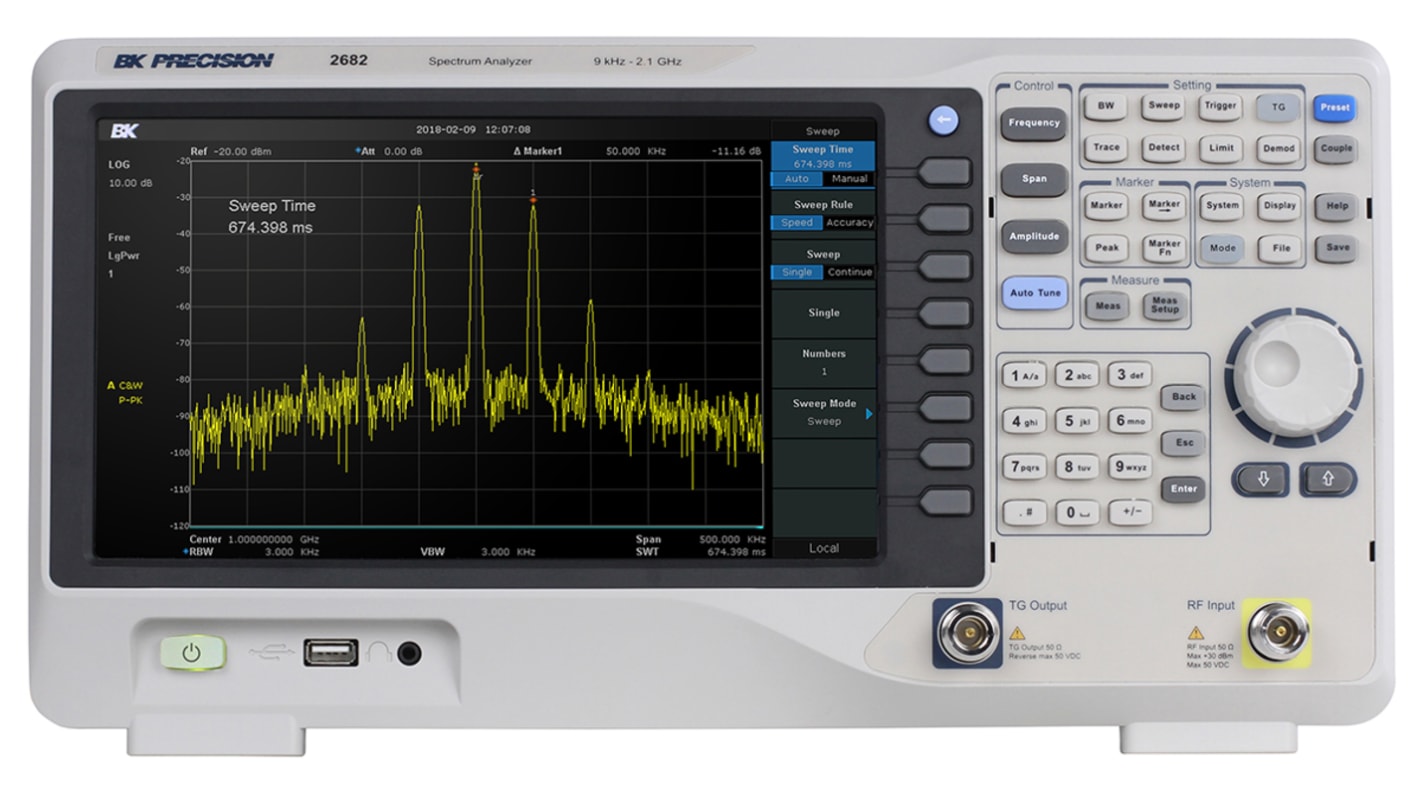

BK Precision BK2682 Spectrum Analyser, 9 KHz → 2.1 GHz
- RS Stock No.:
- 192-4587
- Mfr. Part No.:
- BK2682
- Manufacturer:
- BK Precision
On back order for despatch 26/07/2024, delivery within 3 working days
Added
Price Each
HK$34,337.42
| Units | Per unit |
| 1 + | HK$34,337.42 |
- RS Stock No.:
- 192-4587
- Mfr. Part No.:
- BK2682
- Manufacturer:
- BK Precision
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Frequency range: 9 kHz to 2.1 GHz
High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
Low phase noise of -98 dBc/Hz @ 10 kHz offset
Low level uncertainty of ±0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Preamplifier and tracking generator standard
10.1” wide-screen 1024 x 600 colour display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures
High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
Low phase noise of -98 dBc/Hz @ 10 kHz offset
Low level uncertainty of ±0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Preamplifier and tracking generator standard
10.1” wide-screen 1024 x 600 colour display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures
Specifications
Attribute | Value |
|---|---|
| Bandwidth | 9 KHz → 2.1 GHz |
| Sweep Modes | Continuous, Single |
| Series | 2680 |
| Setting Modes | Span |
| Maximum Frequency | 2.1GHz |
| Minimum Frequency | 9 kHz |
| Frequency Stability | <1ppm |
| Screen Size | 1024 x 600pixel |
| RF Input | BNC |
| Maximum Operating Temperature | +50°C |
| Dimensions | 393 x 116.5 x 207mm |
| Model Number p | BK2682 |
| Length | 393mm |
| Width | 116.5mm |
| Height | 207mm |
| Minimum Operating Temperature | 0°C |
| Weight | 4.6kg |
