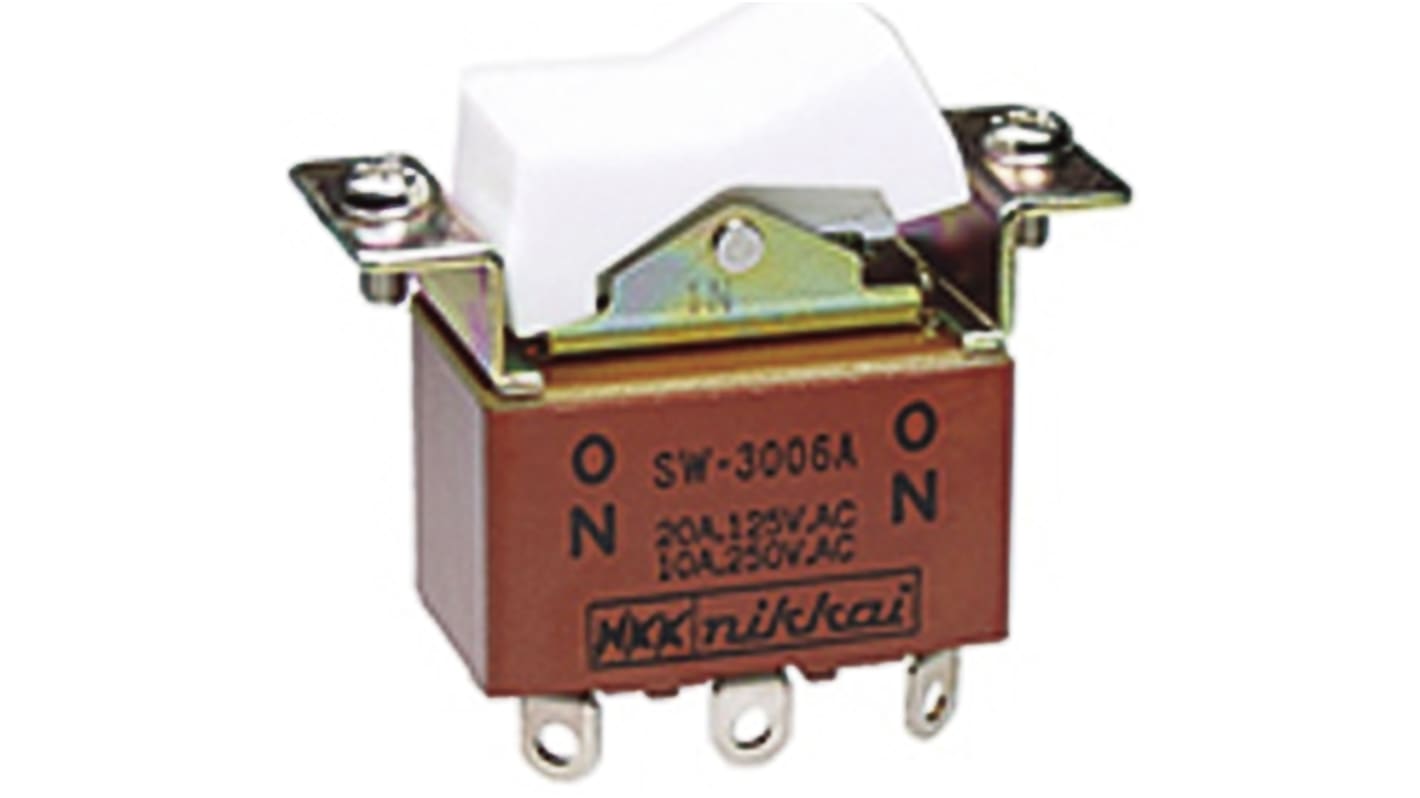

NKK Switches DPDT, On-(On) Rocker Switch Panel Mount
- RS Stock No.:
- 428-9415
- Mfr. Part No.:
- SW-3006A
- Manufacturer:
- NKK Switches
View all Rocker Switches
15 In Global stock for delivery within 3 working day(s)
8 In Global stock for delivery within 3 working day(s)
Price Each
HK$83.35
| units | Per unit |
| 1 - 49 | HK$83.35 |
| 50 - 99 | HK$80.85 |
| 100 - 249 | HK$78.35 |
| 250 - 499 | HK$76.68 |
| 500 + | HK$75.01 |
- RS Stock No.:
- 428-9415
- Mfr. Part No.:
- SW-3006A
- Manufacturer:
- NKK Switches
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Nihon Kaiheiki Ind. Co. Range
Specifications
| Attribute | Value |
| Contact Configuration | DPDT |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 12.5mm |
| Panel Cut Out Height | 23mm |
| Contact Current Rating | 20 A |
| Illuminated | No |
| Actuator Colour | White |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 23 x 12.5mm |
| AC Voltage Rating | 125V |
| Operating Temperature Range | -10 → +70°C |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -10°C |
| Contact Material | Silver Plated Silver Copper Alloy |
| Mechanical Life | 30000Operations |
| Maximum Operating Temperature | +70°C |
