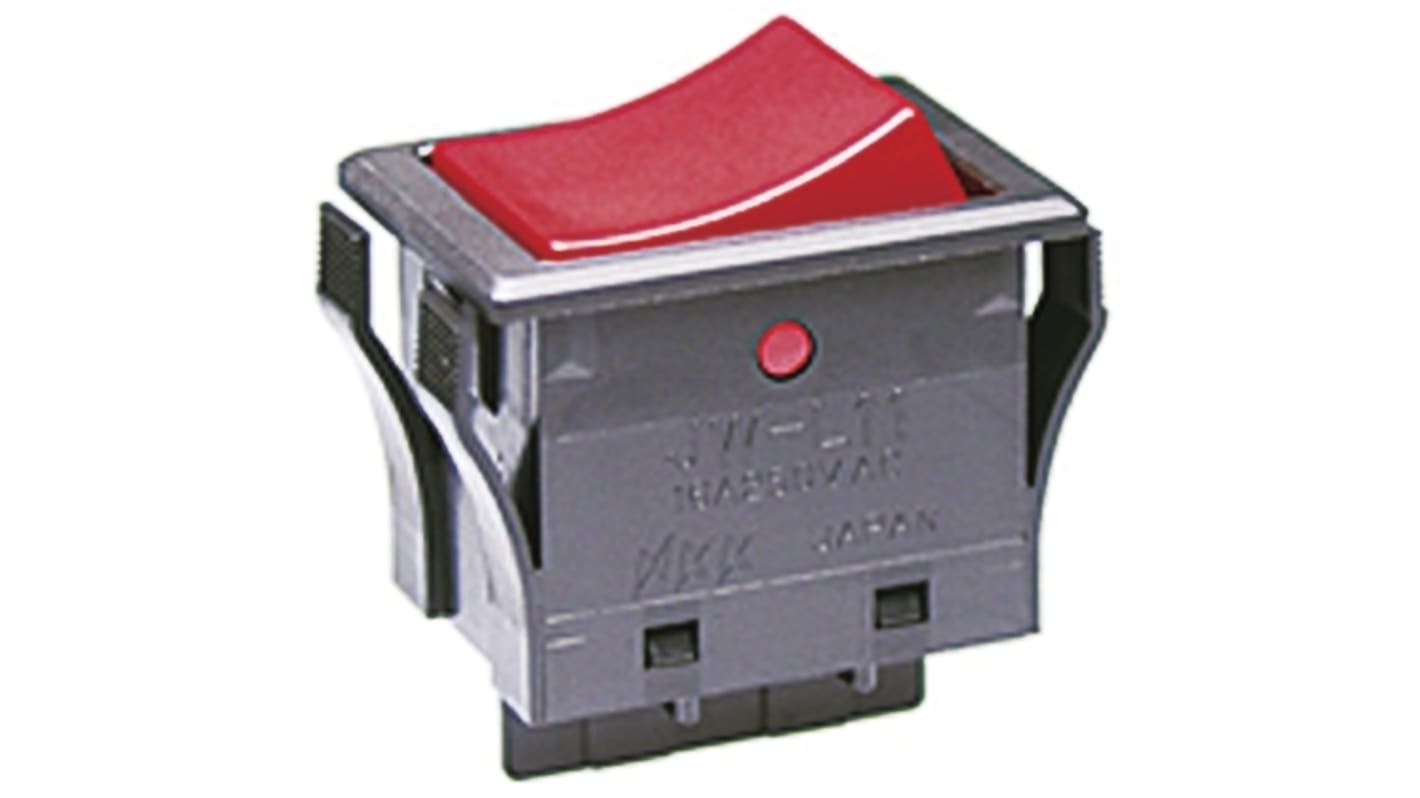

NKK Switches SPST, On-None-Off Rocker Switch Panel Mount
- RS Stock No.:
- 428-9342
- Mfr. Part No.:
- JW-L11RRK
- Manufacturer:
- NKK Switches
View all Rocker Switches
On back order for despatch 22/12/2023, delivery within 3 working days
Price Each
HK$43.66
| units | Per unit |
| 1 + | HK$43.66 |
- RS Stock No.:
- 428-9342
- Mfr. Part No.:
- JW-L11RRK
- Manufacturer:
- NKK Switches
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Nihon Kaiheiki Ind. Co. Range
Specifications
| Attribute | Value |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 20.5mm |
| Panel Cut Out Height | 29.5mm |
| Contact Current Rating | 16 A @ 125/250 V ac |
| Illuminated | No |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect, Solder |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 29.5 x 20.5mm |
| AC Voltage Rating | 125 V, 250V |
| Minimum Operating Temperature | -25°C |
| Case Material | Melamine |
| Mechanical Life | 25000Operations |
| Operating Temperature Range | -25 → +70°C |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Plated Silver Alloy |
