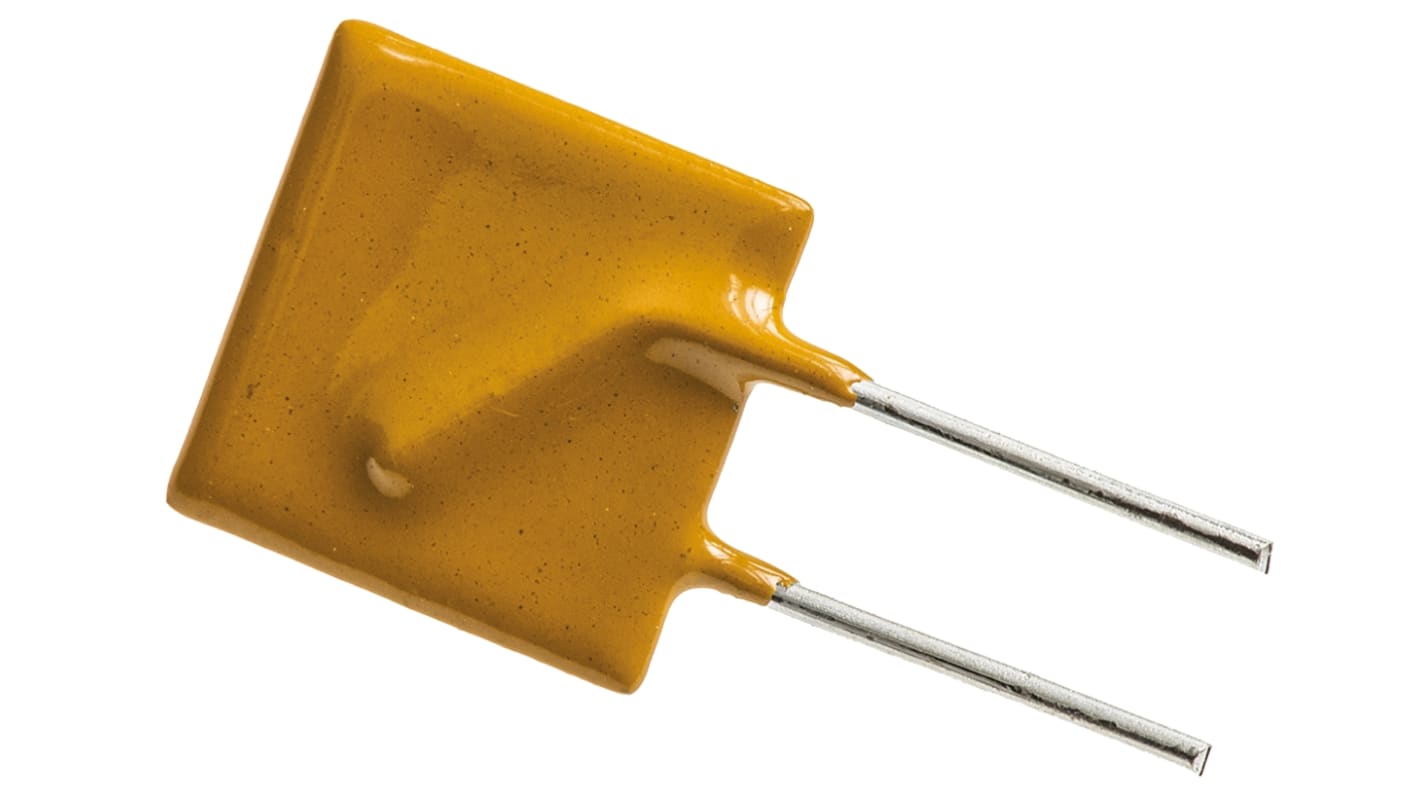

MF-R Series

Radial leaded devices
Rated at 40A except MF-R1100 which is rated at 100A
Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

PCB Wire Ended

All are UL, CSA, TUV approved
Protection of electrical and electronic circuits against excessive currents
Rapid switch from low resistance state to very high resistance with electrical overload or short circuit
Quick and automatic reset and return to low resistance state when fault condition corrected and power removed

Features:

Automatically resets itself thousands of times
Maintenance free
Small size and no fuseholder required

Main applications:

Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications

Units	Per unit	Per Pack**
10 - 40	HK$2.93	HK$29.30
50 +	HK$2.87	HK$28.70

Select all	Attribute	Value
	Brand	Bourns
	Trip Current	6A
	Voltage Rating	30V
	Time to Trip	10.8s
	Hold Current	3A
	Maximum Current	40 A
	Length	12mm
	Height	18.3mm
	Width	3mm
	Minimum Resistance	0.02Ω
	Maximum Resistance	80mΩ
	Power Dissipation	2W
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Lead Orientation	Radial

	Select all
	Brand Bourns
	Trip Current 6A
	Voltage Rating 30V
	Time to Trip 10.8s
	Hold Current 3A
	Maximum Current 40 A
	Length 12mm
	Height 18.3mm
	Width 3mm
	Minimum Resistance 0.02Ω
	Maximum Resistance 80mΩ
	Power Dissipation 2W
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Lead Orientation Radial

Bourns 3A Resettable Fuse, 30V
