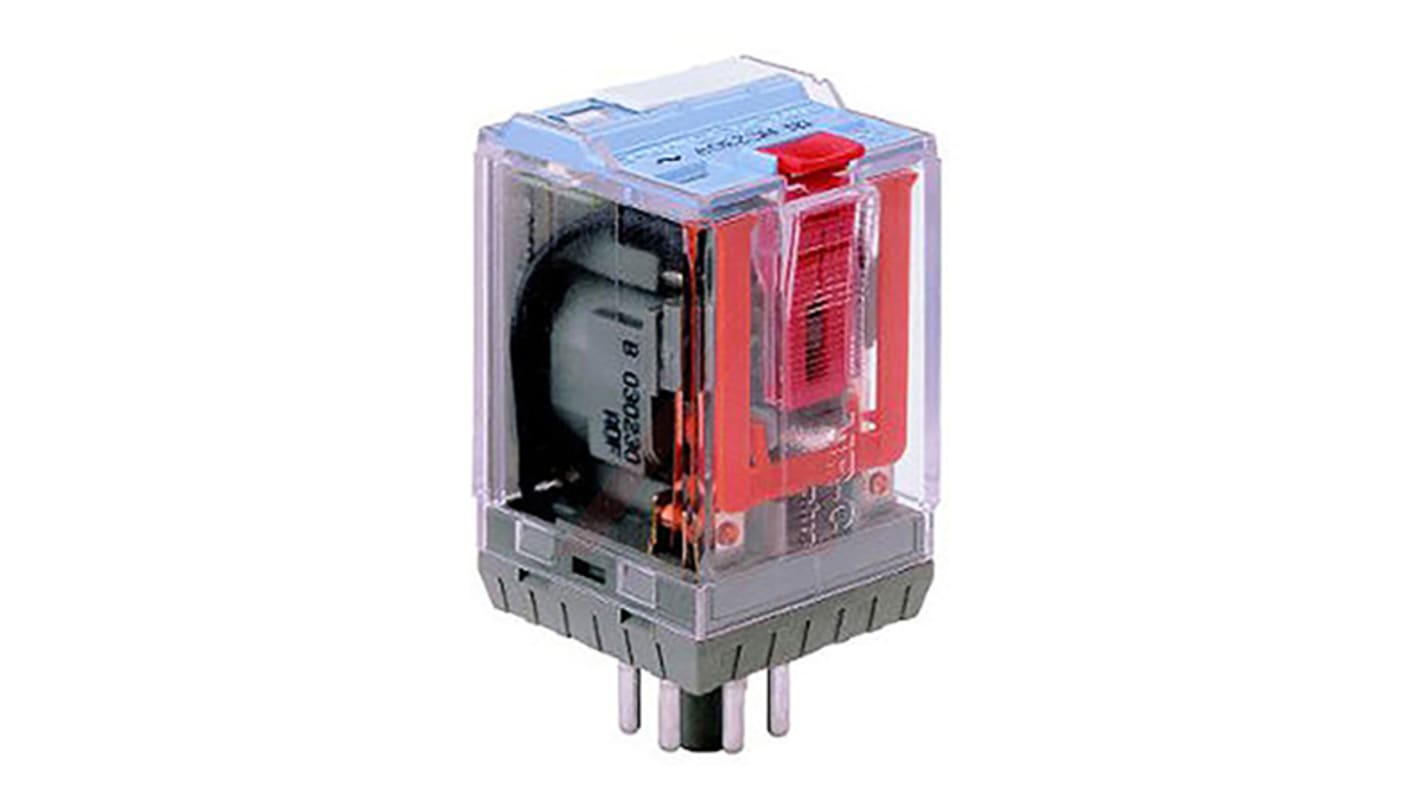

Turck Plug In Power Relay, 120V ac Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 842-3619
- Mfr. Part No.:
- C3-A30/120VAC
- Manufacturer:
- Turck
View all Power Relays
- RS Stock No.:
- 842-3619
- Mfr. Part No.:
- C3-A30/120VAC
- Manufacturer:
- Turck
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
10A 8 & 11 Pin Plug-In Relays
Dual function, colour coded test button push to test or lift to latch
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm
Specifications
| Attribute | Value |
| Coil Voltage | 120V ac |
| Contact Configuration | 3PDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 3 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V dc |
| Length | 35mm |
| Coil Resistance | 1700Ω |
| Coil Power | 2.2W |
| Minimum Operating Temperature | -40°C |
| Series | C3-A30 |
| Contact Material | Silver Alloy |
| Isolation Coil To Contact | 2.5kV |
| Life | ≥100000 (Electrical) Operations, 10000000 (Mechanical) Operations |
| Maximum Operating Temperature | +70°C |
| Depth | 35mm |
| Height | 58.5mm |
| Application | General Purpose |
