Snap Action Limit Switch Metal, NO/NC, 240V

Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): ID
Product Details

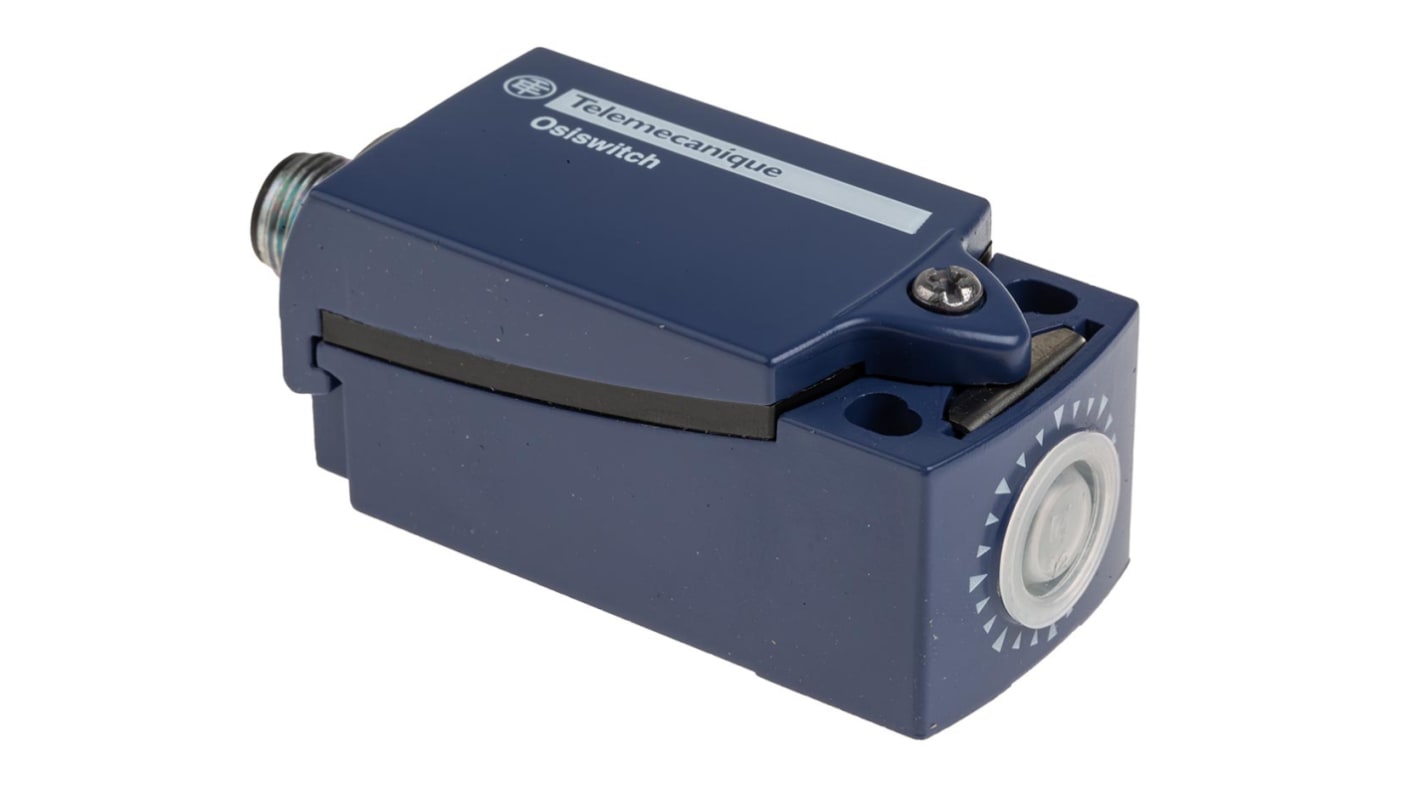

OsiSwitch Limit Switch Bodies

The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.

Features & Benefits

Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection

Product Application Information

All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.

Specifications
Attribute Value
Pole and Throw Configuration DP
Normal State Configuration NO/NC
Maximum Current 1.5 A
Housing Material Metal
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type M12 Connector
Length 65mm
Width 31mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -25°C
Depth 30mm
Dimensions 65 x 31 x 30 mm
31 In stock for delivery within 3 working days
Price Each
HK$ 316.05
(exc. GST)
units
Per unit
1 +
HK$316.05
