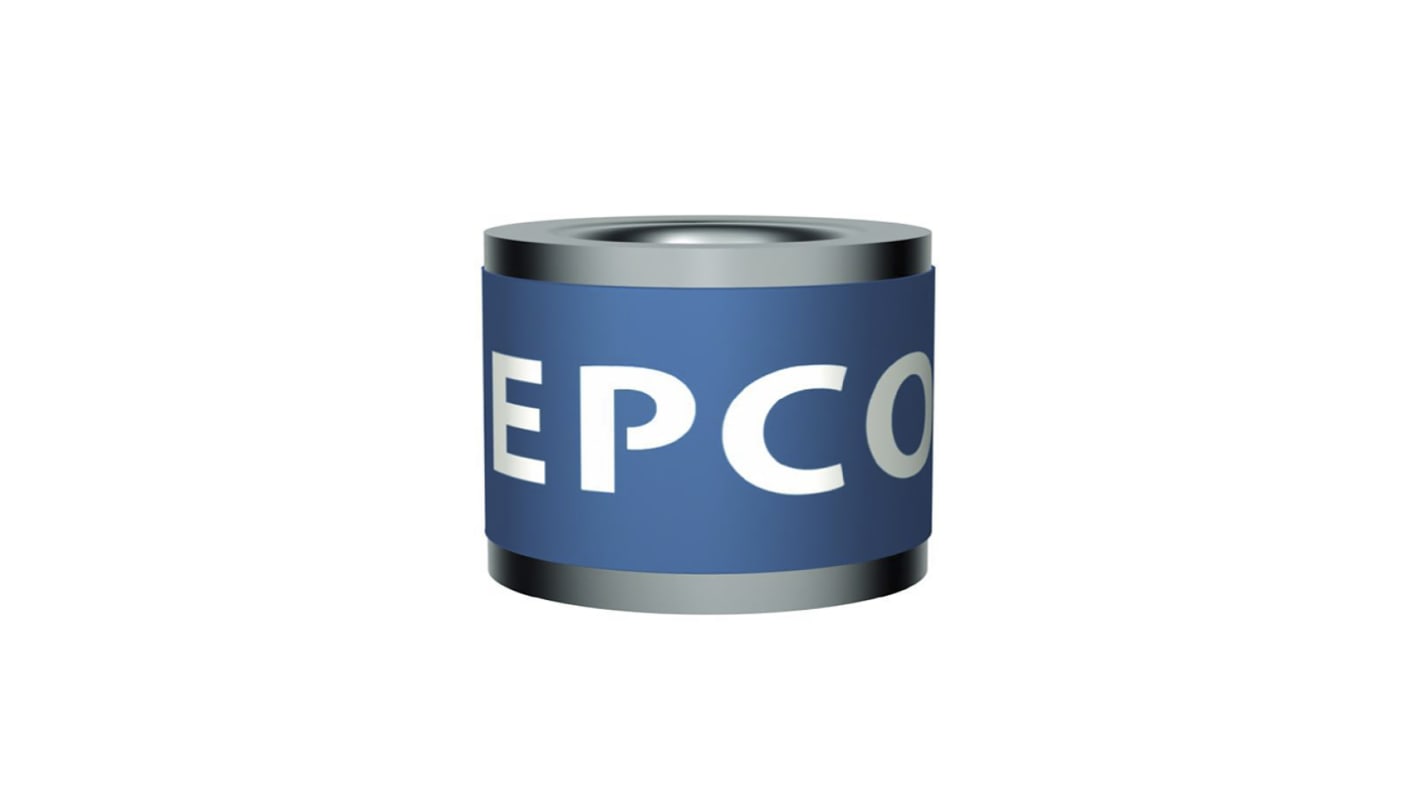

TDK A80-A600X Series 600V 2 Electrode Arrester Gas Discharge Tube (GDT)

  • RS Stock No. 183-9308
  • Mfr. Part No. B88069X2900C103
  • Manufacturer TDK
Product overview and Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Standard size
Fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Applications
Branch exchange (MDF)
Line protection
Subscriber protection

Specifications
Attribute Value
Series A80-A600X
Suppressor Type 2 Electrode Arrester
DC Spark Over Voltage 600V
Impulse Spark Over Voltage 1400V
Maximum Voltage Rating 60 V
Mounting Type Socket Mount
Dimensions 8 Dia. x 6.1mm
Depth 8mm
Length 6.1mm
Maximum Operating Temperature +90°C
Minimum Operating Temperature -40°C
Capacitance <1.5pF
On back order for despatch 15/02/2021, delivery within 3 working days
Price Each (In a Box of 1000)
Was HK$7.169
HK$ 6.612
(exc. GST)
units
Per unit
Per Box*
1000 +
HK$6.612
HK$6,612.00
*price indicative
