Bourns, 2031 185 V 1 kA, Surface Mount Gas Discharge Tube Gas Discharge Tube
- RS Stock No.:
- 181-4388
- Mfr. Part No.:
- 2031-23T-SM-RPLF
- Manufacturer:
- Bourns

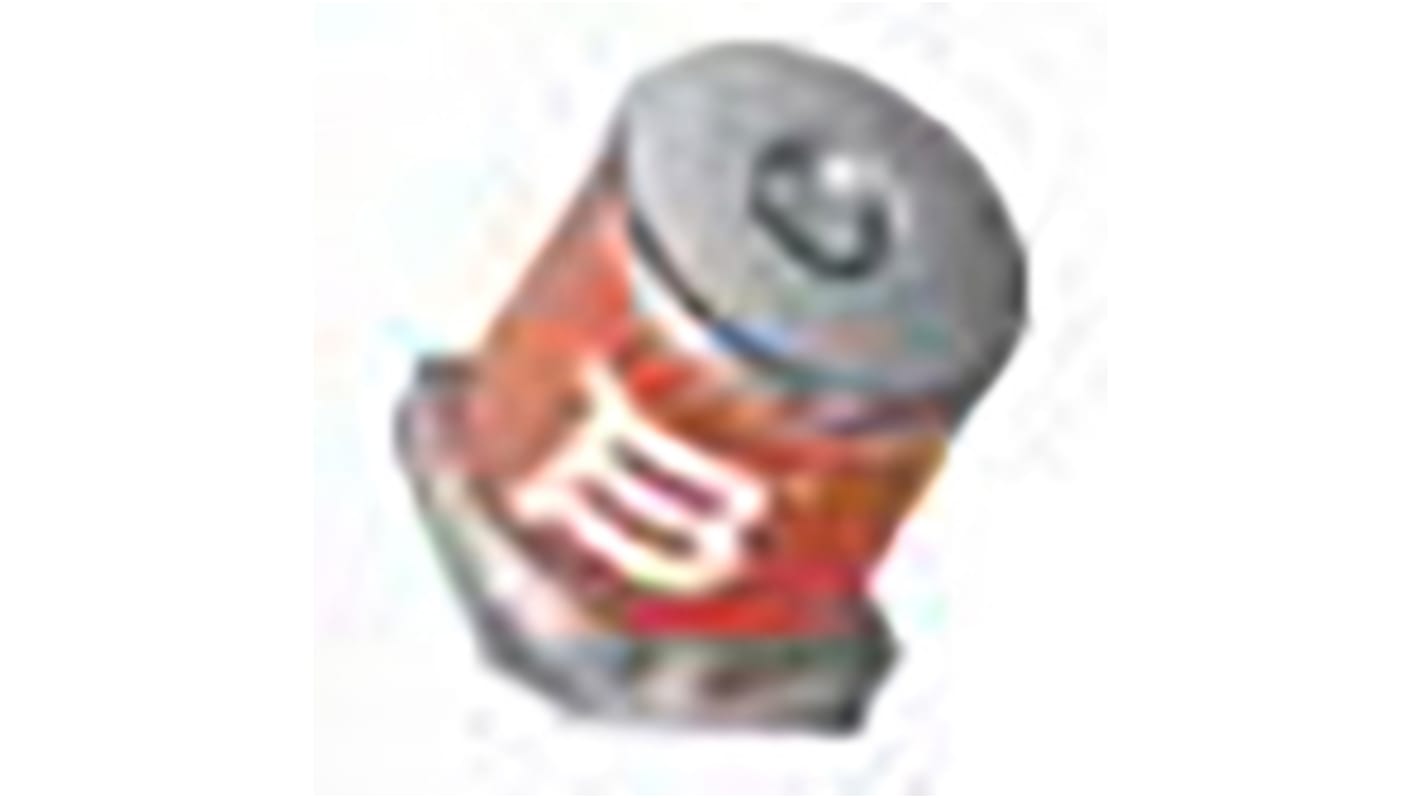

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 reel of 1500 units)*
HK$9,757.50
FREE delivery for orders over HK$250.00
In Stock
- 1,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 - 1500 | HK$6.505 | HK$9,757.50 |
| 3000 - 4500 | HK$6.375 | HK$9,562.50 |
| 6000 + | HK$6.248 | HK$9,372.00 |
*price indicative
- RS Stock No.:
- 181-4388
- Mfr. Part No.:
- 2031-23T-SM-RPLF
- Manufacturer:
- Bourns
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Series | 2031 | |
| Product Type | Gas Discharge Tube | |
| Suppressor Type | Gas Discharge Tube | |
| Maximum Surge Current | 1kA | |
| DC Spark Over Voltage | 185V | |
| Impulse Spark Over Voltage | 650V | |
| Maximum Voltage | 230V | |
| Mount Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Length | 4.4mm | |
| Maximum Operating Temperature | 90°C | |
| Depth | 5mm | |
| Standards/Approvals | IEEE C62.31, RoHS Directive 2002, 95, IEC 61643-311, EU, ITU-T K.12, RoHS Recast 2011, IEC 60068-1, UL, EC | |
| DC Holdover Voltage | 80V | |
| Capacitance | 1pF | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Series 2031 | ||
Product Type Gas Discharge Tube | ||
Suppressor Type Gas Discharge Tube | ||
Maximum Surge Current 1kA | ||
DC Spark Over Voltage 185V | ||
Impulse Spark Over Voltage 650V | ||
Maximum Voltage 230V | ||
Mount Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Length 4.4mm | ||
Maximum Operating Temperature 90°C | ||
Depth 5mm | ||
Standards/Approvals IEEE C62.31, RoHS Directive 2002, 95, IEC 61643-311, EU, ITU-T K.12, RoHS Recast 2011, IEC 60068-1, UL, EC | ||
DC Holdover Voltage 80V | ||
Capacitance 1pF | ||
Fast acting
Small size
Stable breakdown throughout life
Designed to operate with TBU® devices
Applications
Telecommunications
Industrial electronics
Avionics
