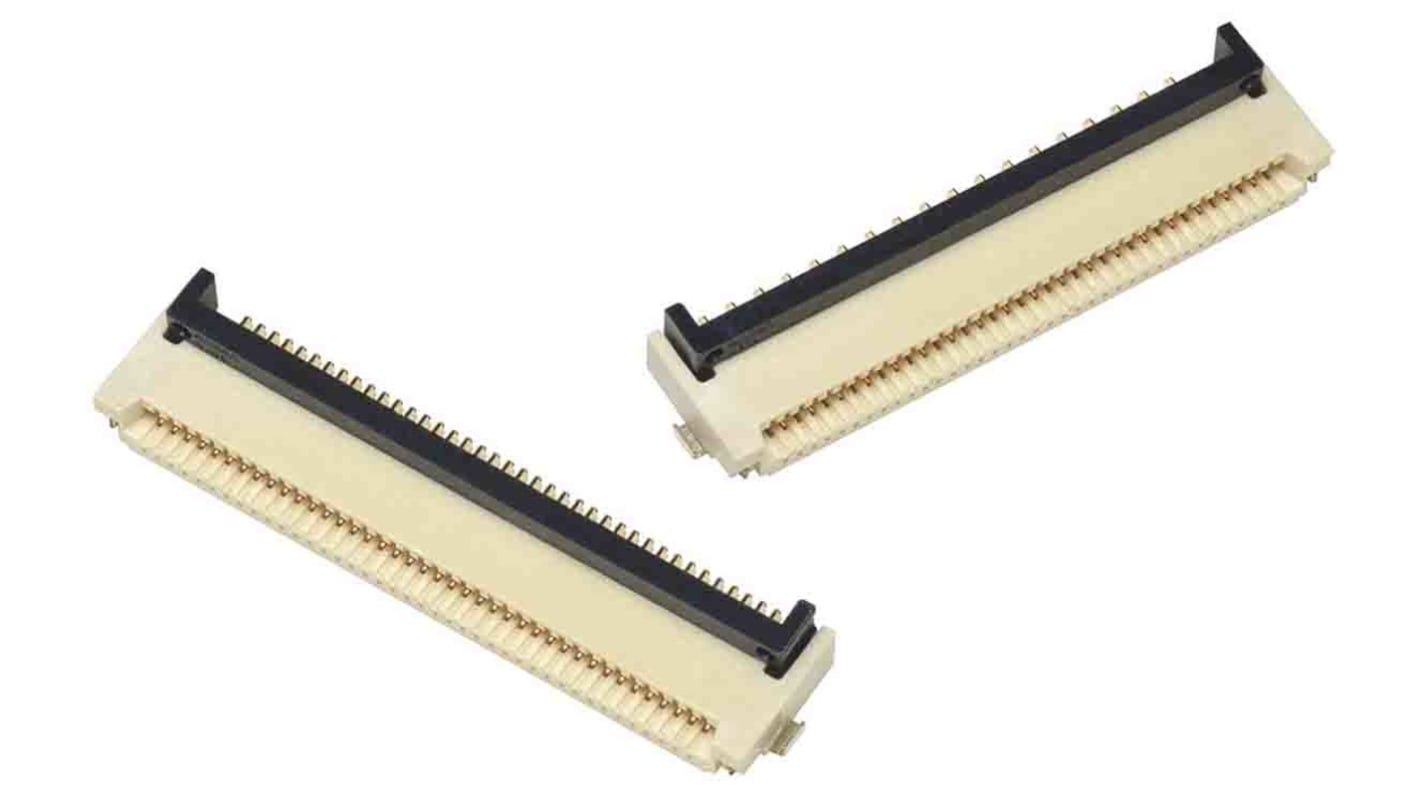

Omron, XF3M, XF3M 1mm Pitch 30 Way Horizontal Male FPC Connector, Top Contact
- RS Stock No.:
- 202-5005
- Mfr. Part No.:
- XF3M(1)-3015-1B-R100
- Manufacturer:
- Omron
View all FPC Connectors
On back order for despatch 28/09/2023, delivery within 3 working days
Price 1 Reel of 100
HK$2,951.76
| Reel(s) | Per Reel | Per unit* |
| 1 - 1 | HK$2,951.76 | HK$29.518 |
| 2 - 3 | HK$2,877.97 | HK$28.78 |
| 4 + | HK$2,833.69 | HK$28.337 |
| *price indicative | ||
- RS Stock No.:
- 202-5005
- Mfr. Part No.:
- XF3M(1)-3015-1B-R100
- Manufacturer:
- Omron
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
The XF3M rotary backlock connectors provide improved insertion of FPC/FFC Cables and helps to confirm proper connection with a sure Lock Feel.
Applicable FPC/FFC thickness of 0.3 mm.
Halogen Free- OMRON uses the following standard to determine halogen-free construction: 900 ppm max. for Br, 900 ppm max. for Cl, and 1,500 ppm max. for Br+Cl.
Halogen Free- OMRON uses the following standard to determine halogen-free construction: 900 ppm max. for Br, 900 ppm max. for Cl, and 1,500 ppm max. for Br+Cl.
Specifications
| Attribute | Value |
| Number of Contacts | 30 |
| Contact Material | Gold Plated |
| Pitch | 1mm |
| Mounting Type | Cable Mount |
| Gender | Male |
| Termination Type | Top Contact |
| Body Orientation | Horizontal |
| Series | XF3M |
| Series Number | XF3M |
